Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the actuator to the intermediate shaft bearing assembly.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the actuator assembly to intermediate shaft bearing assembly mounting bolts.

    Tighten

    Tighten the actuator assembly mounting bolts to 6 N.m (53 lb in).

    IMPORTANT: Do not nick or cut the inboard (oil pan) inner shaft seal.
  3. Install the intermediate shaft bearing assembly to the oil pan.

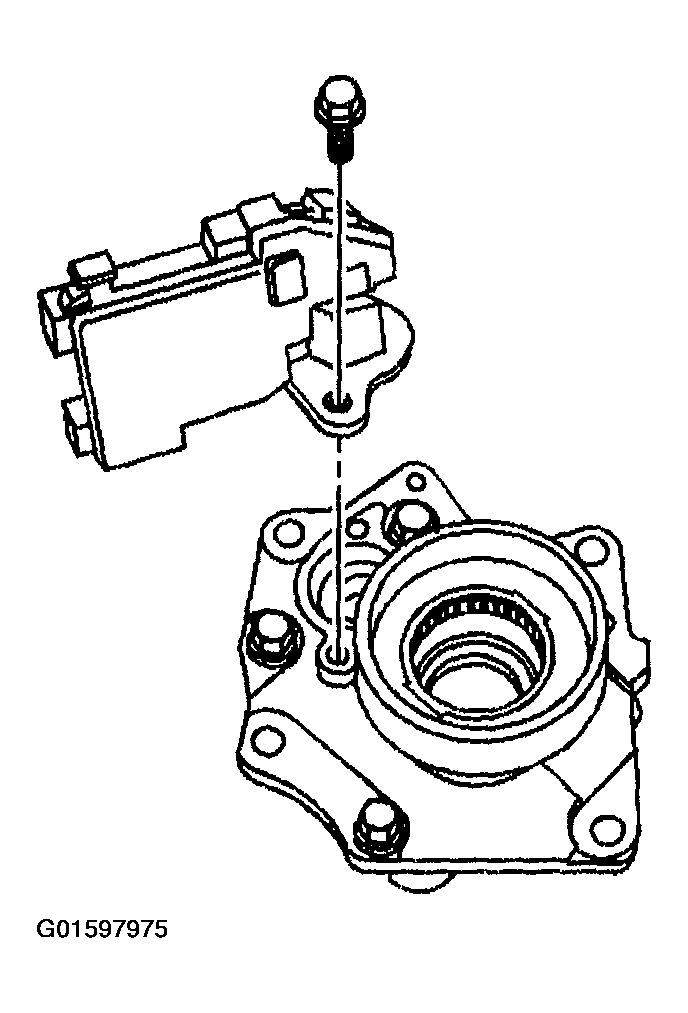

    Fig 1: Installing Actuator To Intermediate Shaft Bearing Assembly (S4WD)
    G01597975Courtesy of GENERAL MOTORS CORP.
  4. Install the intermediate shaft bearing assembly mounting bolts.

    Tighten

    Tighten the intermediate shaft bearing assembly mounting bolts to 48 N.m (35 lb ft).

  5. Install the wire harness clip.
  6. Connect the electrical connector.
  7. Install the right wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT  in Wheel Drive Shafts.
  8. Lower the vehicle.

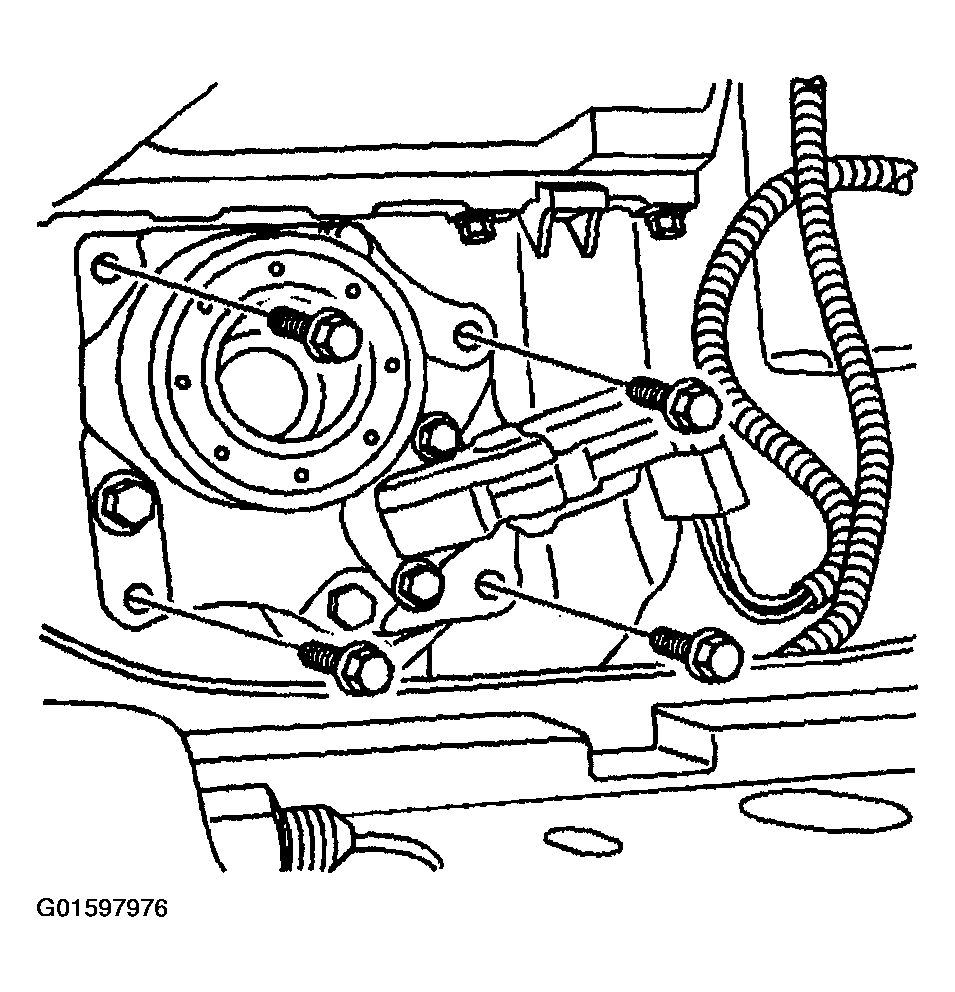

    Fig 2: Installing Intermediate Shaft Bearing Assembly Mounting Bolts (S4WD)
    G01597976Courtesy of GENERAL MOTORS CORP.
