Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the right wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT  in Wheel Drive Shafts.
  3. Remove the intermediate shaft bearing assembly mounting bolts.
  4. Remove the wire harness clip from the intermediate shaft bearing assembly.
    IMPORTANT: Do not nick or cut the inboard (oil pan) inner shaft seal.
  5. Remove the intermediate shaft bearing assembly.

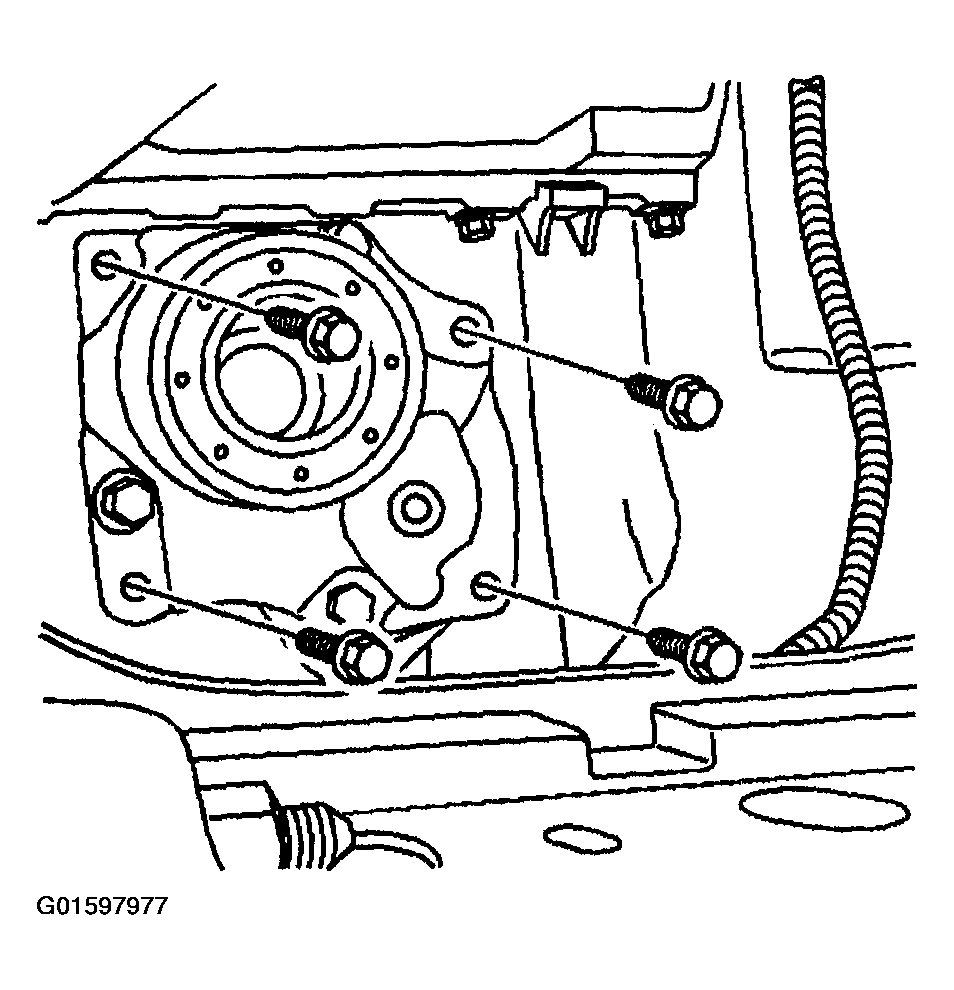

    Fig 1: Removing Intermediate Shaft Bearing Assembly Mounting Bolts (A4WD)
    G01597977Courtesy of GENERAL MOTORS CORP.
