Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Do not nick or cut the inboard (oil pan) inner shaft seal.
  • The intermediate shaft bearing assembly must fit flush against the oil pan in order for the inner axle shaft and the intermediate shaft bearing assembly to be properly installed.
  1. Install the intermediate shaft bearing assembly to the oil pan.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the intermediate shaft bearing assembly mounting bolts.

    Tighten

    Tighten the intermediate shaft bearing assembly bolts to 48 N.m (35 lb ft).

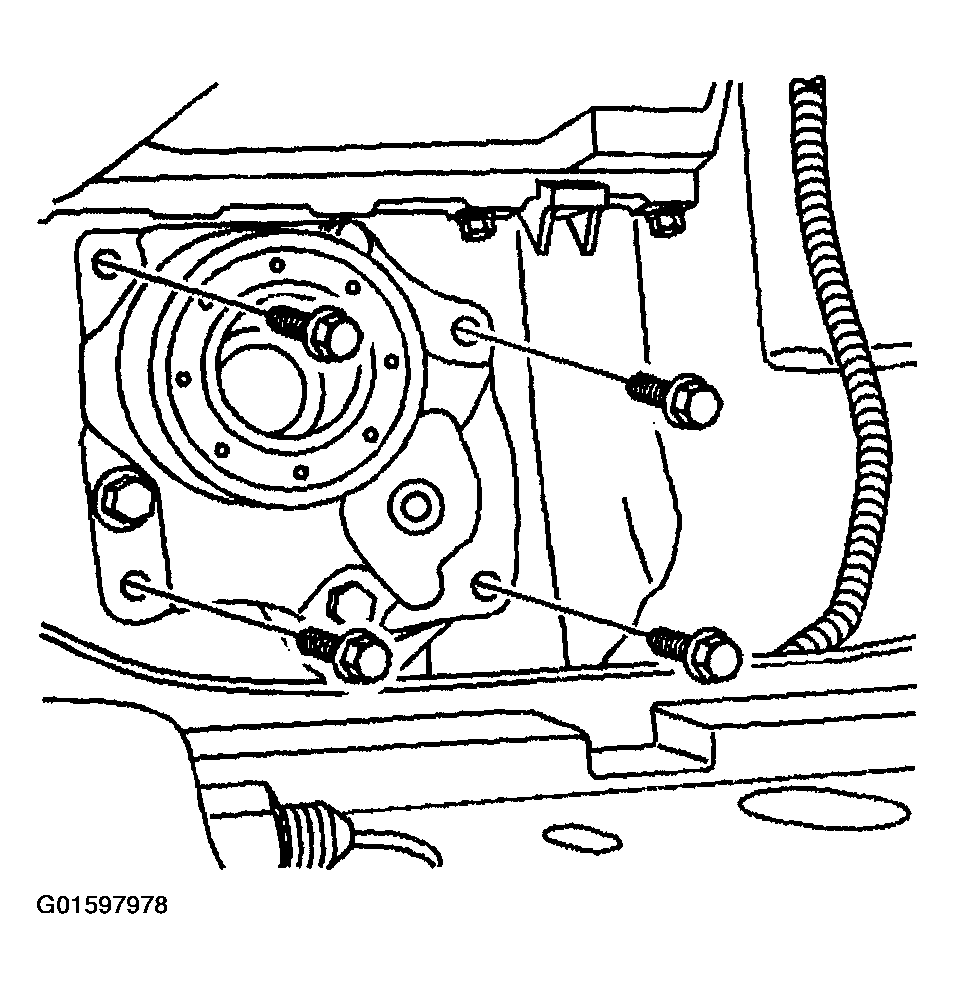

    Fig 1: Installing Intermediate Shaft Bearing Assembly Mounting Bolts (A4WD)
    G01597978Courtesy of GENERAL MOTORS CORP.
  3. Install the wire harness clip.
  4. Install the right wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT  in Wheel Drive Shafts.
  5. Lower the vehicle.
