Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Drain the lubricant from the differential carrier assembly. Refer to LUBRICANT REPLACEMENT - FRONT DRIVE AXLE   .
  3. Remove the intermediate shaft bearing assembly. Refer to INTERMEDIATE SHAFT BEARING ASSEMBLY REPLACEMENT - FRONT DRIVE AXLE (S4WD)   or INTERMEDIATE SHAFT BEARING ASSEMBLY REPLACEMENT - FRONT DRIVE AXLE (A4WD)   .
  4. Install the J 45104  to the J 6125-B.
  5. Install the J 45104  and the J 6125-B  into the threaded hole on the inner axle shaft.
    IMPORTANT: Do not nick or cut the inboard (oil pan) side differential carrier assembly oil seal.
  6. Remove the inner axle shaft using the J 6125-B  (1) and the J 45104  (2).

    Support the inner axle shaft as necessary to in order to pull the inner axle shaft from the differential carrier assembly and evenly through the oil pan.

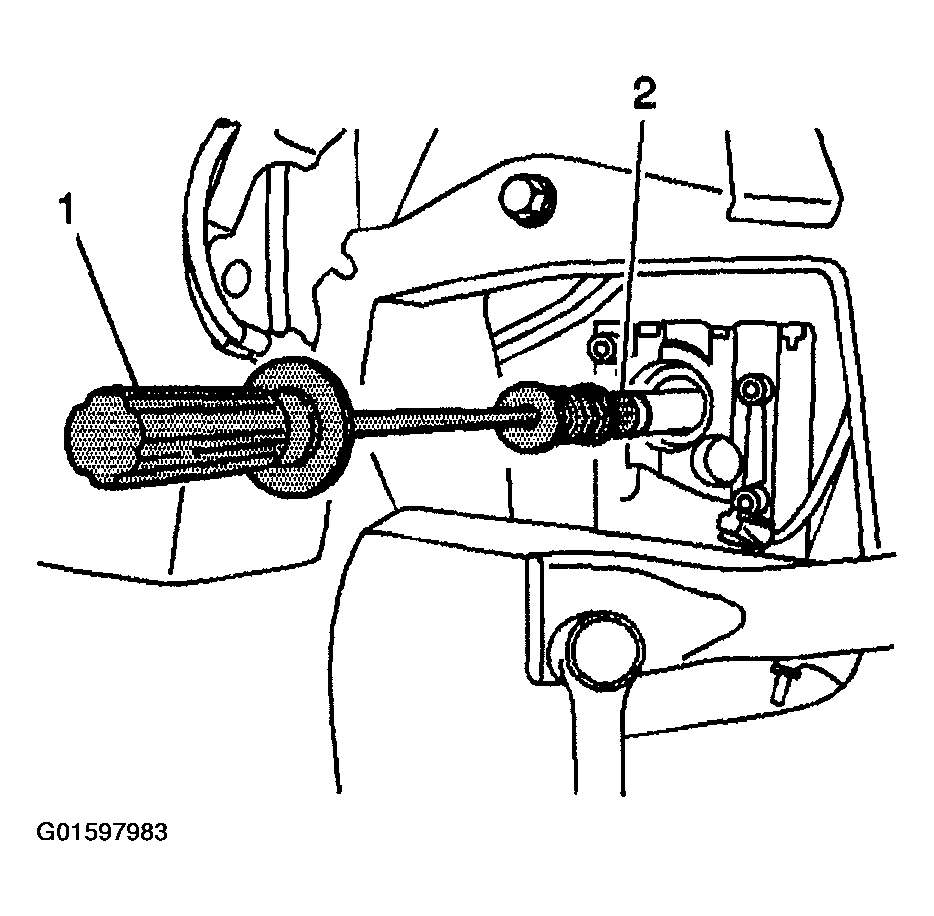

    Fig 1: Installing J 6125(1) And J 45104(2) Into Threaded Hole On Inner Axle Shaft
    G01597983Courtesy of GENERAL MOTORS CORP.
