High Flank Contact Pattern: Correction

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

Increase the pinion depth. Move the pinion gear closer to the ring gear by increasing the pinion shim thickness. Refer to PINION DEPTH ADJUSTMENT .

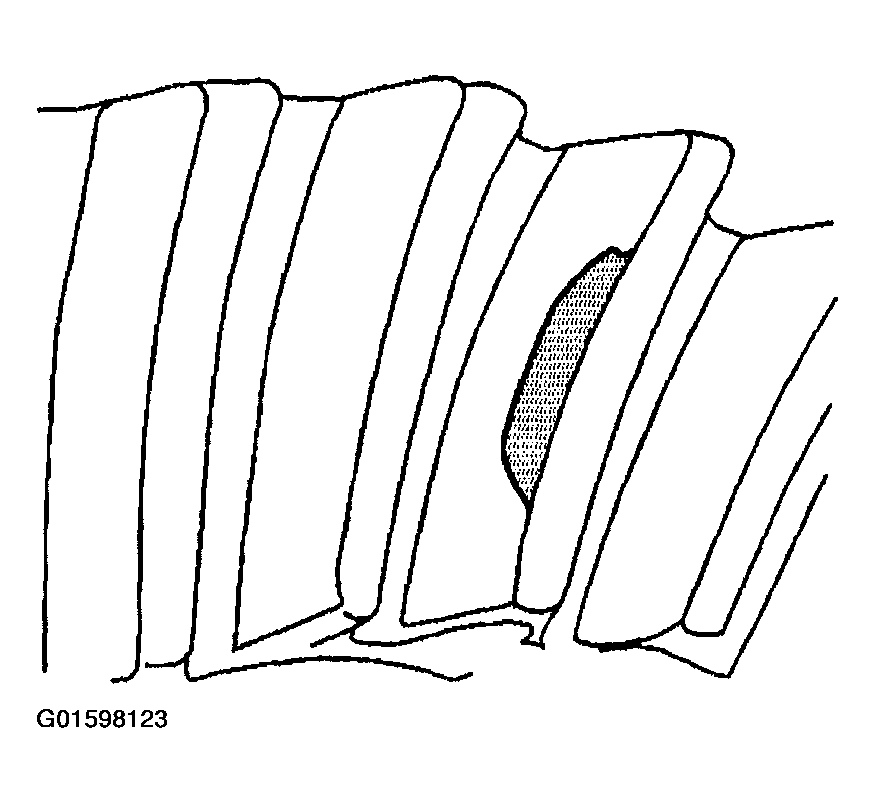

Fig 1: Identifying High Flank Contact Pattern

Courtesy of GENERAL MOTORS CORP.
