Adjustments Affecting Tooth Contact: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

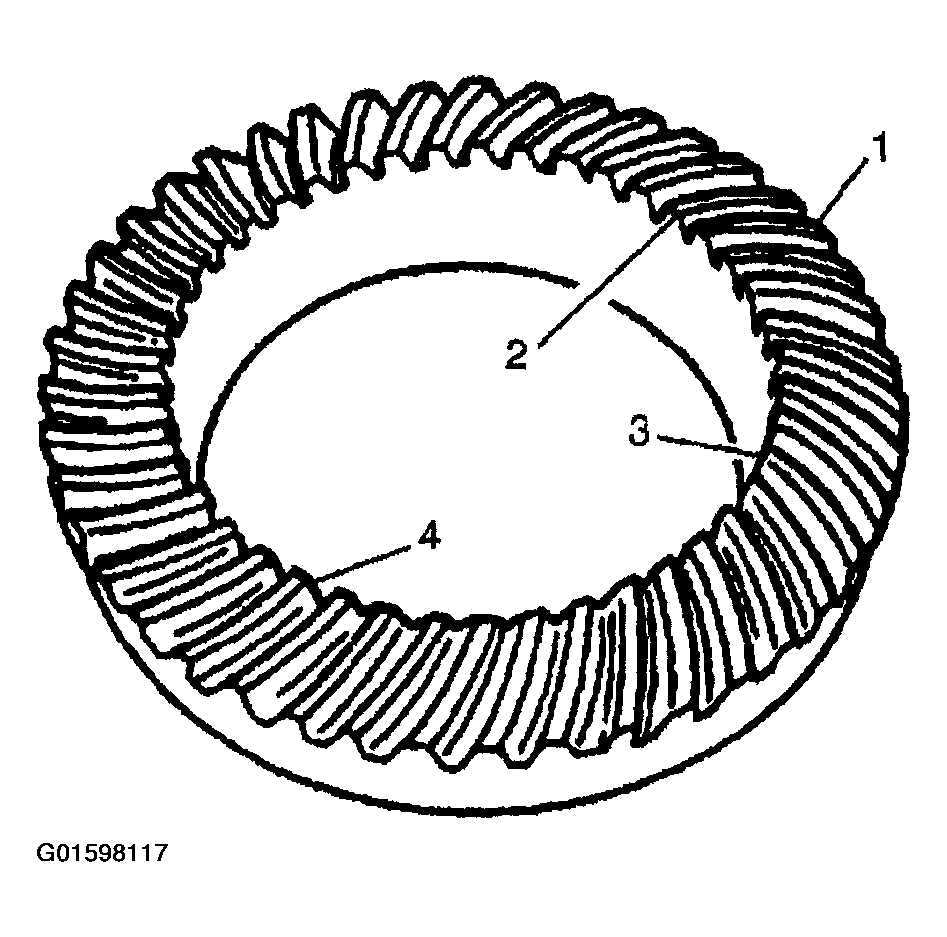

The following two adjustments affect the tooth contact pattern:
- Backlash adjustment
- Pinion depth adjustment
The effects of bearing preloads are not readily apparent on hand-loaded tooth contact pattern tests.
However, bearing preloads should be within specifications before proceeding with backlash and pinion depth adjustments.
