Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 29369-1  (2) and the J 2619-01  (1) to the inboard or oil pan side seal as shown.
  2. Remove the seal by pulling on the J 2619-01  (1).
  3. Install the J 29369-2  and the J 2619-01  to the outboard or wheel drive shaft side seal.
  4. Remove the seal by pulling on the J 2619-01.
    Fig 1: Installing J 29369-1 (2) And J 2619-01 (1)
    G01598045Courtesy of GENERAL MOTORS CORP.

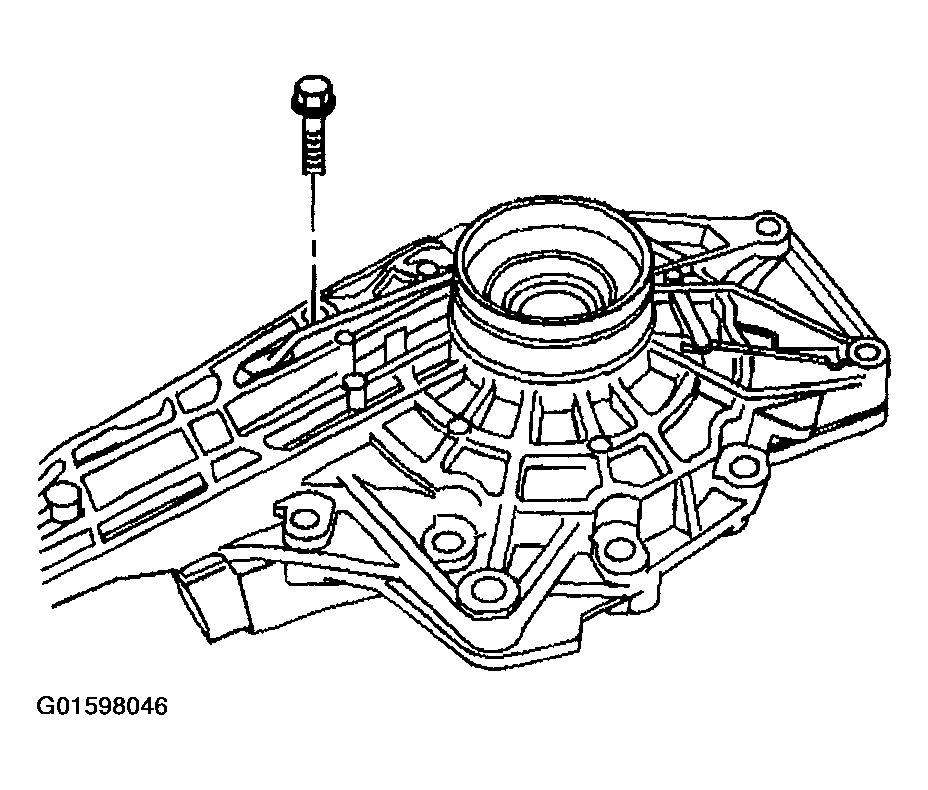

  5. Remove the differential carrier case half bolts.
  6. Separate the differential carrier case assembly case halves.
    Fig 2: Removing Differential Carrier Case Half Bolts
    G01598046Courtesy of GENERAL MOTORS CORP.
  7. Remove the differential case assembly.

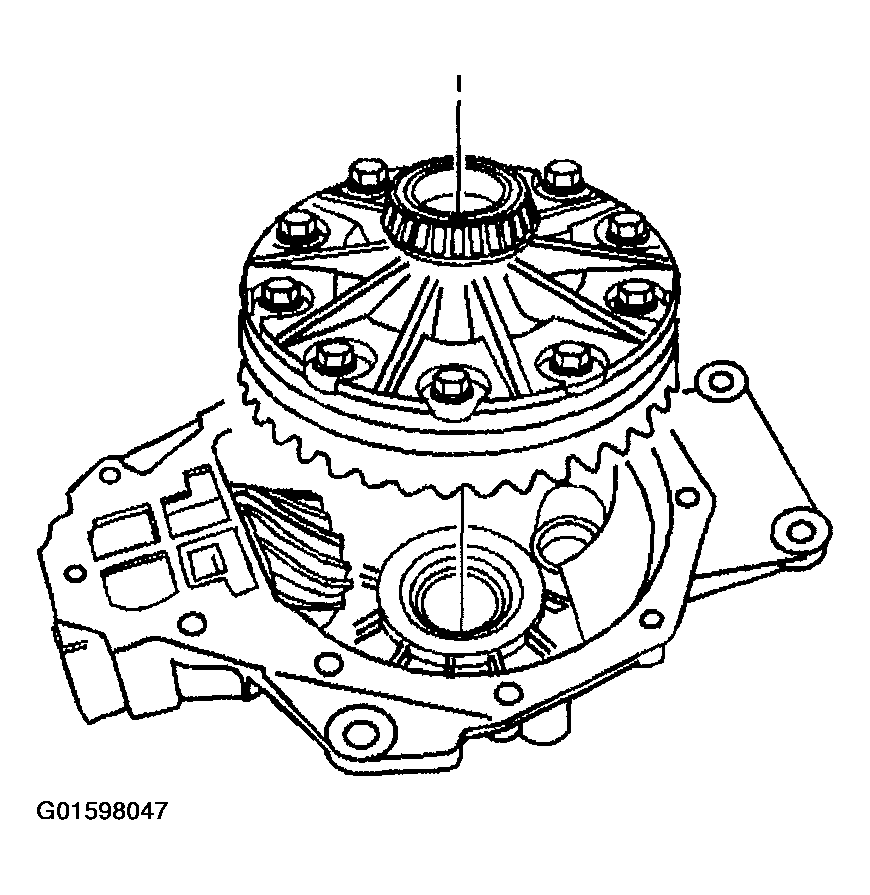

    Fig 3: Removing Differential Case Assembly
    G01598047Courtesy of GENERAL MOTORS CORP.

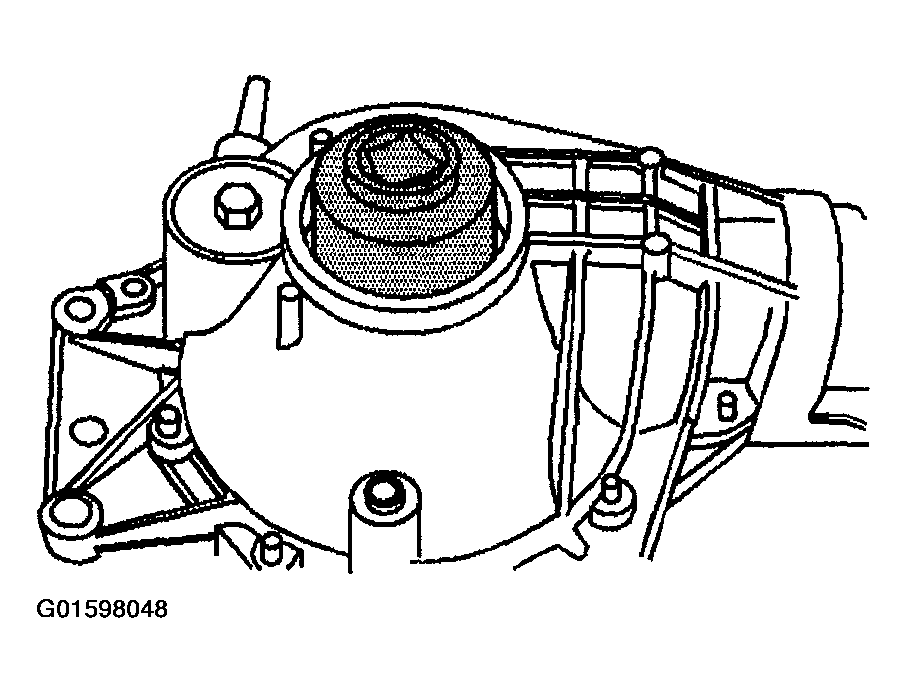

  8. Install the J 42213  to the left side differential bearing adjuster.
    Fig 4: Installing J 42213
    G01598048Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The differential bearing adjusters are not interchangeable. Mark the adjusters accordingly.

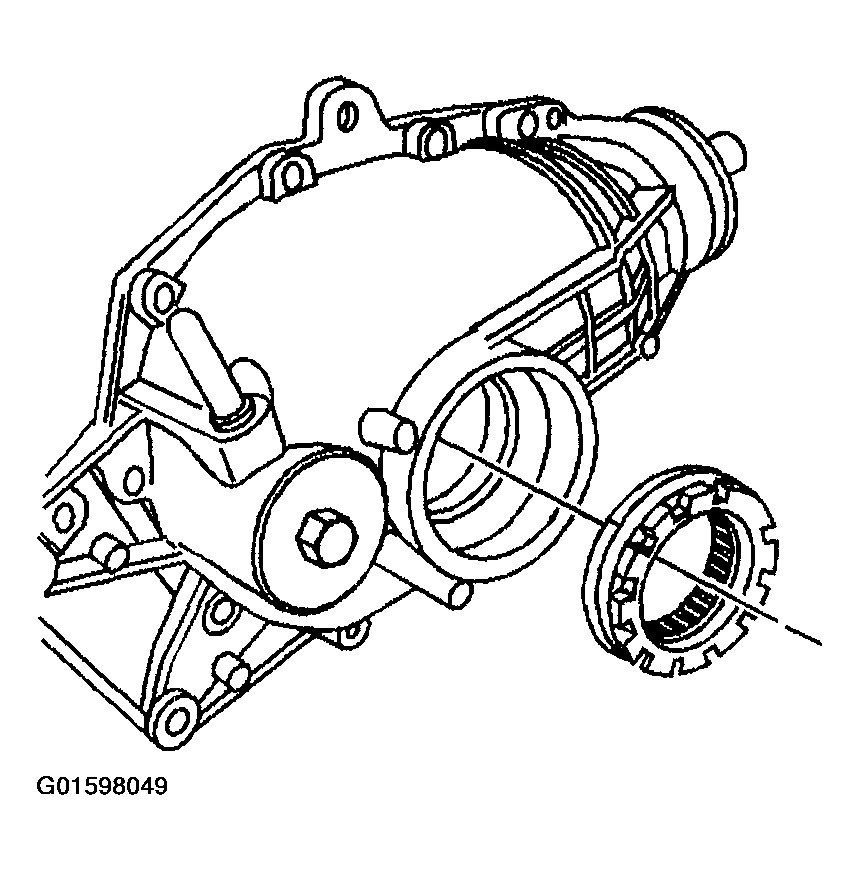

  9. Remove the left side differential bearing adjuster using the J 42213.

    Mark the adjuster.

    Fig 5: Removing Left Side Differential Bearing Adjuster
    G01598049Courtesy of GENERAL MOTORS CORP.
  10. Remove the left side differential bearing cup.
  11. Install the J 45224  to the right side differential bearing adjuster.

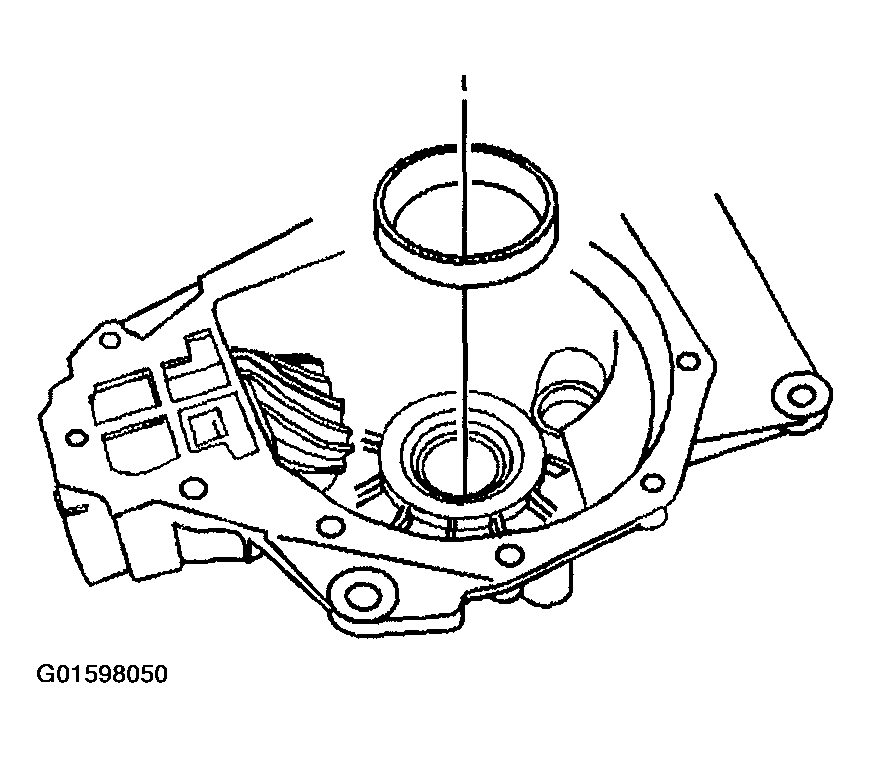

    Fig 6: Removing Left Side Differential Bearing Cup
    G01598050Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The differential bearing adjusters are not interchangeable. Mark the adjusters accordingly.
  12. Remove the right side differential bearing adjuster using the J 45224.

    Mark the adjuster.

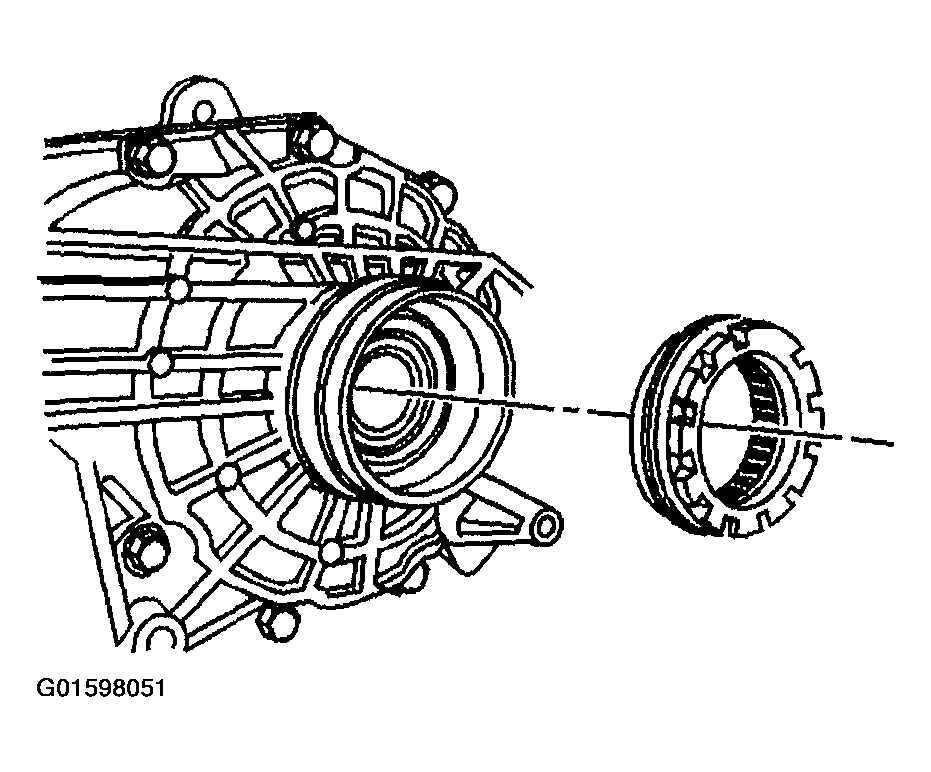

    Fig 7: Removing Right Side Differential Bearing Adjuster
    G01598051Courtesy of GENERAL MOTORS CORP.

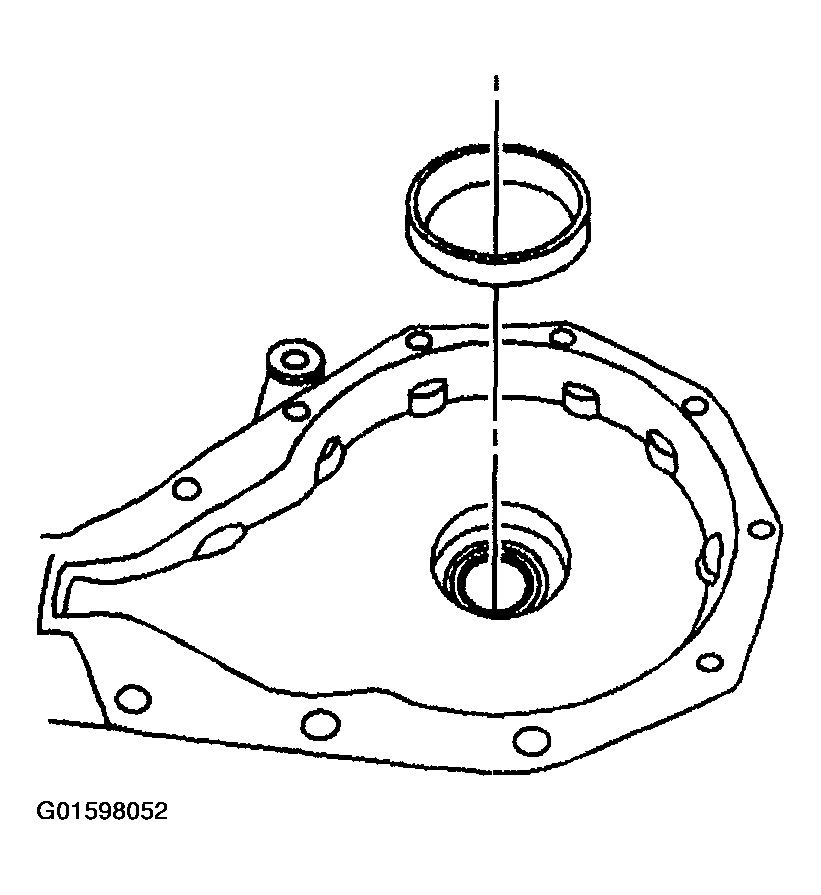

  13. Remove the right side differential bearing cup.
    Fig 8: Removing Right Side Differential Bearing Cup
    G01598052Courtesy of GENERAL MOTORS CORP.
  14. Measure the rotating torque of the drive pinion using an inch-pound torque wrench.

    Record the measurement.

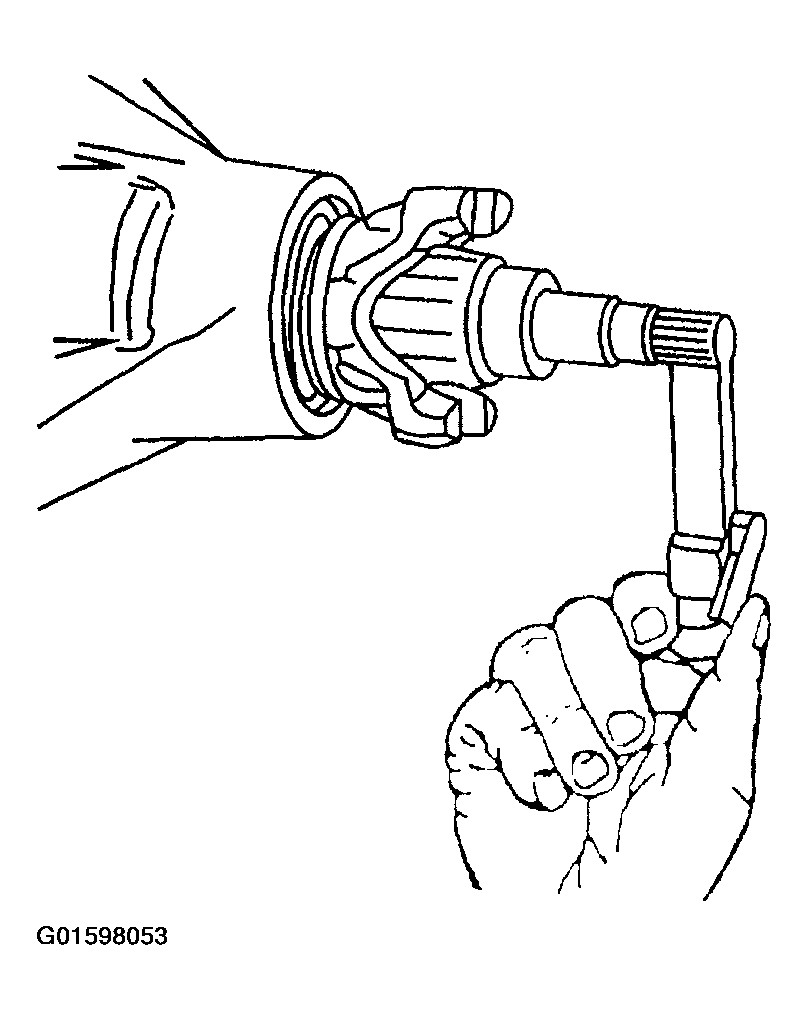

    Fig 9: >Measuring Rotating Torque Using Inch-Pound Torque Wrench
    G01598053Courtesy of GENERAL MOTORS CORP.
  15. Install the J 8614-01  to the pinion yoke as shown.
  16. Remove the pinion nut while holding the J 8614-01.

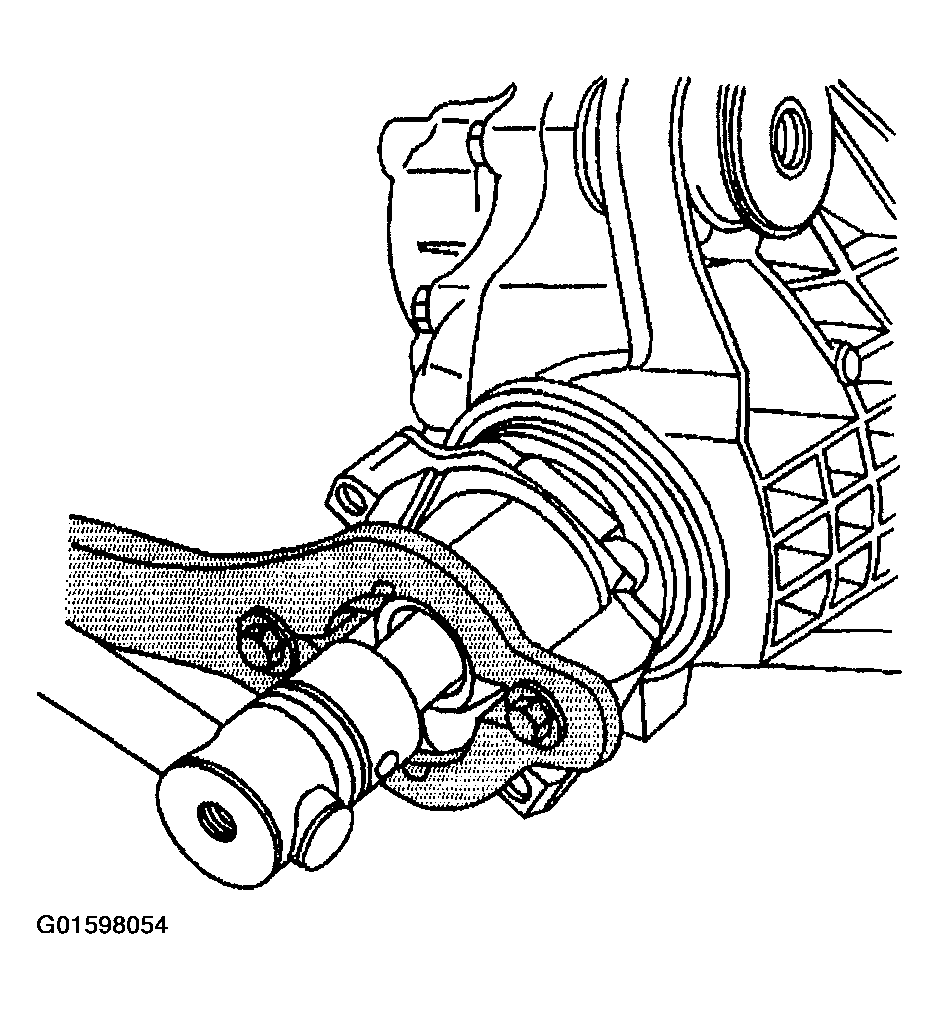

    Fig 10: Installing J 8614-01
    G01598054Courtesy of GENERAL MOTORS CORP.

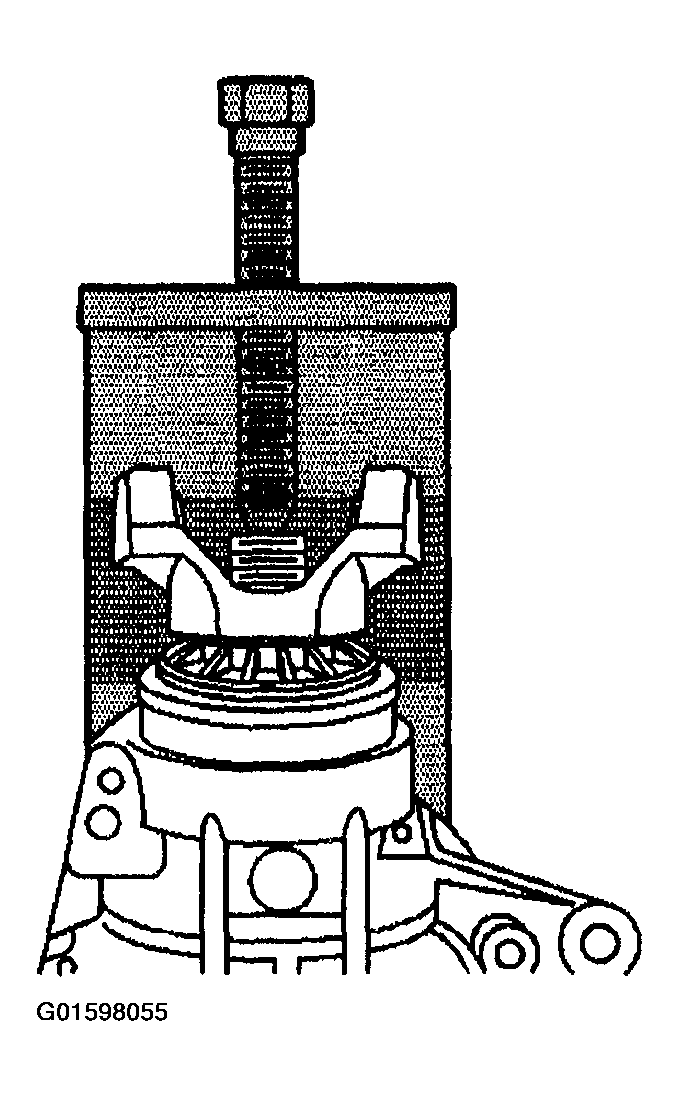

  17. Install the J 45234  to the left differential carrier assembly case half as shown.
  18. Remove the pinion yoke, the washer, and the drive pinion by turning the screw of the J 45234  clockwise.
    Fig 11: Installing J 45234 To Left Differential Carrier Assembly Case
    G01598055Courtesy of GENERAL MOTORS CORP.
  19. Remove the dust deflector from the pinion yoke with a soft-faced hammer.
    IMPORTANT: Carefully pry the seal from the bore. Do not distort or scratch the aluminum case.
  20. Remove the pinion oil seal using a suitable seal remover tool.
  21. Remove the outer pinion bearing.
    Fig 12: Removing Pinion Oil Seal Using Seal Remover Tool
    G01598056Courtesy of GENERAL MOTORS CORP.

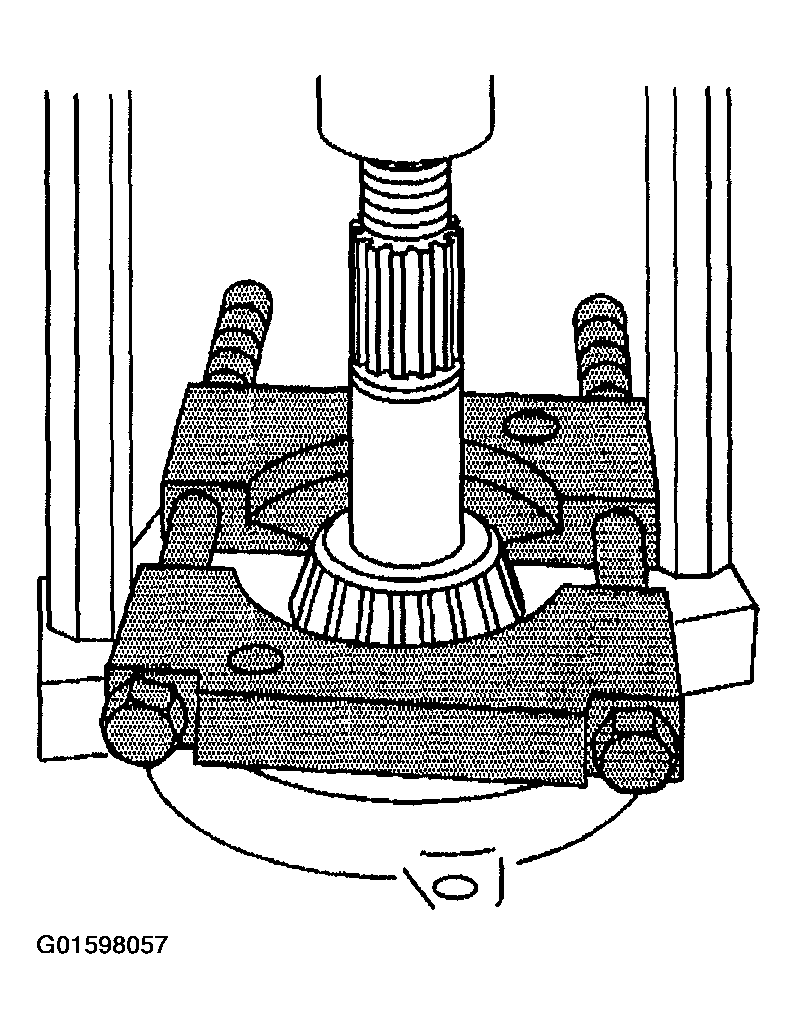

  22. Install the J 22912-O1  between the pinion bearing and the pinion gear as shown.
  23. Remove the inner pinion bearing using the J 22912-O1  and a hydraulic press.
  24. Remove the pinion gear selectable shim.
    Fig 13: Installing J 22912-O1
    G01598057Courtesy of GENERAL MOTORS CORP.

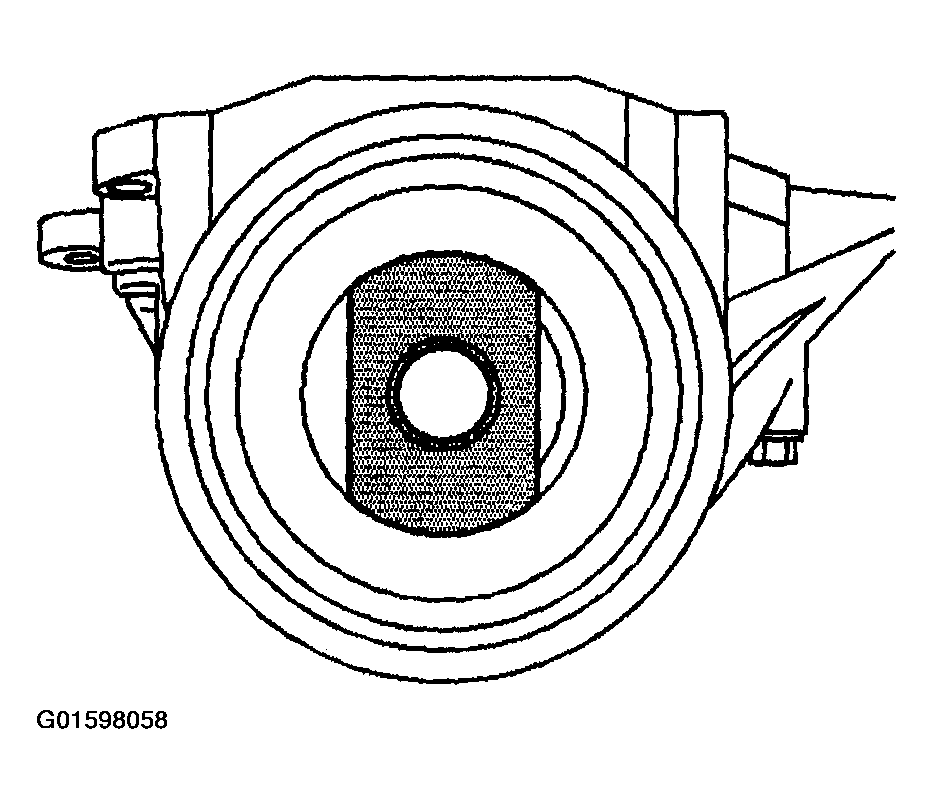

  25. Install the J 45228-4 to the outer pinion bearing cup as shown.
    Fig 14: Installing J 45228-4 To Outer Pinion Bearing Cup
    G01598058Courtesy of GENERAL MOTORS CORP.
  26. Install the J 45228-1 (2) and the J 45228-5 (1) to the J 45228-4.

    Seat the ridge of the J 45228-1 (2) into the outer pinion bearing cup bore.

  27. Remove the outer pinion bearing cup by turning the J 45228-5 (1) clockwise.

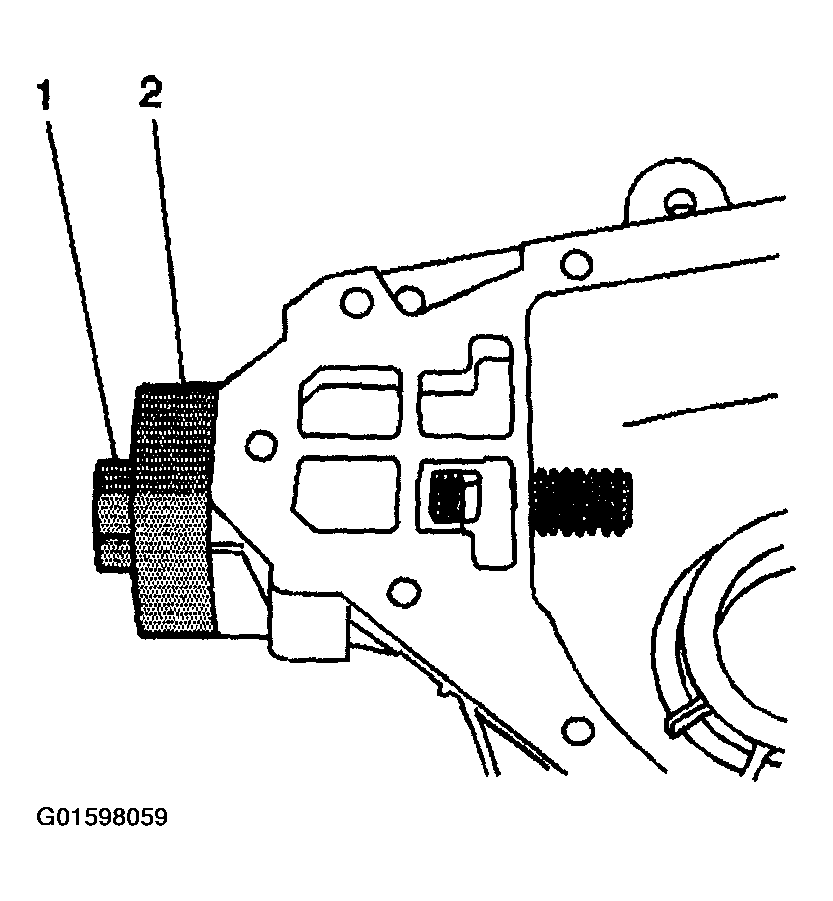

    Fig 15: Installing J 45228-1 (2) And J 45228-5 (1)
    G01598059Courtesy of GENERAL MOTORS CORP.

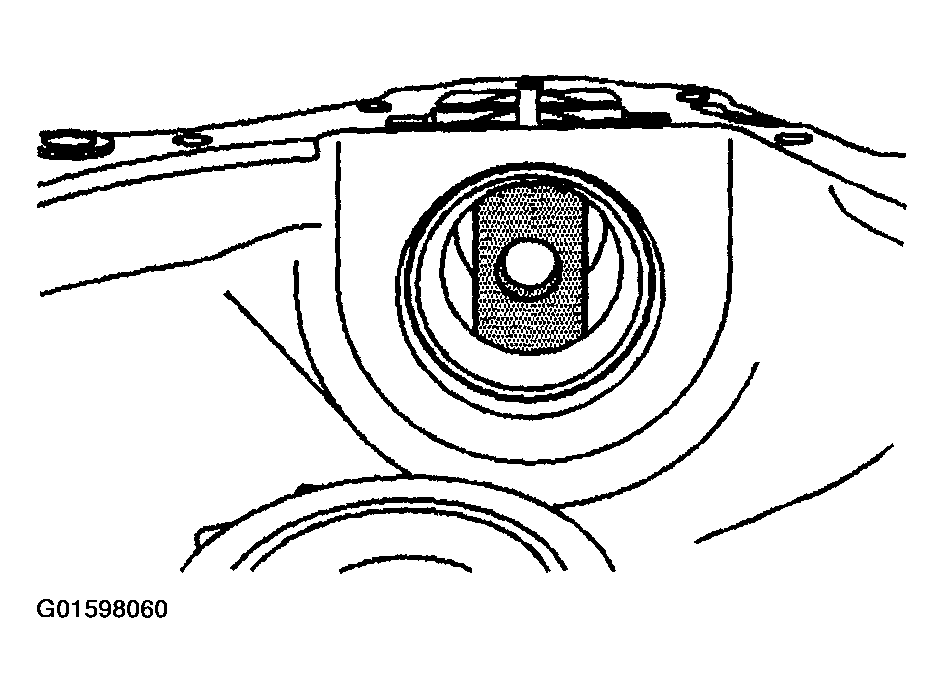

  28. Install the J 45228-4 to the inner pinion bearing cup as shown.
    Fig 16: Installing J 45228-4
    G01598060Courtesy of GENERAL MOTORS CORP.
  29. Install the J 45228-1 (1) and the J 45228-5 (2) to the J 45228-4.
  30. Remove the outer pinion bearing cup by turning the J 45228-5 (2) clockwise.

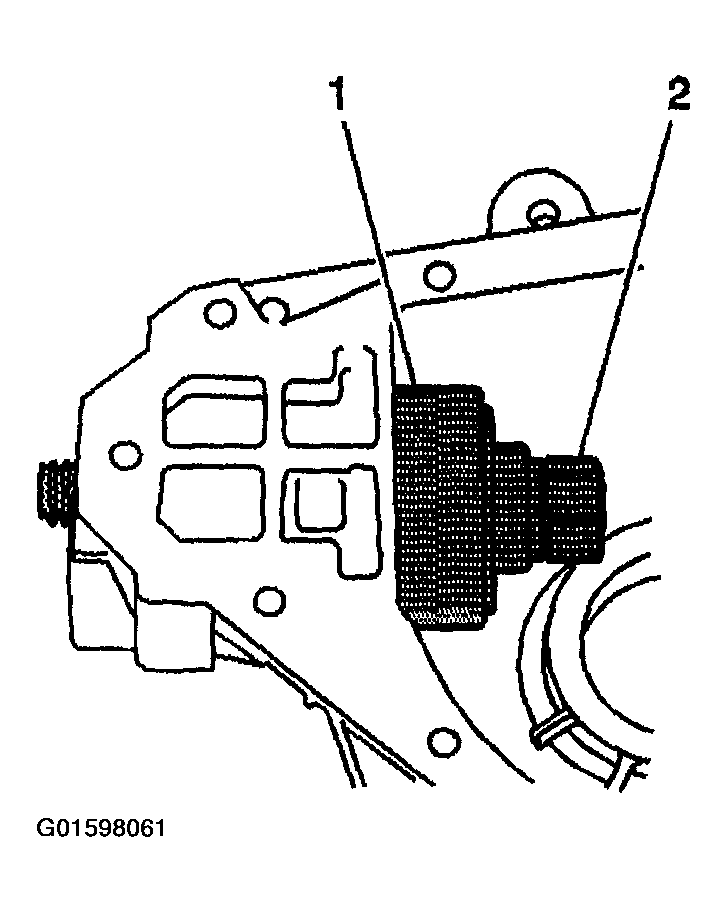

    Fig 17: Installing J 45228-1 (1) And J 45228-5 (2)
    G01598061Courtesy of GENERAL MOTORS CORP.
