Differential Carrier Assembly - Assemble: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
- J 33782 Pinion Oil Seal Installer

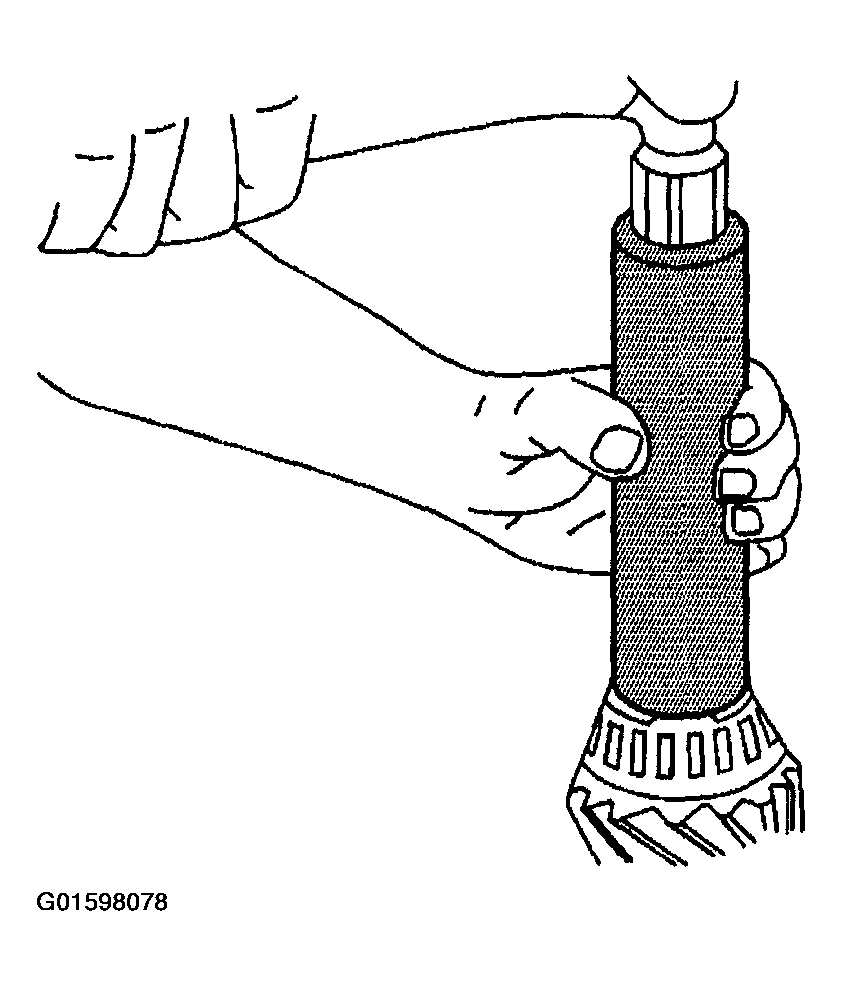

- J 33785 Pinion Bearing Installer
- J 42213 Adjuster Sleeve Socket
- J 45224 Side Bearing Adjuster
- J 45232 Differential Bearing Adjuster Needle Bearing Installer - LH
- J 45233 Differential Bearing Adjuster Needle Bearing Installer - RH
- J 8092 Universal Driver Handle- 3/4 in - 10
- J 8614-01 Flange and Pulley Holding Tool
