Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Disconnect the electrical connector from the actuator assembly.
  3. Remove the actuator assembly bolts.
  4. Remove the actuator assembly.

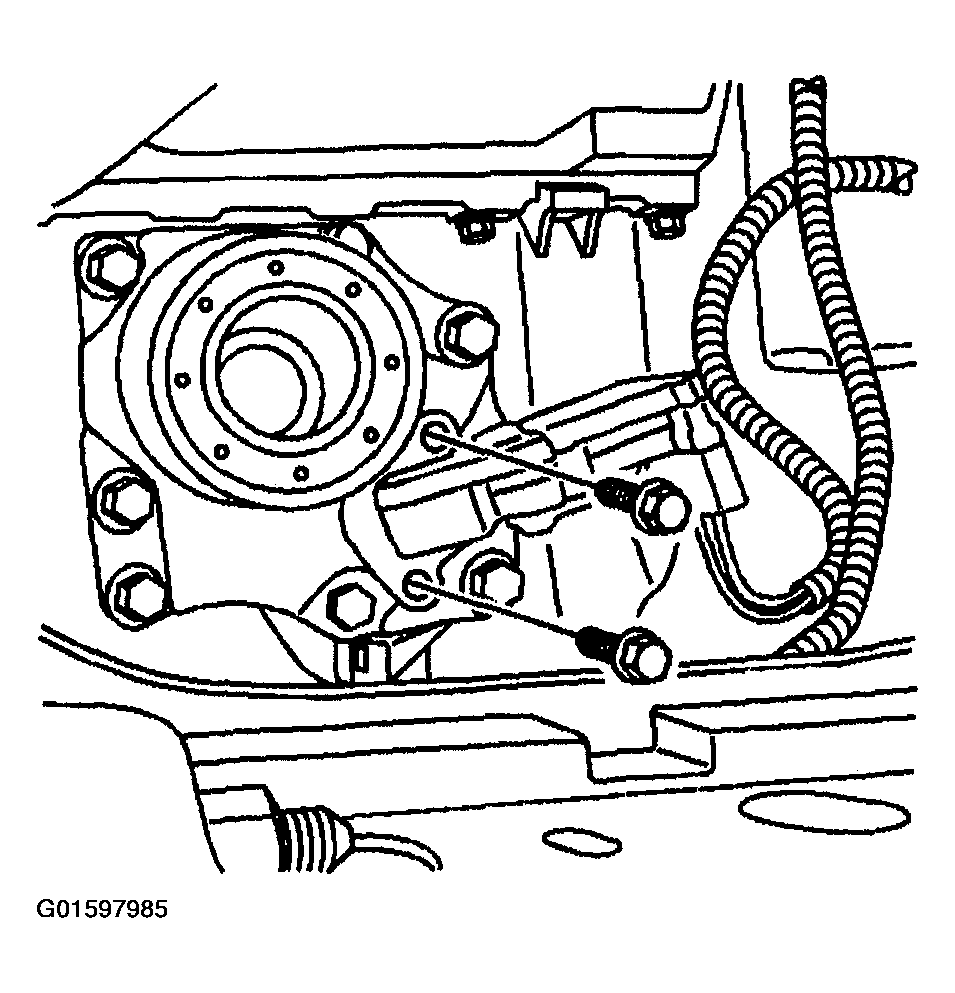

    Fig 1: Removing Actuator Assembly Bolts
    G01597985Courtesy of GENERAL MOTORS CORP.
