Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the actuator assembly.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the actuator assembly bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Connect the electrical connector to the actuator assembly.
  4. Lower the vehicle.

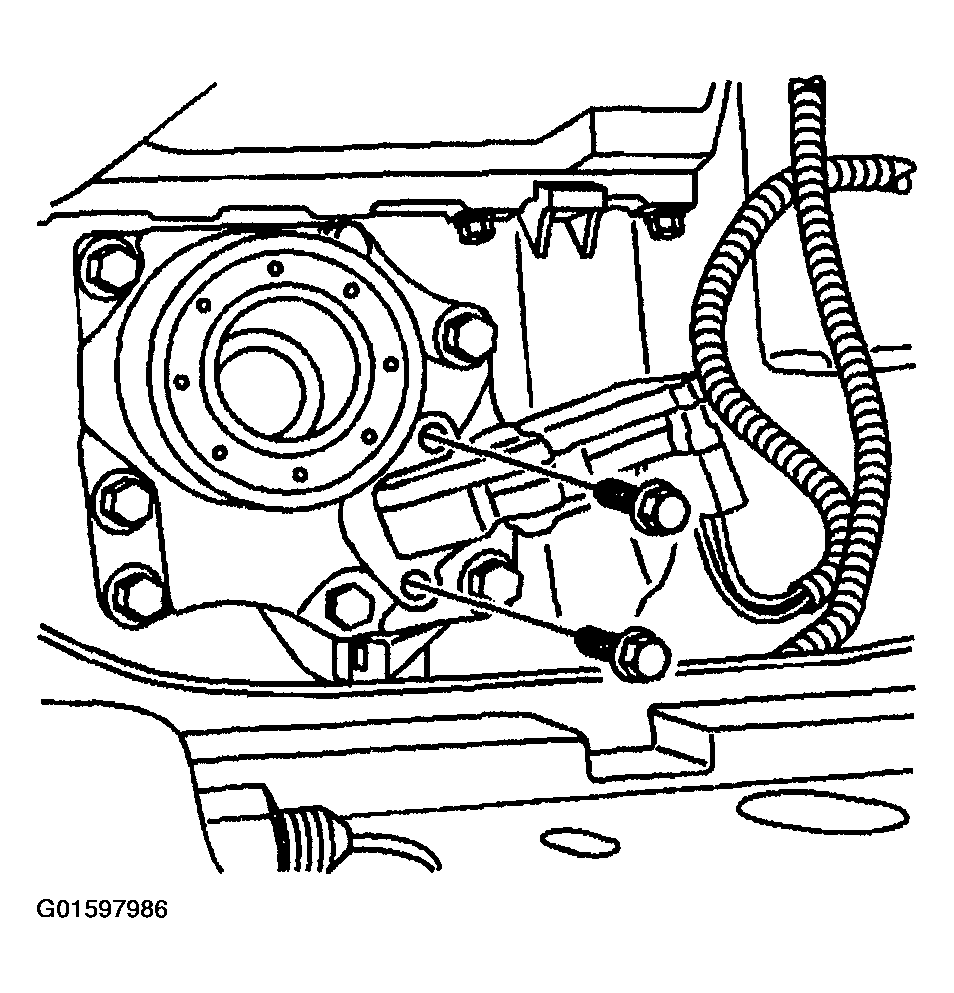

    Fig 1: Installing Actuator Assembly Bolts
    G01597986Courtesy of GENERAL MOTORS CORP.
