Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Disconnect the inflator air switch harness from the air compressor.
  3. Lower the vehicle.
  4. Remove the rear quarter lower trim panel. Refer to INTERIOR TRIM  or INTERIOR TRIM  ,  or to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.

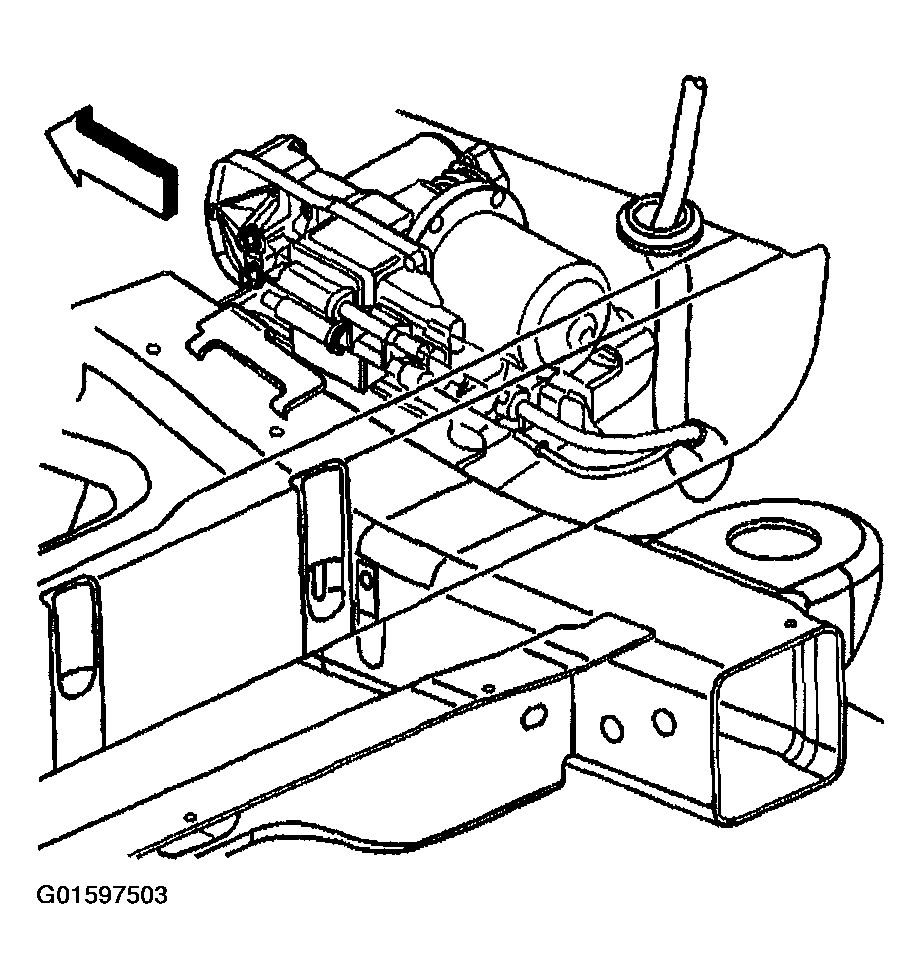

    Fig 1: Disconnecting Inflator Air Switch Harness From Air Compressor
    G01597503Courtesy of GENERAL MOTORS CORP.
  5. Remove the inflator air switch from the vehicle.
