Diagnostic System Check - Air Suspension: Overview

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

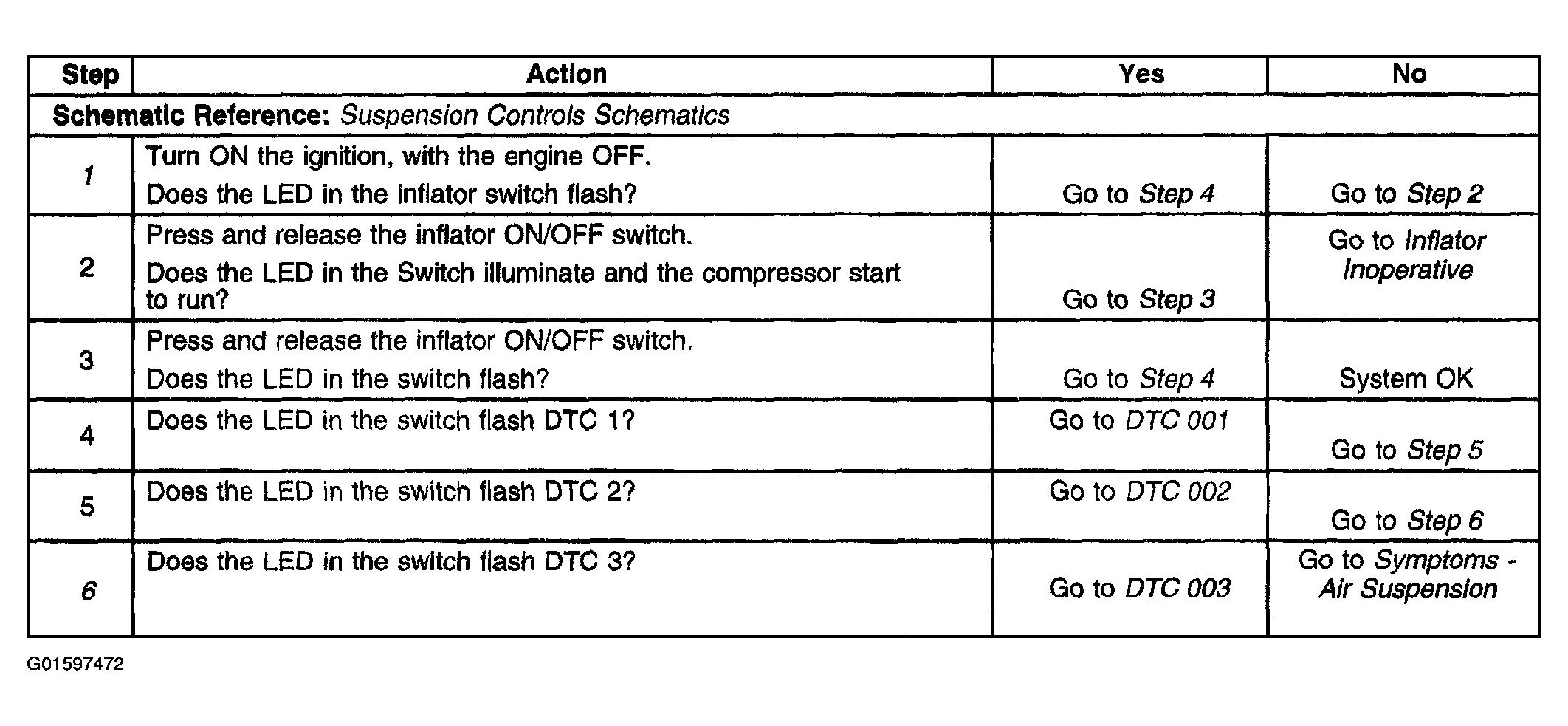

Fig 1: Diagnostic System Check Chart - Air Suspension
G01597472Courtesy of GENERAL MOTORS CORP.
