Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle with safety stands.
  2. Remove the wheel hub cap, if equipped.
  3. Remove the wheel nuts. Mark the location of the tire and wheel assembly to the hub assembly.
  4. Remove the tire and wheel assembly.
  5. Clean the wheel nuts, studs, and the wheel and rotor mounting surfaces.

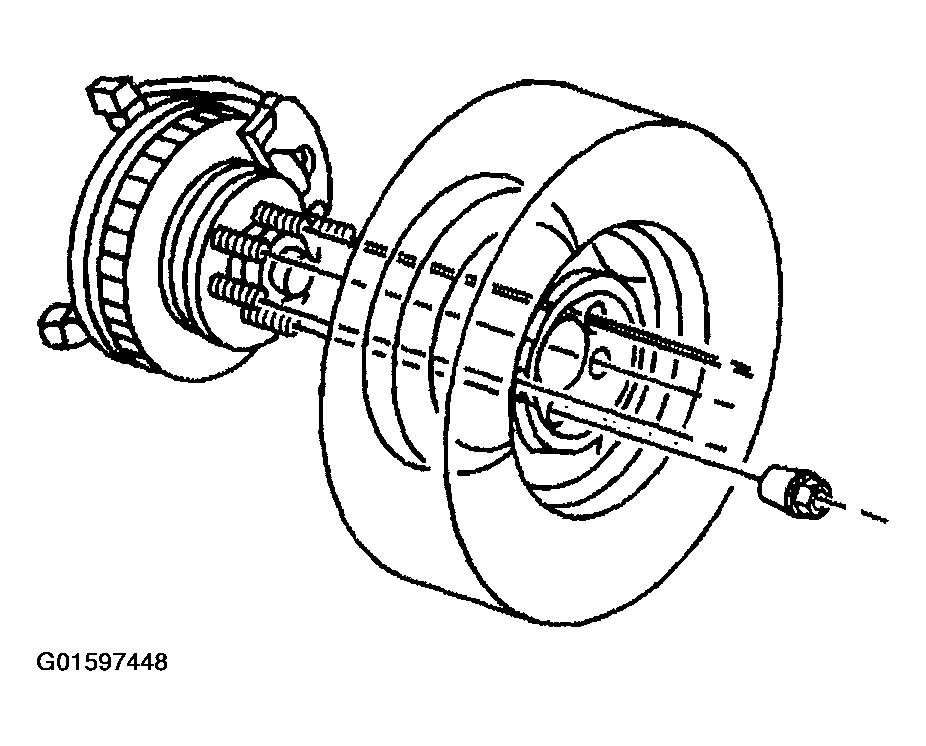

    Fig 1: Removing Tire And Wheel Assembly
    G01597448Courtesy of GENERAL MOTORS CORP.
