Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the spare wheel hoist assembly to the vehicle.
  2. Install spare wheel hoist assembly mounting bolts to the frame

    Tighten

    Tighten the spare wheel hoist assembly mounting bolts to the frame to 50 N.m (37 lb in).

  3. Install the spare tire to the spare tire carrier.
  4. Lower the vehicle.

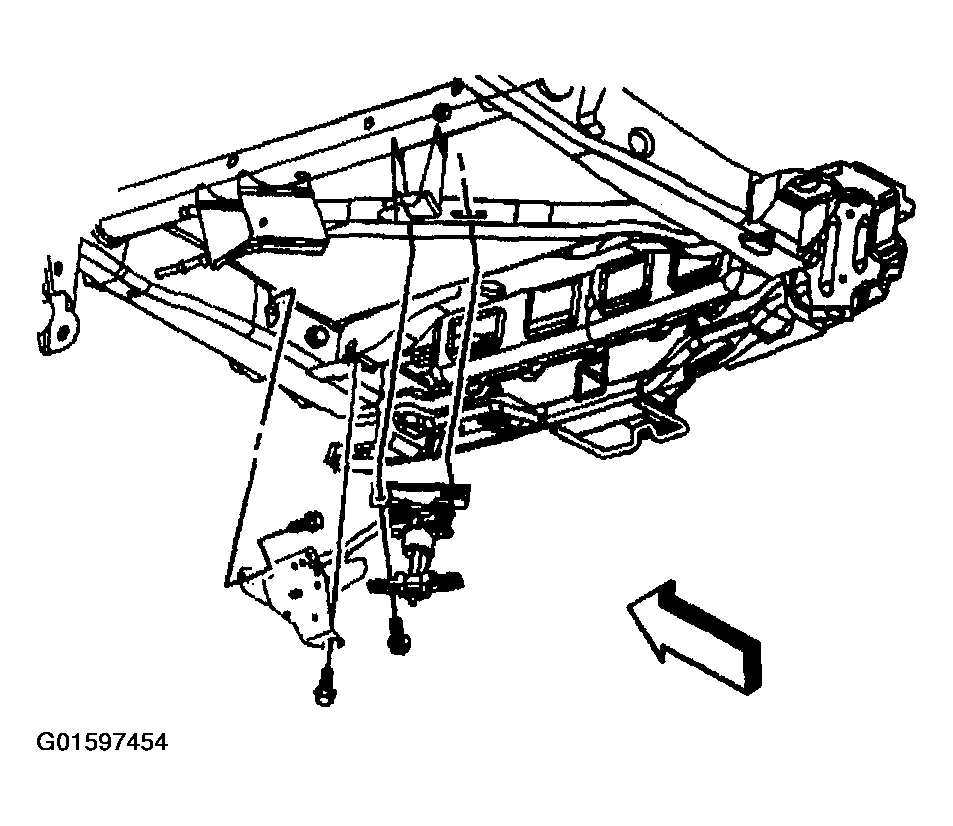

    Fig 1: Installing Spare Wheel Hoist Assembly To Vehicle
    G01597454Courtesy of GENERAL MOTORS CORP.
