Radial Tire Lead/Pull Correction

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

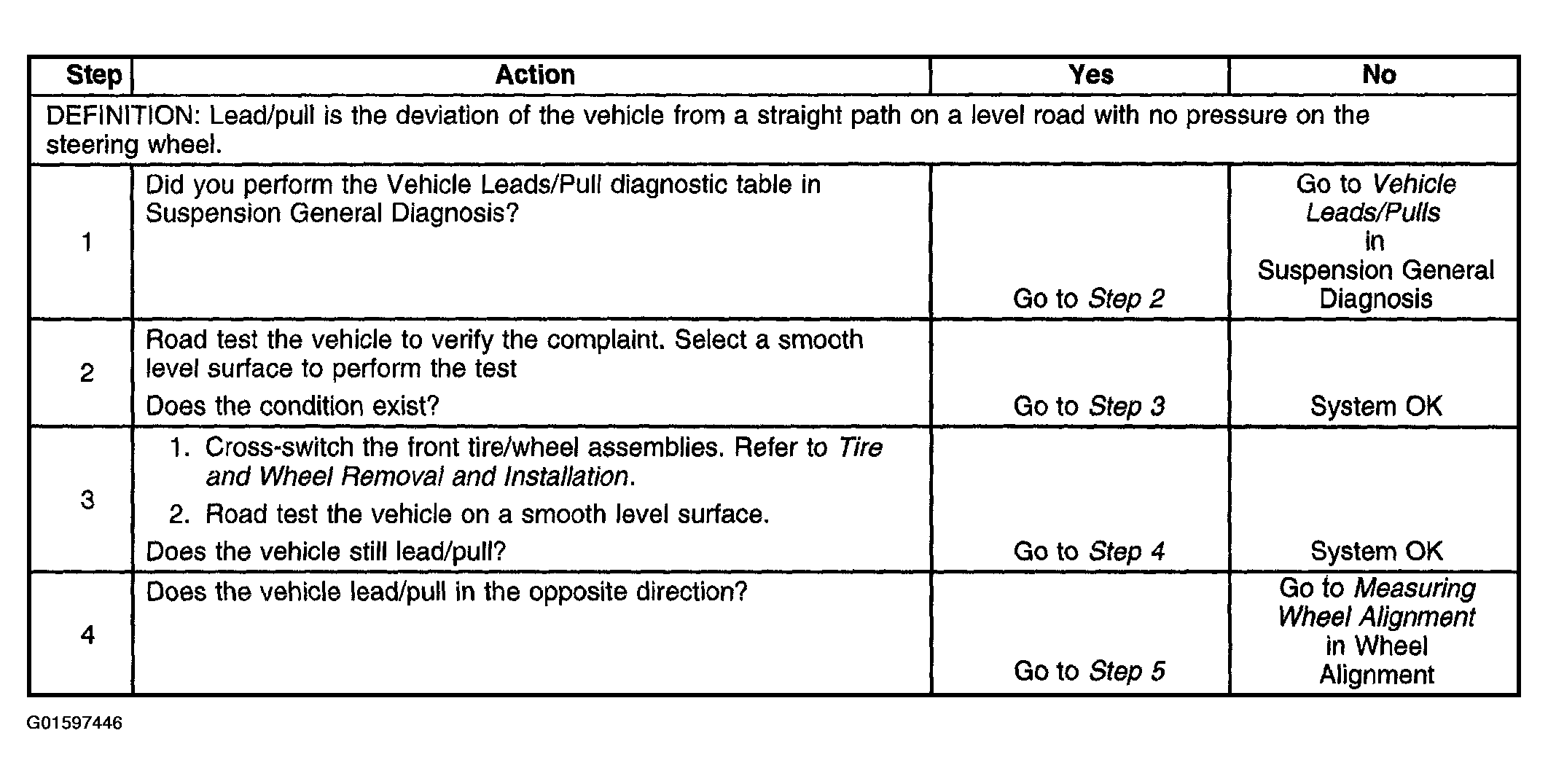

Fig 1: Radial Tire Lead/Pull Correction Chart (1 Of 2)
G01597446Courtesy of GENERAL MOTORS CORP.

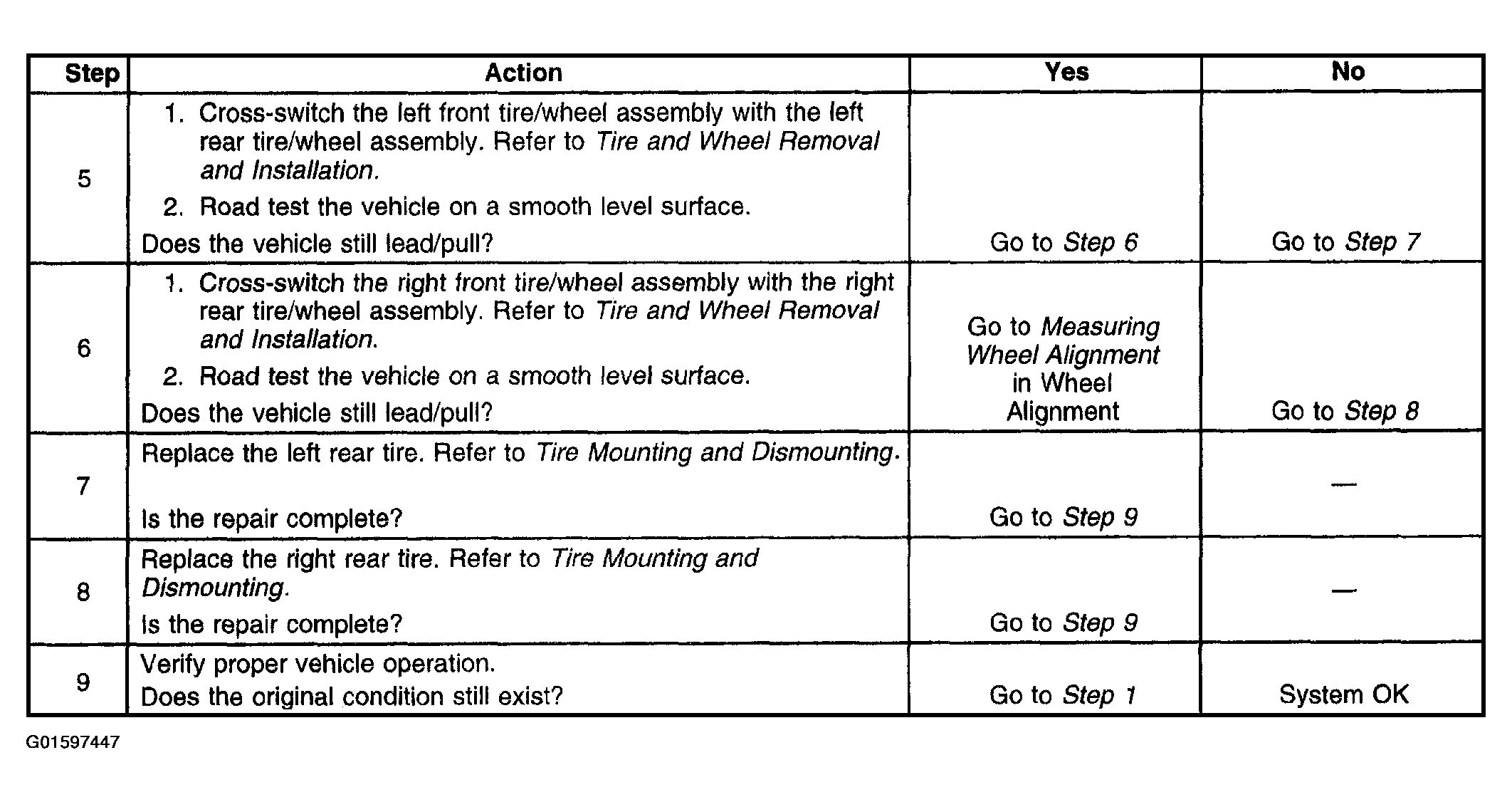

Fig 2: Radial Tire Lead/Pull Correction Chart (2 Of 2)
G01597447Courtesy of GENERAL MOTORS CORP.
