Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the rotor. Refer to Brake Rotor Replacement - Front   in Disc Brakes.
    IMPORTANT: Do not hammer on a wheel stud.
  4. Remove the wheel stud bolt using J 43631.

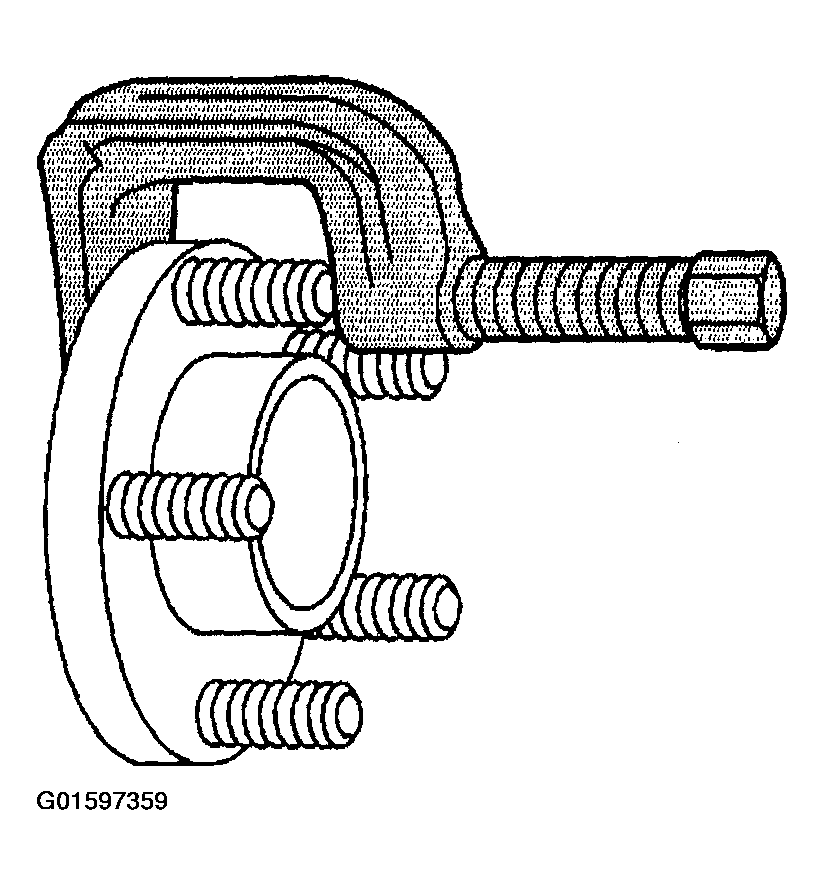

    Fig 1: Removing Wheel Stud Bolt
    G01597359Courtesy of GENERAL MOTORS CORP.
