Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the splash shield to the steering knuckle. Align the splash shield to the steering knuckle threaded holes.
  2. Install the wheel hub and bearing to the steering knuckle. Align the threaded holes.

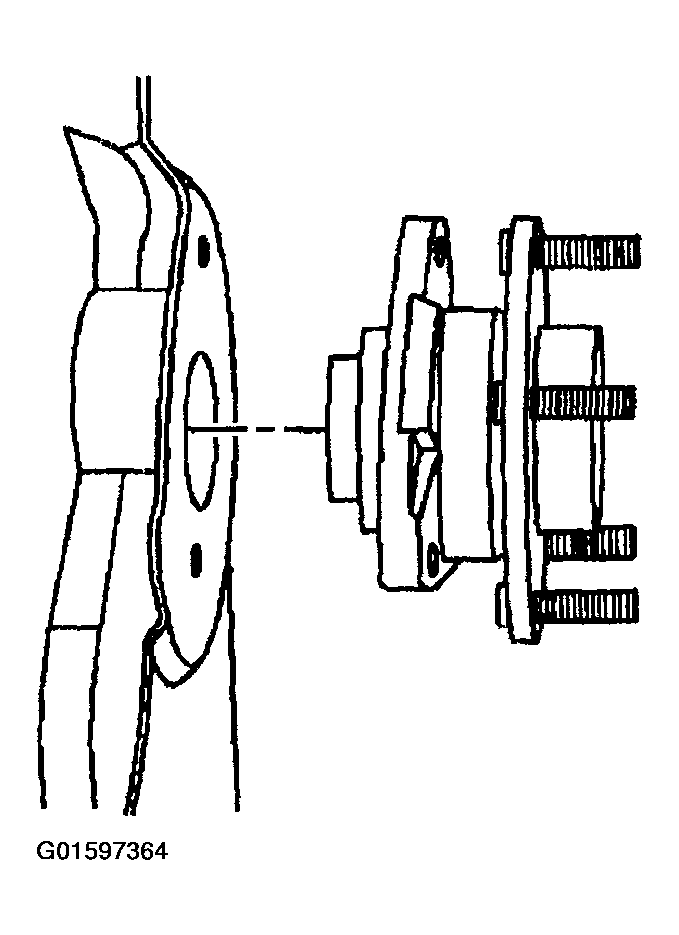

    Fig 1: Installing Wheel Hub And Bearing To Steering Knuckle
    G01597364Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the wheel hub and bearing to the steering knuckle mounting bolts.

    Tighten

    Tighten the wheel hub and bearing mounting bolts to 105 N.m (77 lb ft).

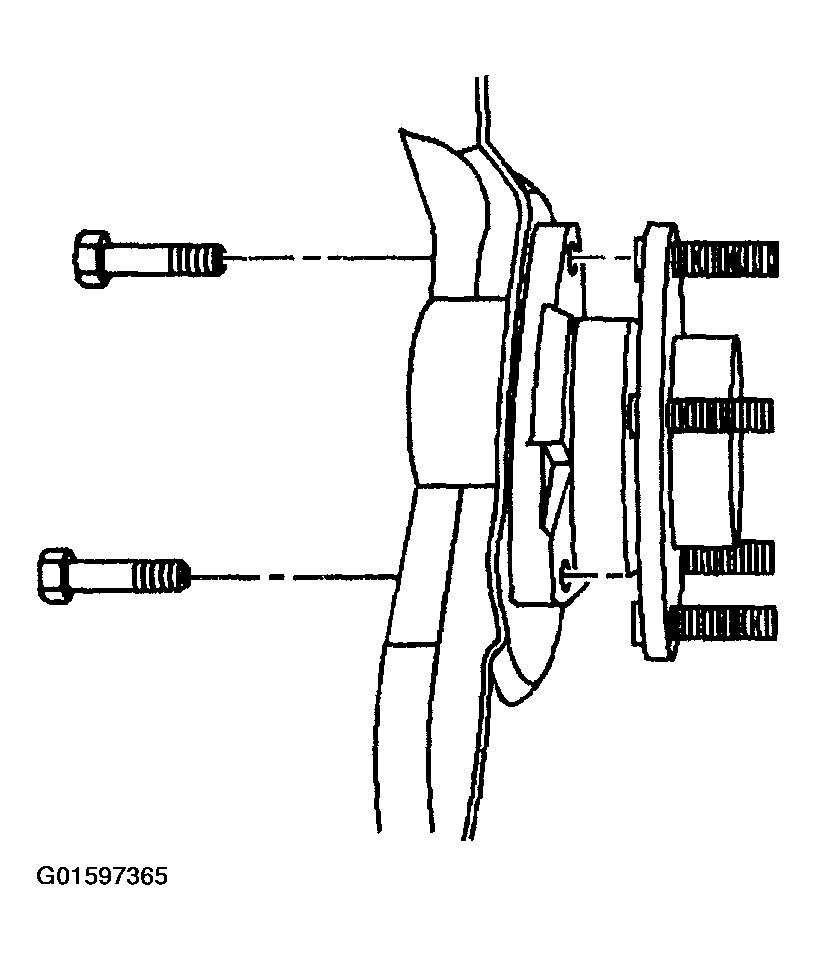

    Fig 2: Installing Wheel Hub And Bearing To Steering Knuckle Mounting Bolts
    G01597365Courtesy of GENERAL MOTORS CORP.
  4. Install the ABS sensor to the wheel hub and bearing.
  5. Install the ABS sensor mounting bolt to the wheel hub and bearing.

    Tighten

    Tighten the ABS sensor to the wheel hub and bearing mounting bolt to 18 N.m (13 lb ft).

  6. Install the brake rotor. Refer to Brake Rotor Replacement - Front   in Disc Brakes.
  7. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  8. Lower the Vehicle.

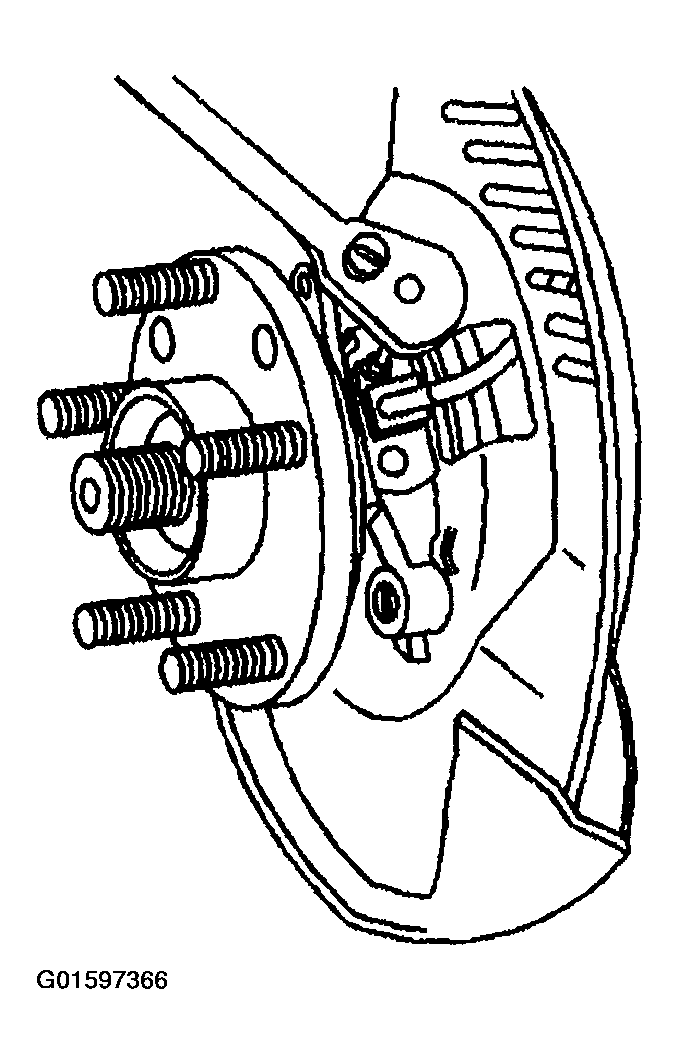

    Fig 3: Installing ABS Sensor To Wheel Hub And Bearing
    G01597366Courtesy of GENERAL MOTORS CORP.
