Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the splash shield to the steering knuckle. Align the splash shield to the steering knuckle threaded holes.
Install the wheel hub and bearing to the steering knuckle. Align the threaded holes.

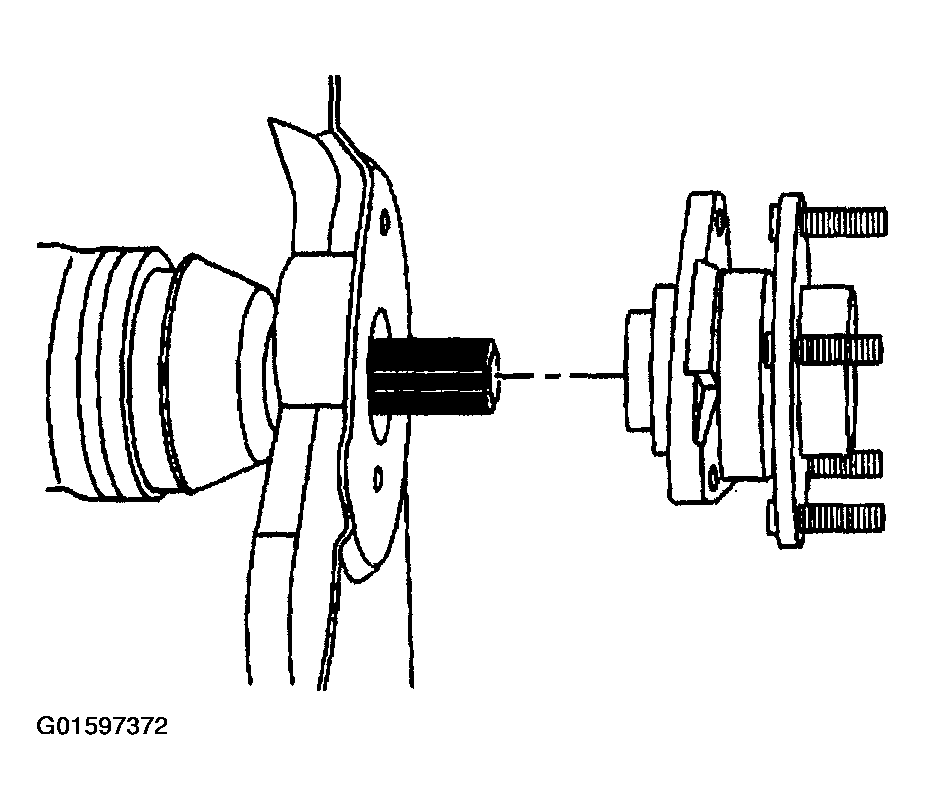

Fig 1: Installing Wheel Hub And Bearing To Steering Knuckle (4WD)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the wheel hub and bearing to the steering knuckle mounting bolts.
Tighten

Tighten the wheel hub and bearing mounting bolts to 105 N.m (77 lb ft).

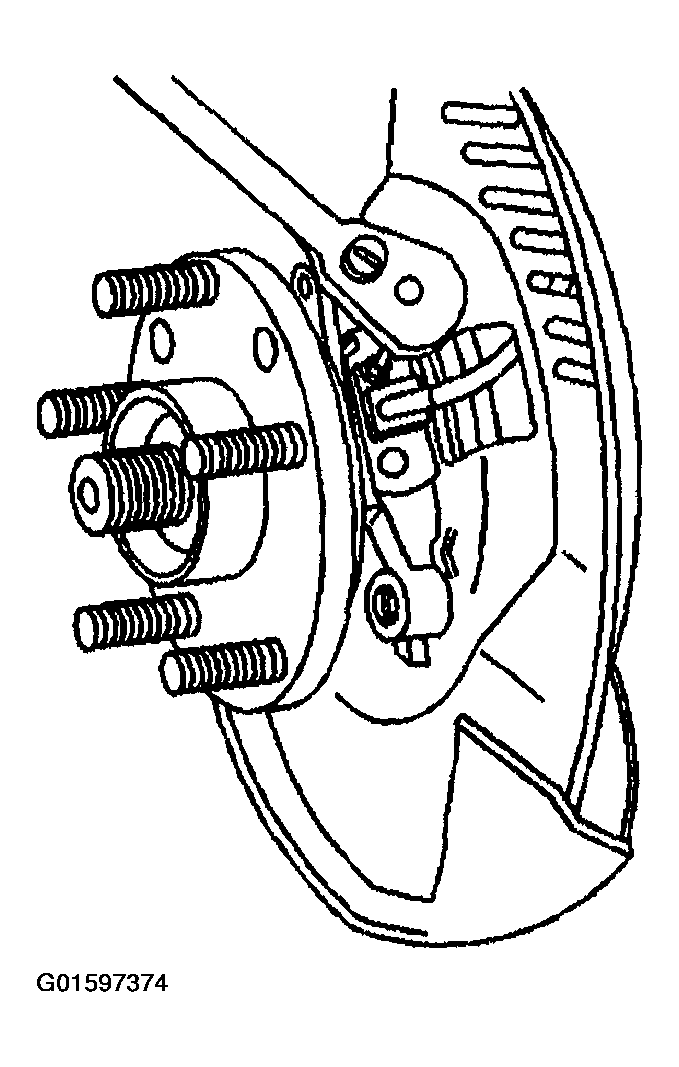

Fig 2: Installing Wheel Hub And Bearing To Steering Knuckle Mounting Bolts (4WD)
Courtesy of GENERAL MOTORS CORP.
Install the ABS sensor to the wheel hub and bearing.
Install the ABS sensor mounting bolt to the wheel hub and bearing.
Tighten

Tighten the ABS sensor to the wheel hub and bearing mounting bolt to 18 N.m (13 lb ft).

Fig 3: Installing ABS Sensor Mounting Bolt To Wheel Hub And Bearing (4WD)
Courtesy of GENERAL MOTORS CORP.
Install the brake rotor. Refer to Brake Rotor Replacement - Front in Disc Brakes.
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
Install the drive axle nut.
Tighten

Tighten the drive axle nut to 140 N.m (103 lb ft).
Install the tire and wheel center cap.

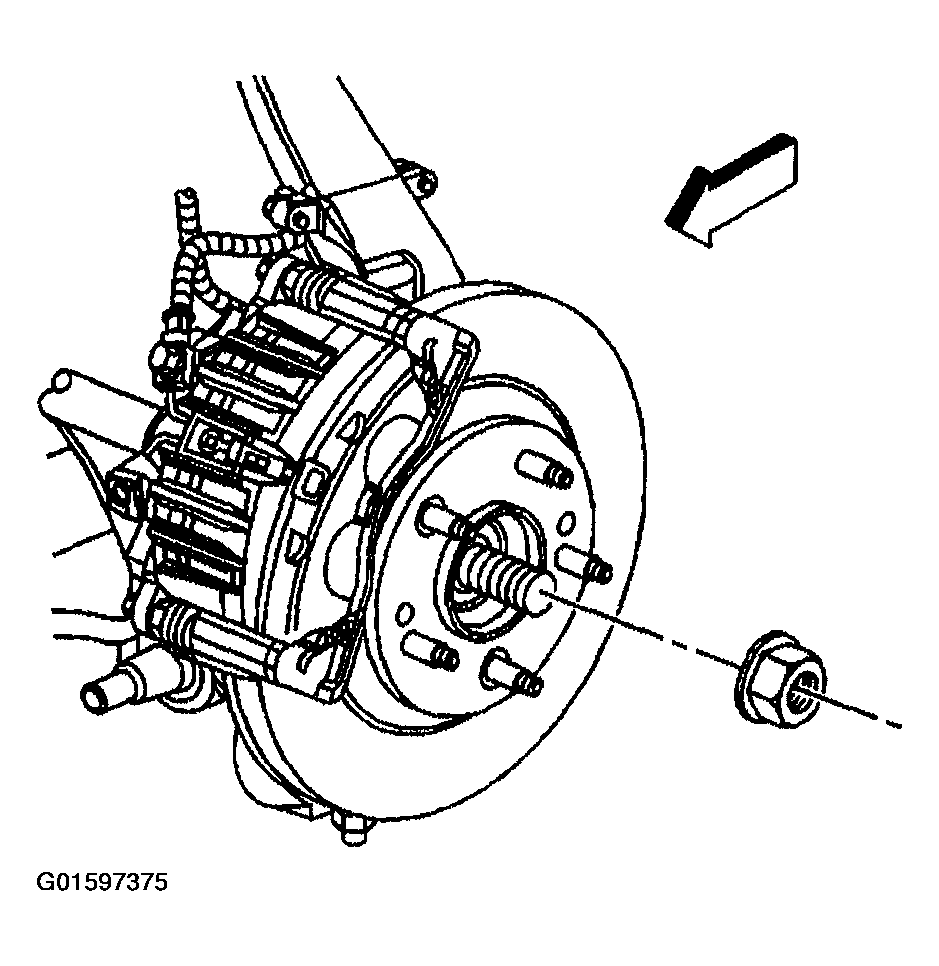

Fig 4: Installing Drive Axle Nut (4WD)
Courtesy of GENERAL MOTORS CORP.
