Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the stabilizer shaft links to the stabilizer shaft retaining nuts.

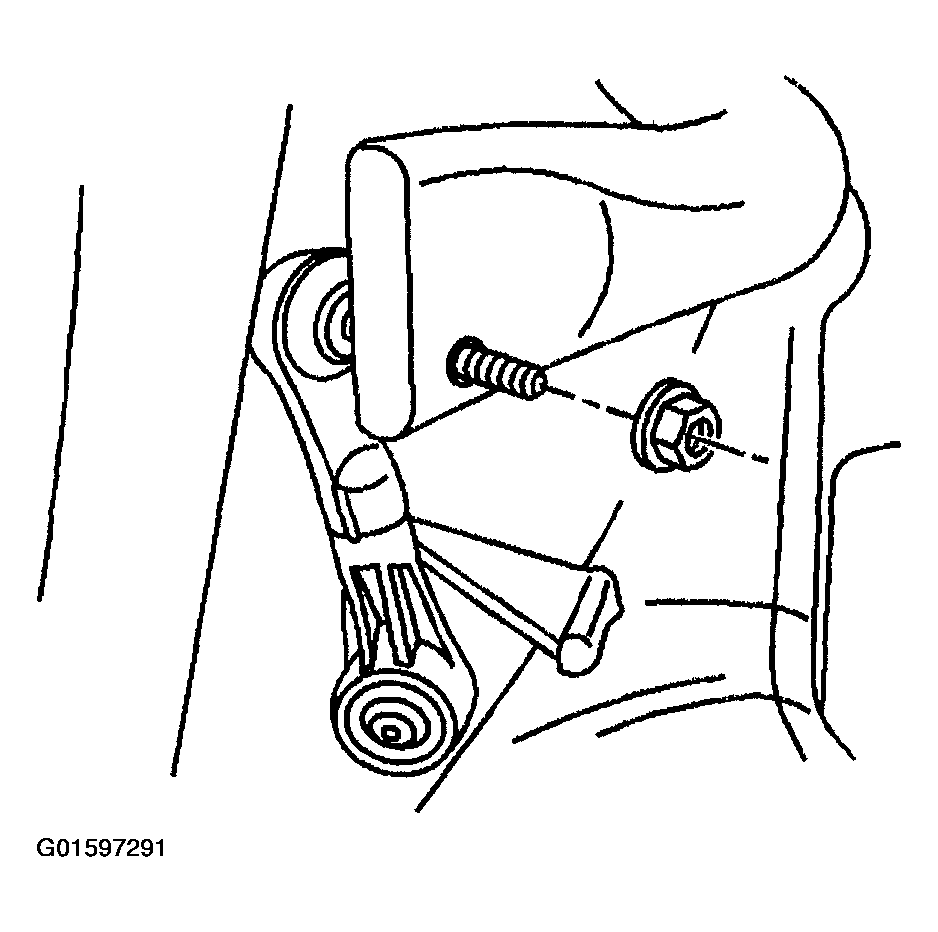

    Fig 1: Removing Stabilizer Shaft Retaining Nut
    G01597291Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not pry on the stabilizer shaft link. Use care when removing or installing the stabilizer shaft link in order to avoid tearing or puncturing the stabilizer shaft link boot. Damage to the stabilizer shaft link boot will lead to damage to the stabilizer shaft link.
  3. Disconnect the stabilizer shaft links from the stabilizer shaft.

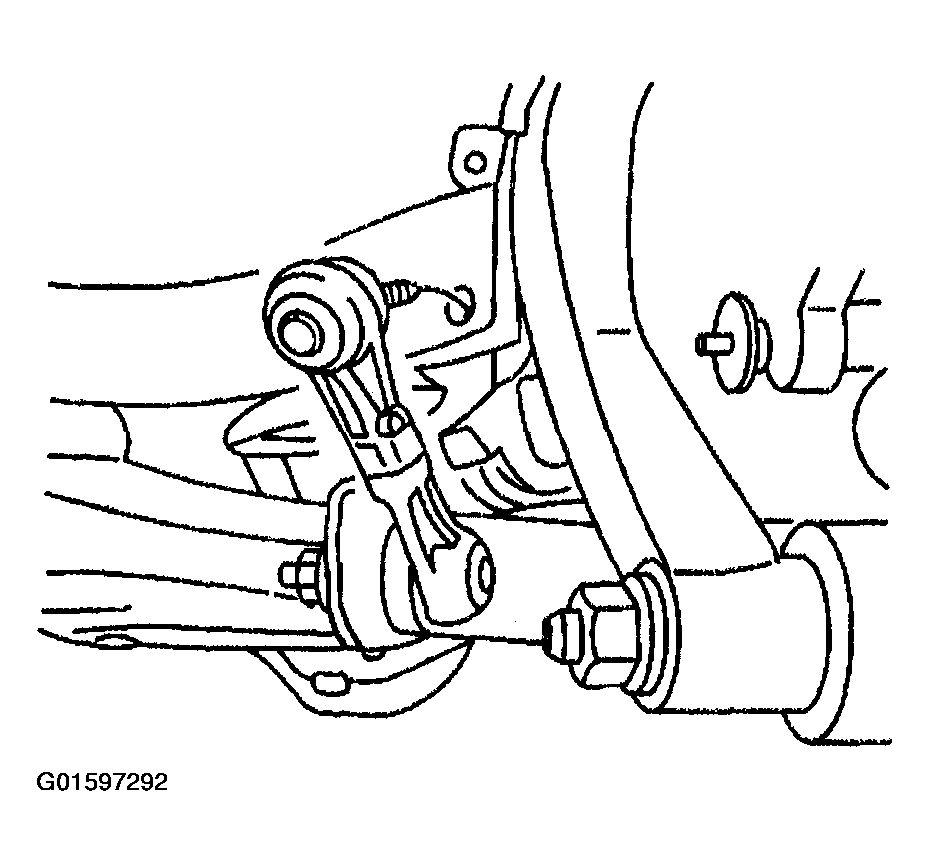

    Fig 2: Disconnecting Stabilizer Shaft Links From Stabilizer Shaft
    G01597292Courtesy of GENERAL MOTORS CORP.
  4. Remove the stabilizer shaft insulator clamp mounting bolts.
  5. Remove the stabilizer shaft insulator clamp from the stabilizer shaft insulator.
  6. Remove the stabilizer shaft from the vehicle.
  7. Remove the stabilizer shaft insulators from the stabilizer shaft.

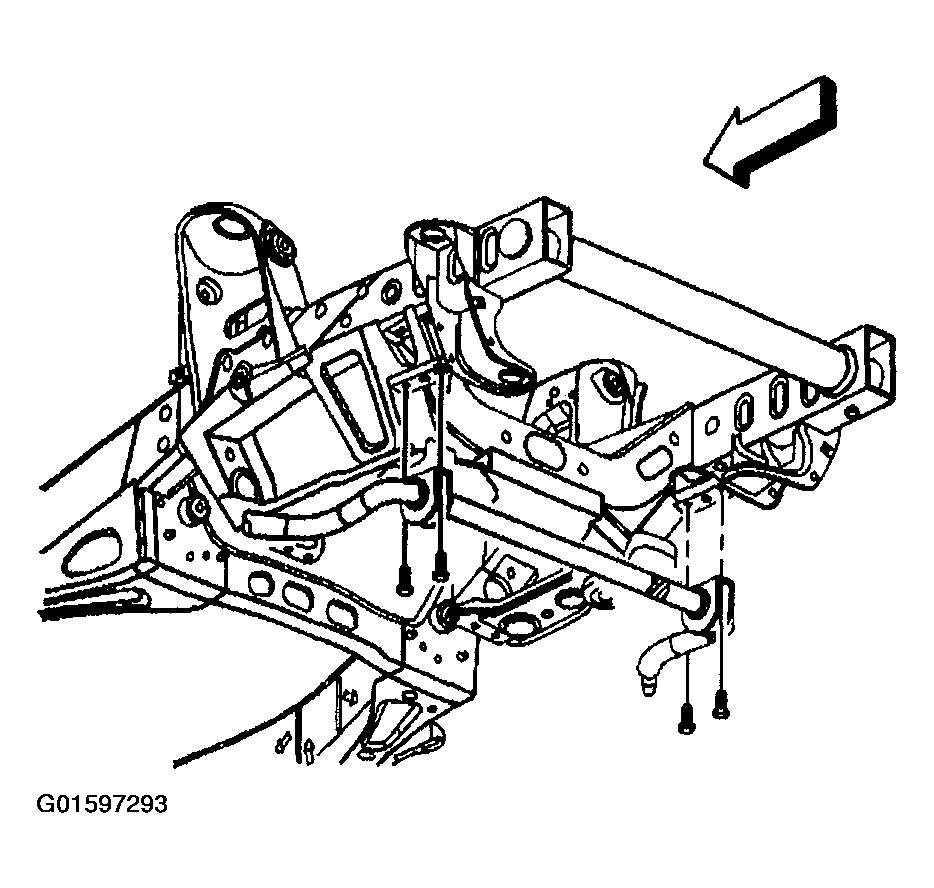

    Fig 3: Removing Stabilizer Shaft Insulator Clamp Mounting Bolts
    G01597293Courtesy of GENERAL MOTORS CORP.
