Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulators to the stabilizer shaft.
  2. Install the stabilizer shaft to the vehicle.
  3. Install the stabilizer shaft insulator clamp to the stabilizer shaft insulator.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the stabilizer shaft insulator clamp mounting bolts.

    Tighten

    Tighten the stabilizer shaft insulator clamp mounting bolts to 55 N.m (41 lb ft).

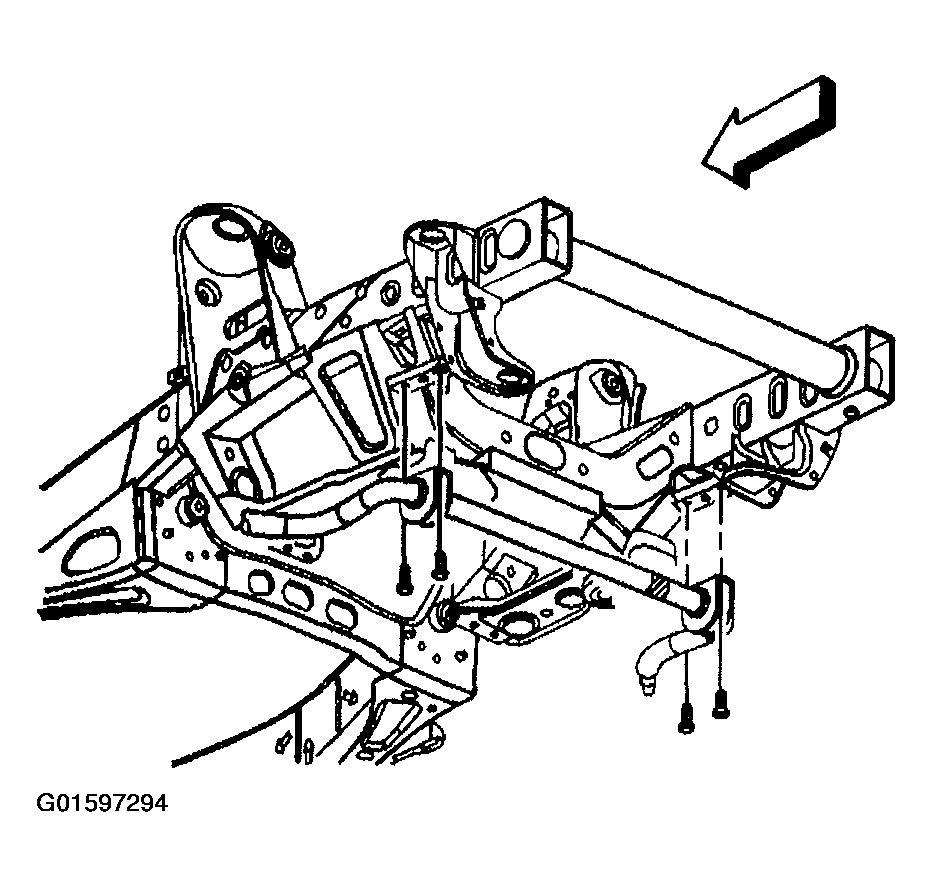

    Fig 1: Installing Stabilizer Shaft Insulator Clamp Mounting Bolts
    G01597294Courtesy of GENERAL MOTORS CORP.
  5. Install the stabilizer shaft links to the stabilizer shaft.

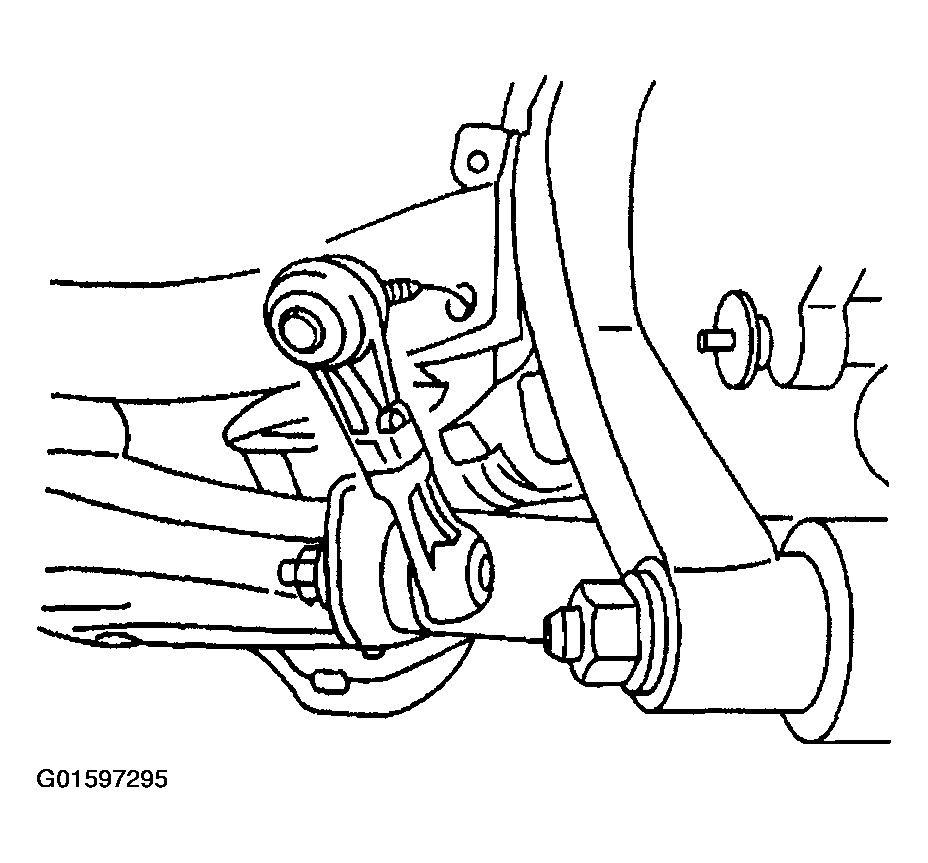

    Fig 2: Installing Stabilizer Shaft Links To Stabilizer Shaft
    G01597295Courtesy of GENERAL MOTORS CORP.
  6. Install the stabilizer shaft links to stabilizer shaft retaining nuts.

    Tighten

    Tighten the stabilizer shaft links to stabilizer shaft retaining nuts to 100 N.m (74 lb ft).

  7. Lower the vehicle.

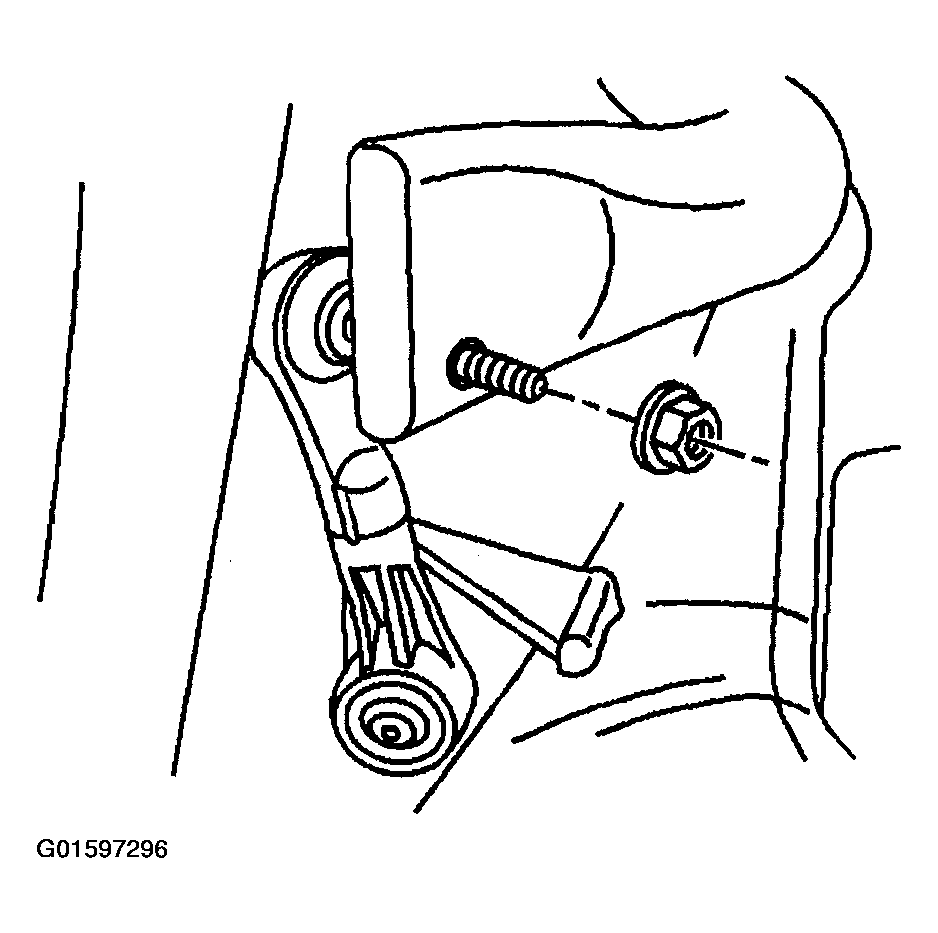

    Fig 3: Installing Stabilizer Shaft Retaining Nut
    G01597296Courtesy of GENERAL MOTORS CORP.
