Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the stabilizer shaft link to stabilizer shaft retaining nut.

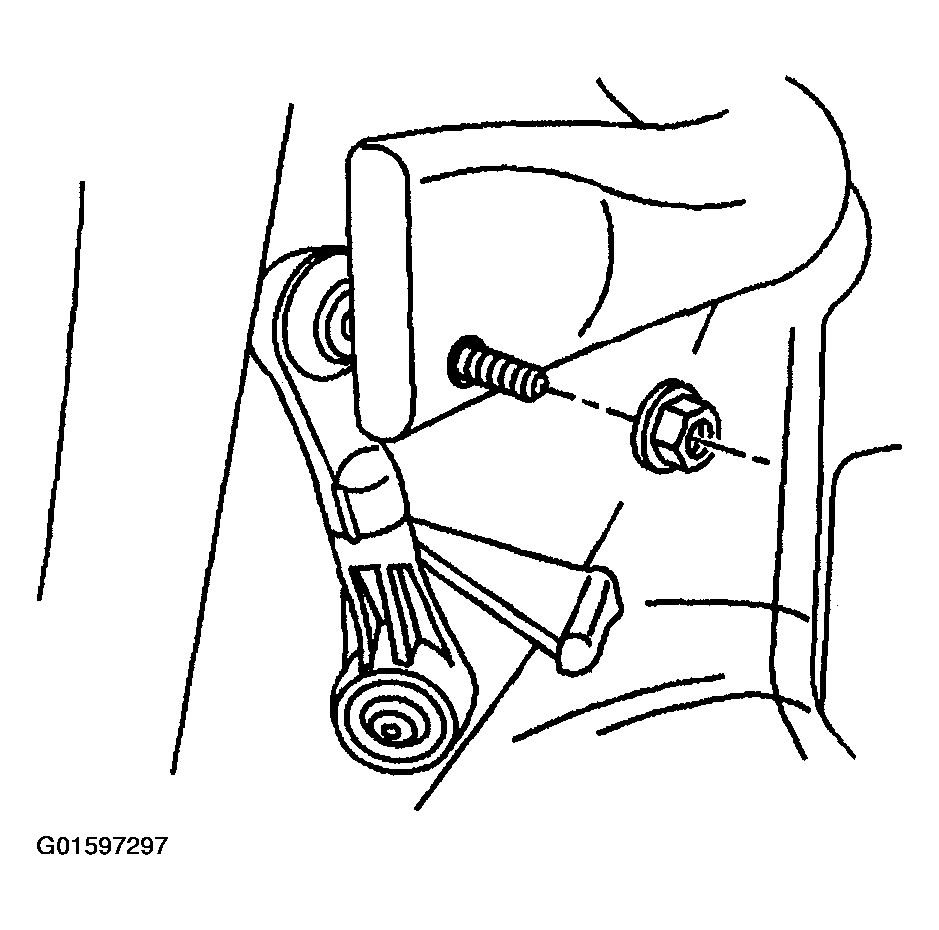

    Fig 1: Removing Stabilizer Shaft Retaining Nut
    G01597297Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft link to lower control arm retaining nut.
    NOTE: Do not pry on the stabilizer shaft link. Use care when removing or installing the stabilizer shaft link in order to avoid tearing or puncturing the stabilizer shaft link boot. Damage to the stabilizer shaft link boot will lead to damage to the stabilizer shaft link.
  4. Remove the stabilizer shaft link and washer.

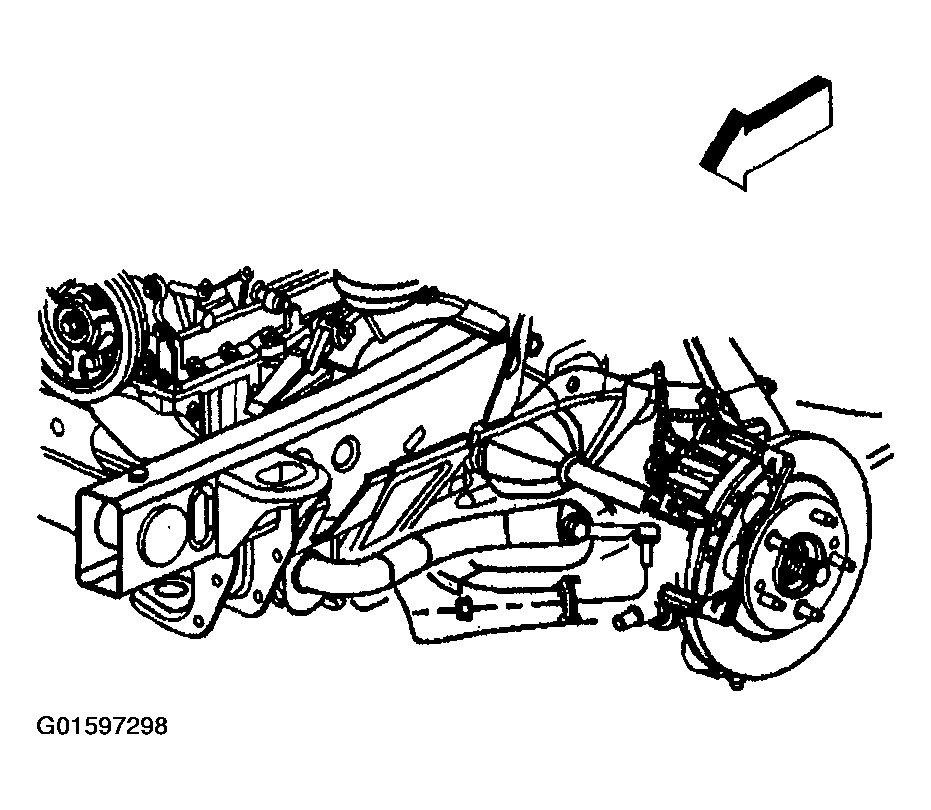

    Fig 2: Removing Stabilizer Shaft Link To Lower Control Arm Retaining Nut
    G01597298Courtesy of GENERAL MOTORS CORP.
