Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: There is a washer between the stabilizer shaft link and the lower control arm made of hardened steel and has a felt inner liner. Only replace this washer with an identical washer, standard washers should not be used.
  1. Install the stabilizer shaft link and the washer to the lower control arm.
  2. Install the stabilizer shaft link to lower control arm retaining nut.

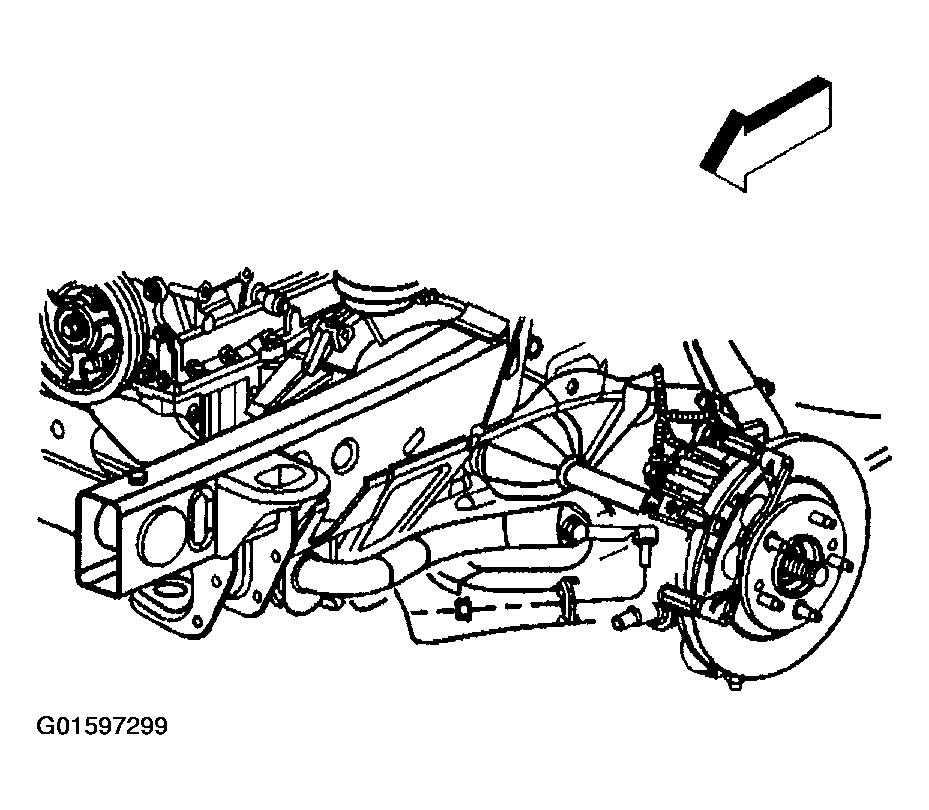

    Fig 1: Installing Stabilizer Shaft Link To Lower Control Arm Retaining Nut
    G01597299Courtesy of GENERAL MOTORS CORP.
  3. Install the stabilizer shaft link to the stabilizer shaft.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the stabilizer shaft link to stabilizer shaft retaining nut.

    Tighten

    Tighten the stabilizer shaft retaining nuts to 100 N.m (74 lb ft).

  5. Lower the vehicle.

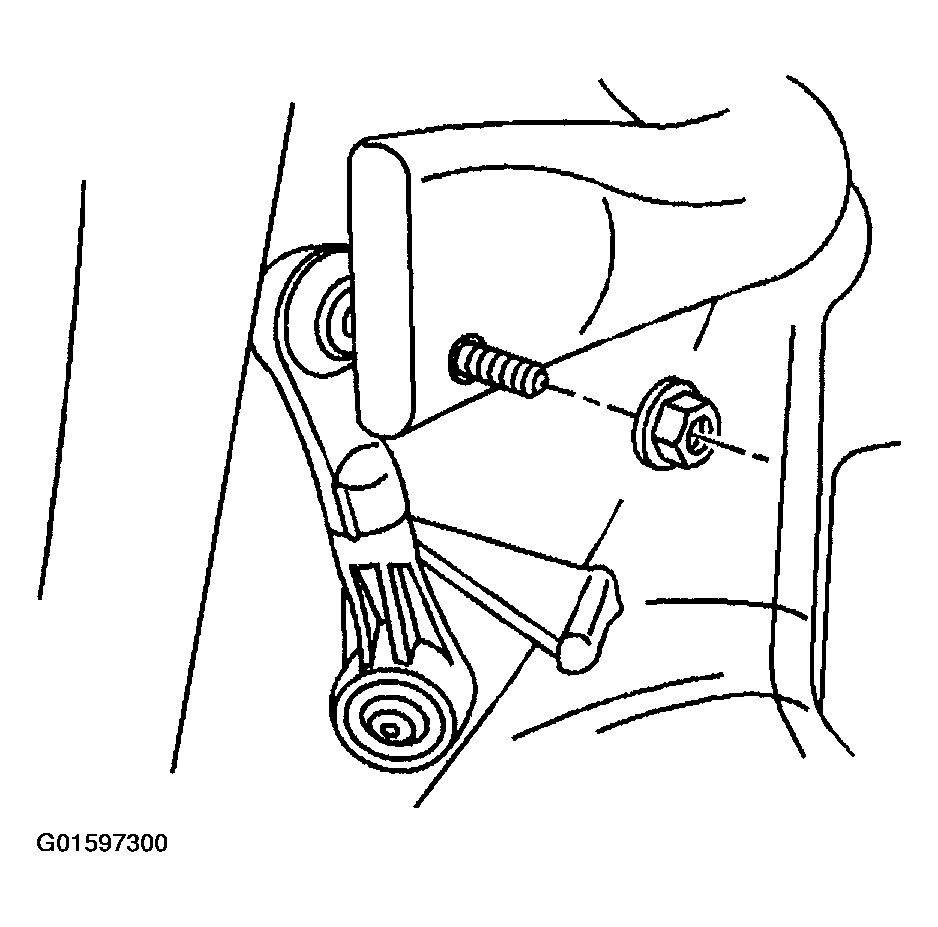

    Fig 2: Installing Stabilizer Shaft Retaining Nut
    G01597300Courtesy of GENERAL MOTORS CORP.
