Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the and support the vehicle. Refer to Lifting and Jacking the Vehicle   in General Information.
  2. Remove the stabilizer shaft insulator clamp mounting bolts.
  3. Remove the stabilizer shaft insulator clamp from the stabilizer shaft insulator.
  4. Lower the stabilizer shaft and remove the stabilizer shaft insulator.

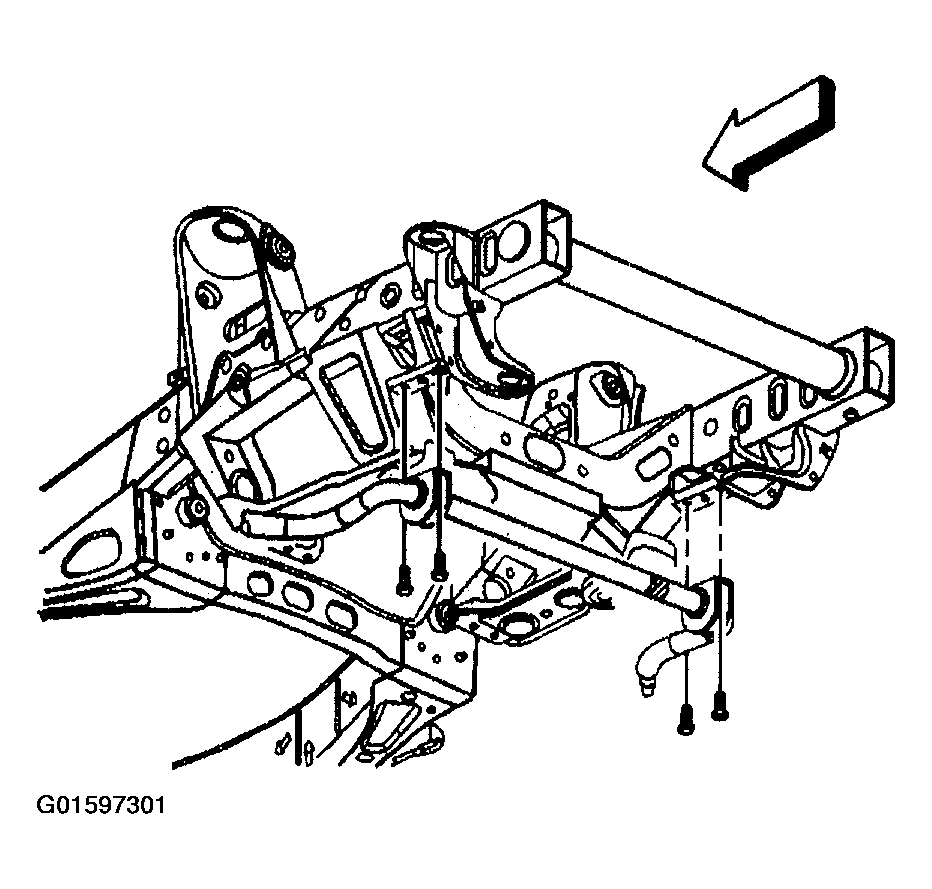

Fig 1: Removing Stabilizer Shaft Insulator Clamp Mounting Bolts
G01597301Courtesy of GENERAL MOTORS CORP.
