Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulator to stabilizer shaft with slit facing the front of the vehicle.
  2. Install the stabilizer shaft insulator clamp to the stabilizer shaft insulator.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the stabilizer shaft insulator clamp mounting bolts.

    Tighten

    Tighten the stabilizer shaft insulator clamp mounting bolts to 55 N.m (41 lb ft).

  4. Lower the vehicle.

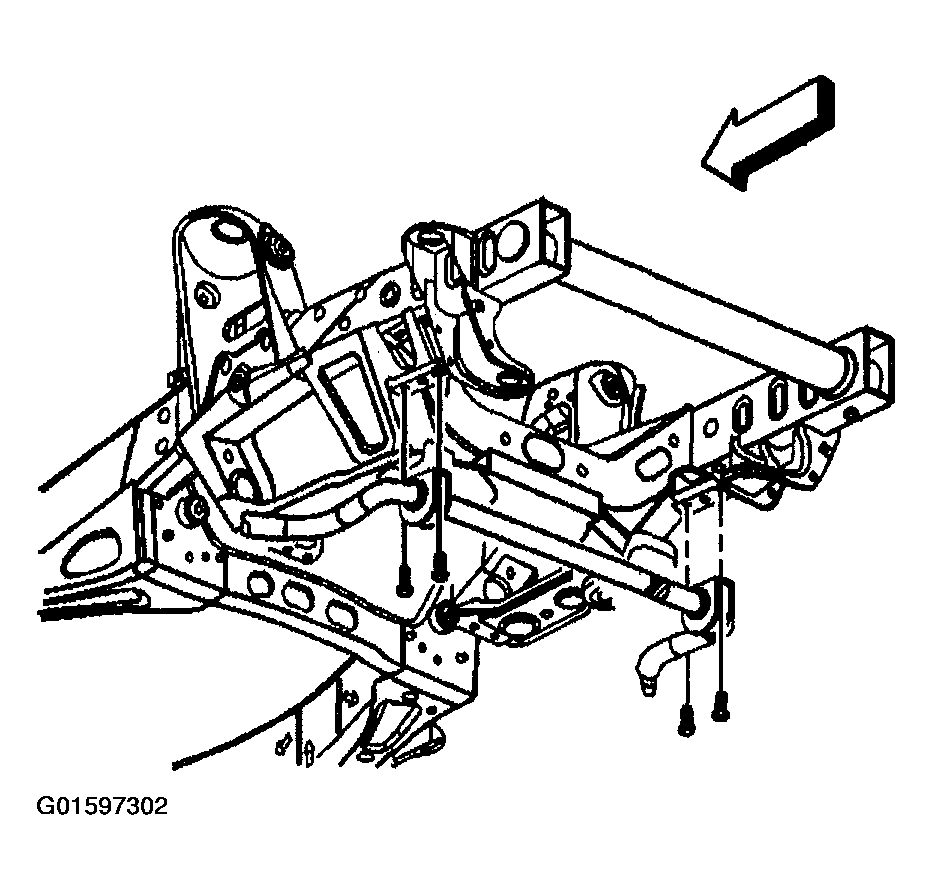

    Fig 1: Installing Stabilizer Shaft Insulator Clamp Mounting Bolts
    G01597302Courtesy of GENERAL MOTORS CORP.
