Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT   .
  3. Remove the connector (2) from the lock (1).

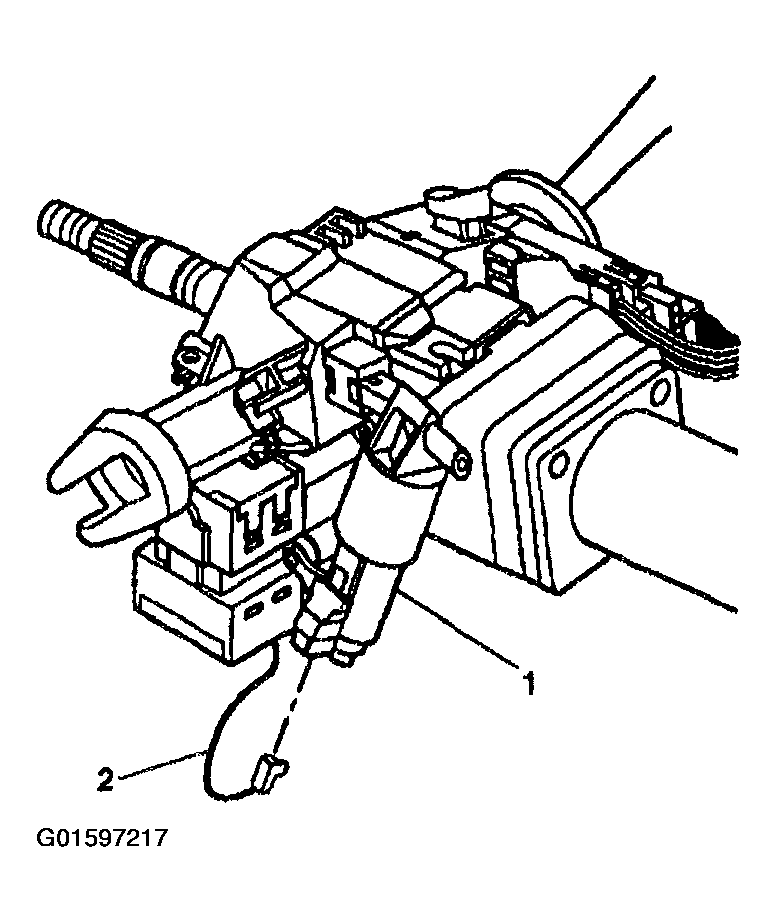

    Fig 1: Removing Connector From Lock
    G01597217Courtesy of GENERAL MOTORS CORP.
  4. Pry the electric park lock (2) off of the ignition lock cylinder case assembly (1).

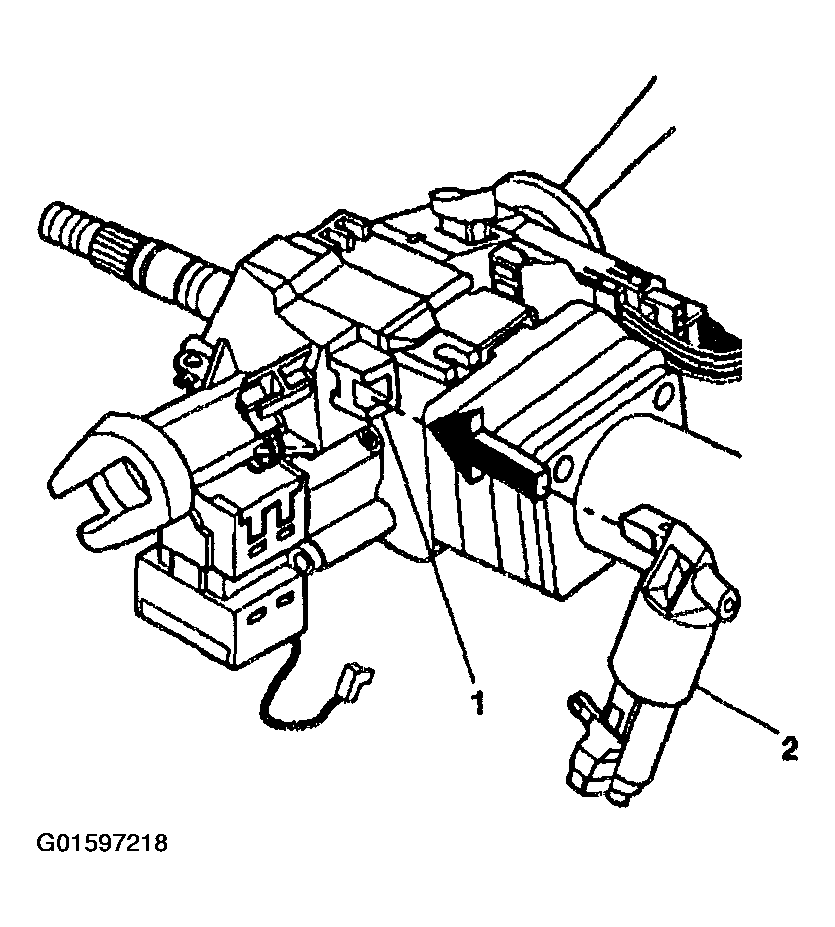

    Fig 2: Removing Electric Park Lock From Ignition Lock Cylinder Case Assembly
    G01597218Courtesy of GENERAL MOTORS CORP.
