Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Snap the electric park lock (2) onto the ignition lock cylinder case assembly (1).

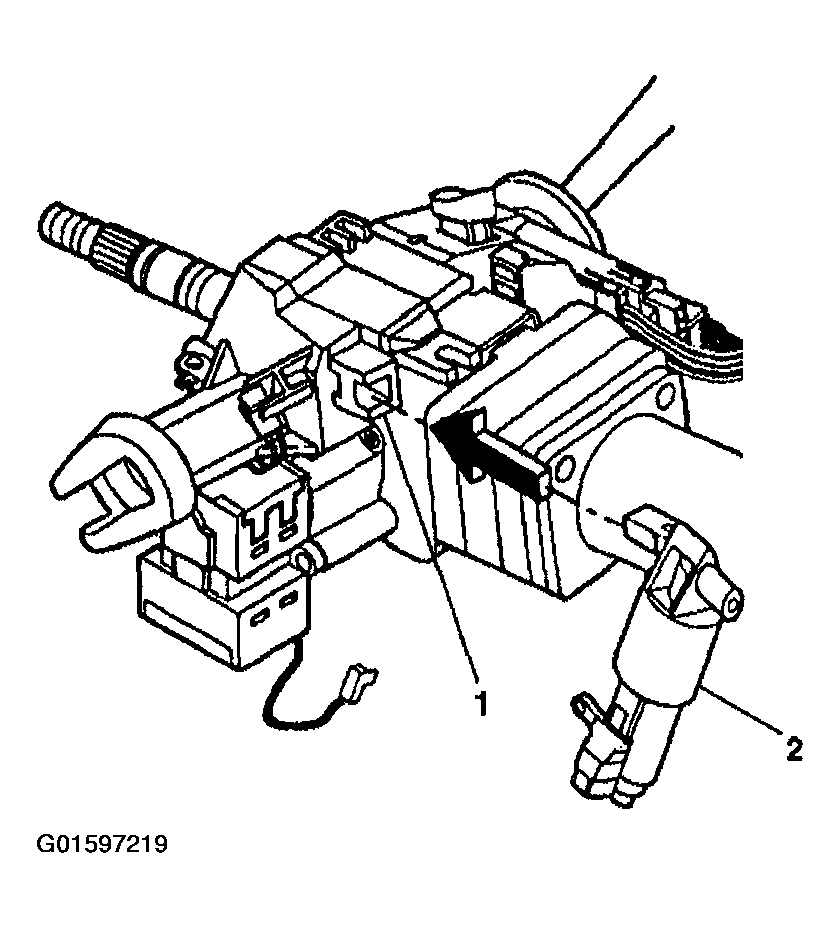

Fig 1: Installing Electric Park Lock To Ignition Lock Cylinder Case Assembly
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION In Cautions and Notices.
Reconnect the connector (2) to the electric park lock (1).
Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.

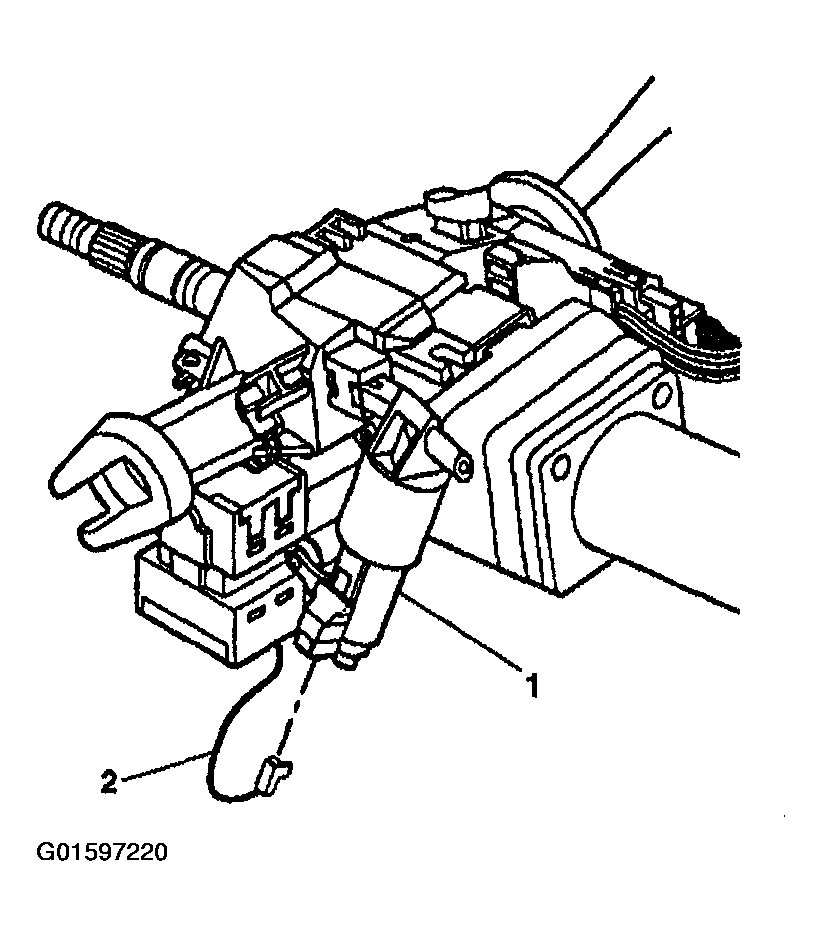

Fig 2: Installing Connector To Lock
Courtesy of GENERAL MOTORS CORP.
