Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the steering wheel control switch to the steering wheel.
  2. Connect the electrical connector to the steering wheel control switch.
  3. Install the steering wheel control switch into the steering wheel, ensuring the retaining tabs are fully seated.

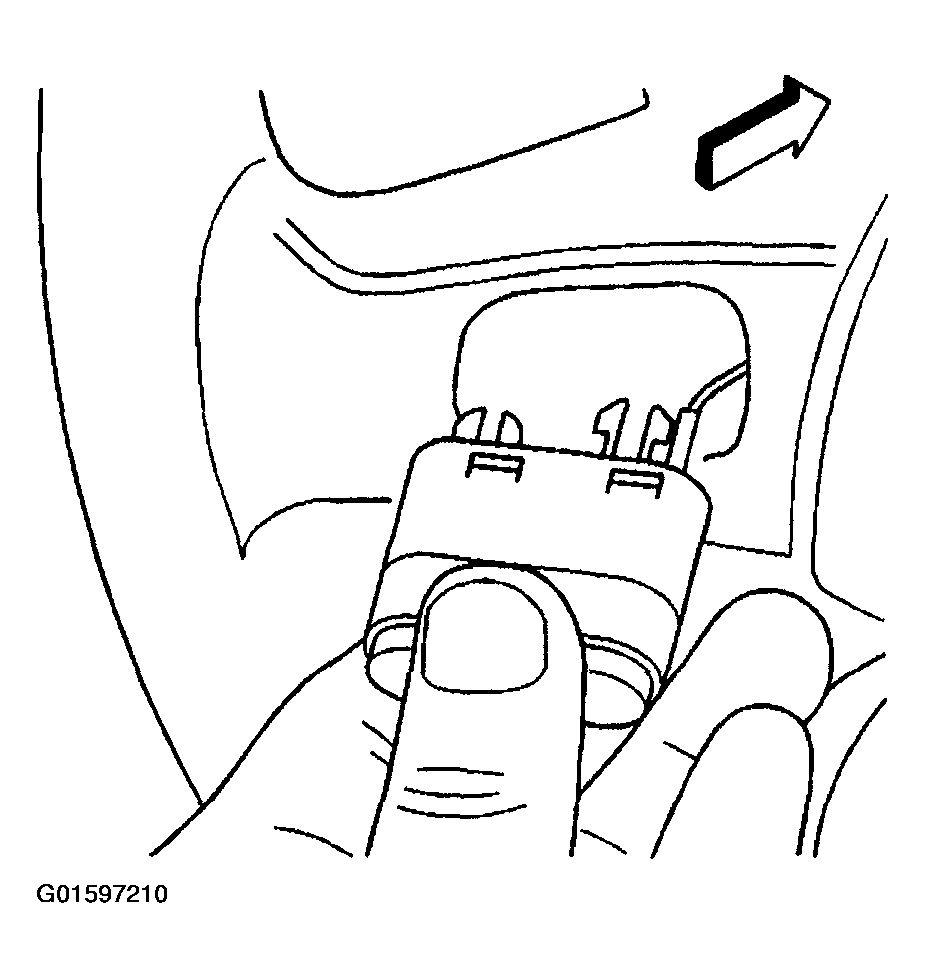

    Fig 1: Installing Steering Wheel Control Switch To Steering Wheel
    G01597210Courtesy of GENERAL MOTORS CORP.
  4. Install the shroud to the steering wheel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the shroud retaining screws to the steering wheel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT   .

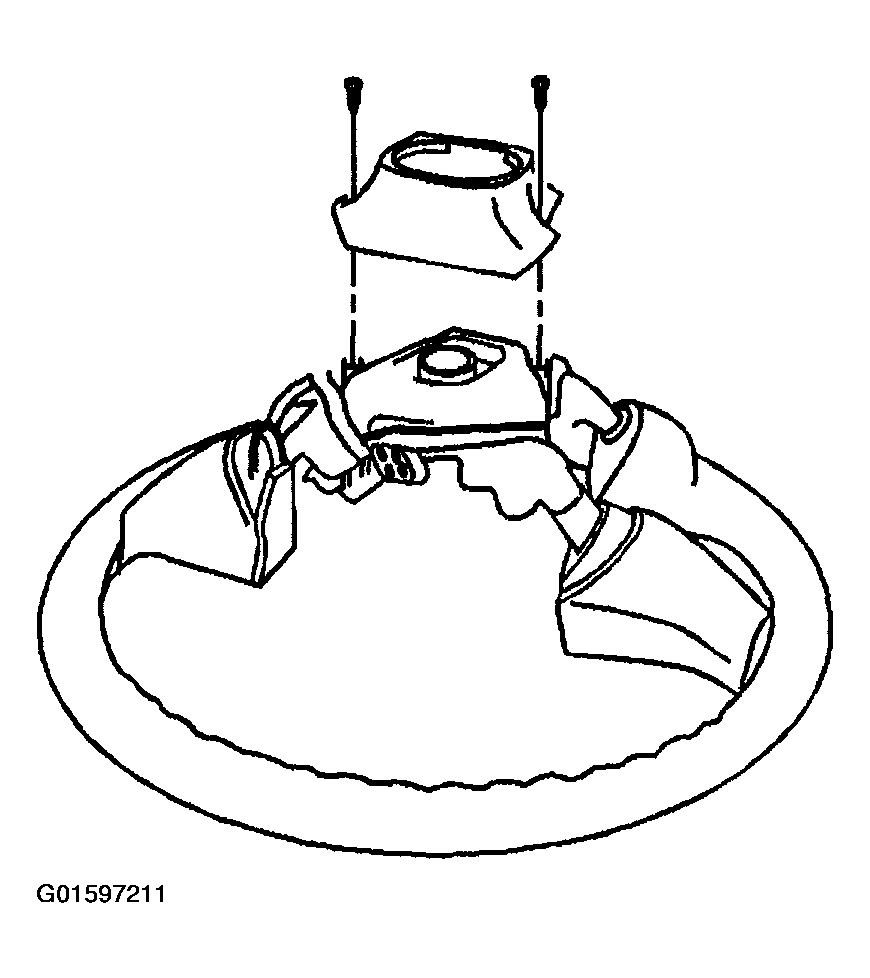

    Fig 2: Installing Steering Wheel Shroud
    G01597211Courtesy of GENERAL MOTORS CORP.
