Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
  2. Remove the steering column from the vehicle. Refer to STEERING COLUMN REPLACEMENT   .
  3. Inspect the steering column for accident damage. Refer to STEERING WHEEL & STEERING COLUMN  .
  4. Remove the steering column tilt head. Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT   .
  5. Remove the jacket.

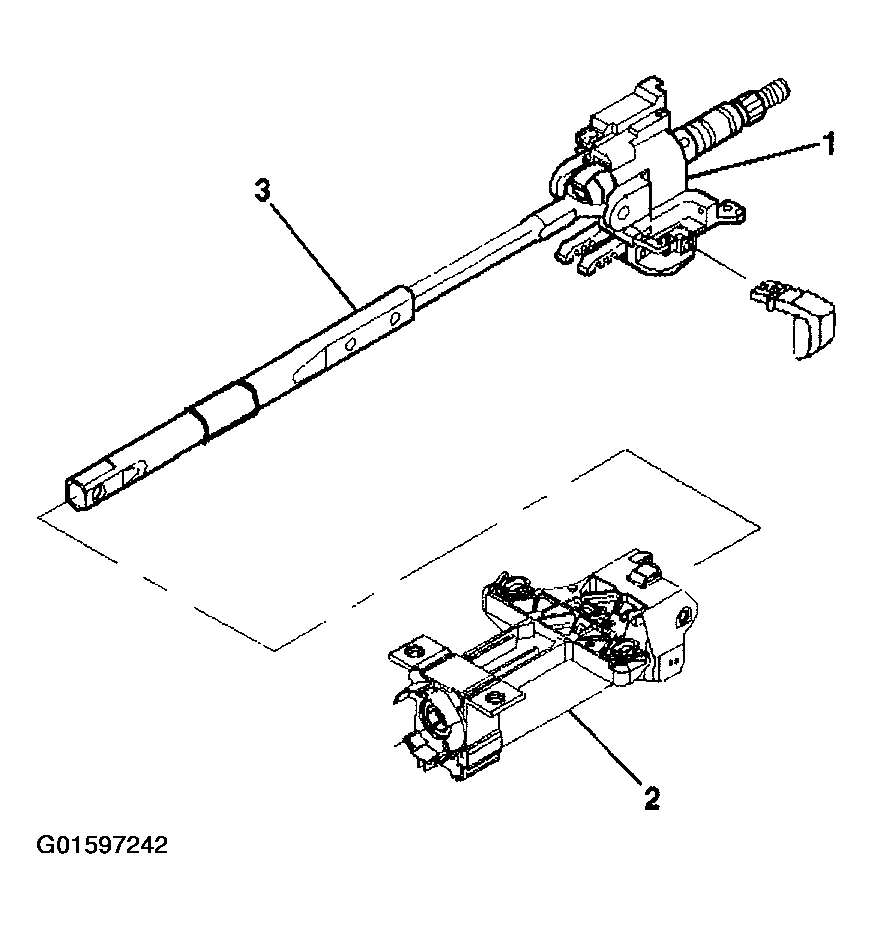

    Fig 1: Removing Steering Column Jacket
    G01597242Courtesy of GENERAL MOTORS CORP.
