Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the jacket.
  2. Install the steering column tilt head (1). Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT   .
  3. Install the steering column to the vehicle. Refer to STEERING COLUMN REPLACEMENT   .
  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.

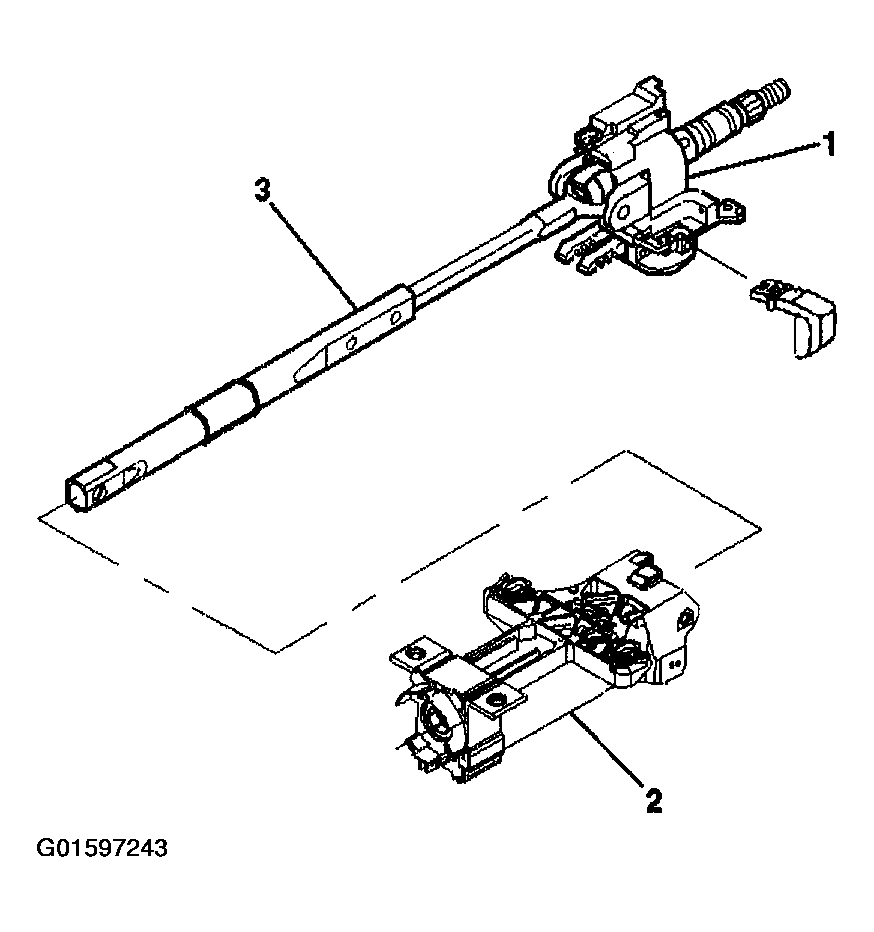

    Fig 1: Installing Steering Column Jacket
    G01597243Courtesy of GENERAL MOTORS CORP.
