Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
  2. Remove the steering wheel from the column. Refer to STEERING WHEEL REPLACEMENT   .
  3. Remove the ignition lock cylinder case assembly. Refer to IGNITION LOCK CYLINDER CASE REPLACEMENT   .
  4. Remove the turn signal and multifunction switch assembly. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT   .
  5. Slide the turn signal switch housing off of the steering column shaft assembly.

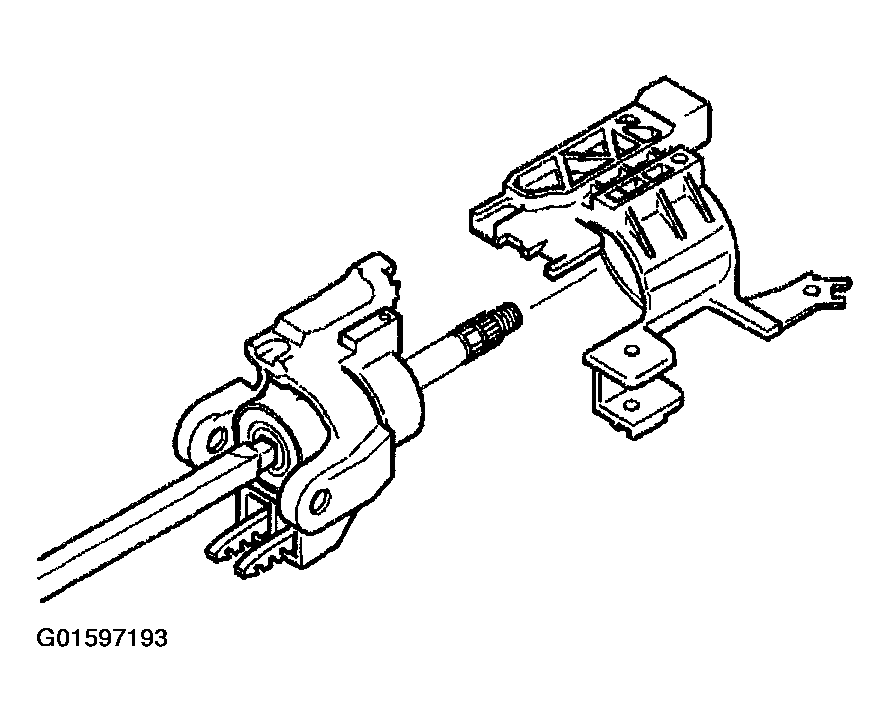

    Fig 1: Removing Turn Signal Switch Housing From Steering Column Shaft Assembly
    G01597193Courtesy of GENERAL MOTORS CORP.
