Inflatable Restraint Steering Wheel Module Coil Centering

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.
  1. Verify the following conditions before centering the SIR coil:
    • The wheels on the vehicle are straight ahead.
    • The block tooth (1) of the steering shaft assembly is in the 12 o'clock position.
    • The ignition switch assembly is in the LOCK position.

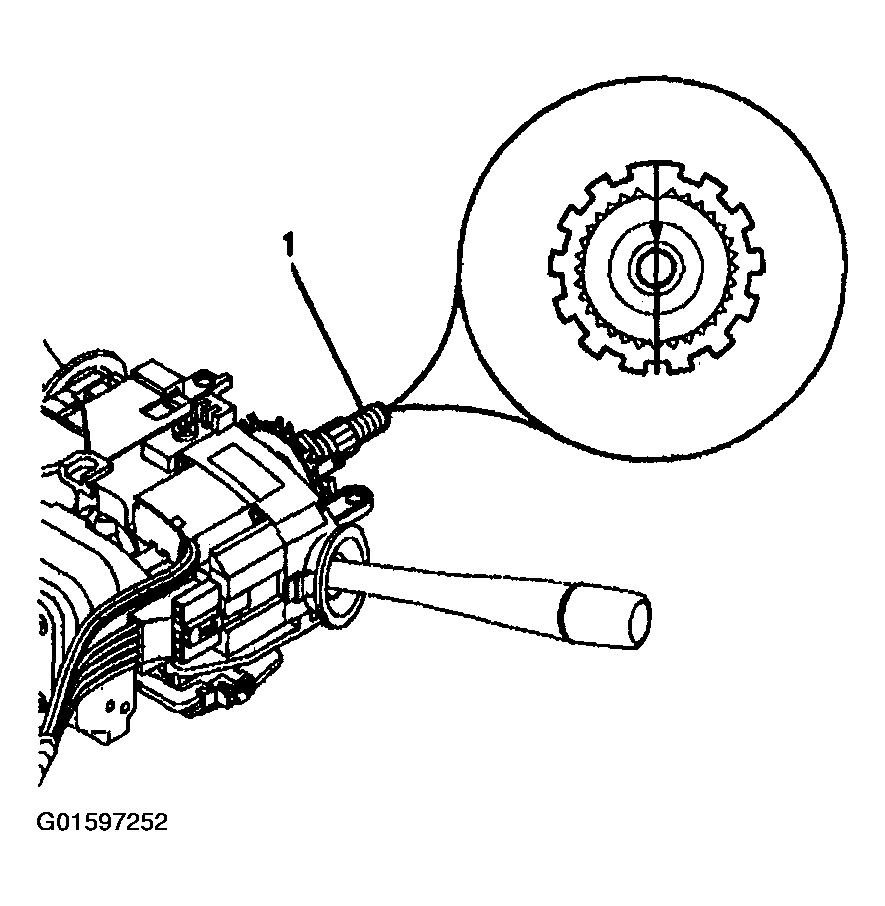

    Fig 1: Identifying Steering Shaft Assembly Block Tooth Position
    G01597252Courtesy of GENERAL MOTORS CORP.
  2. If the front (5) of the SIR coil has a centering window (4), and the back side (2) has a spring service lock (1), perform the following steps:
    1. Hold the coil with the face up.
    2. While depressing the spring service lock, rotate the coil hub clockwise until the coil ribbon stops.
    3. Rotate the coil hub slowly, counterclockwise, until the centering window appears yellow and both arrows (3) line up.
    4. Release the spring service lock between the locking tab. The SIR coil is now centered.
    5. Align the centered SIR coil with the horn tower and slide onto the steering shaft assembly.

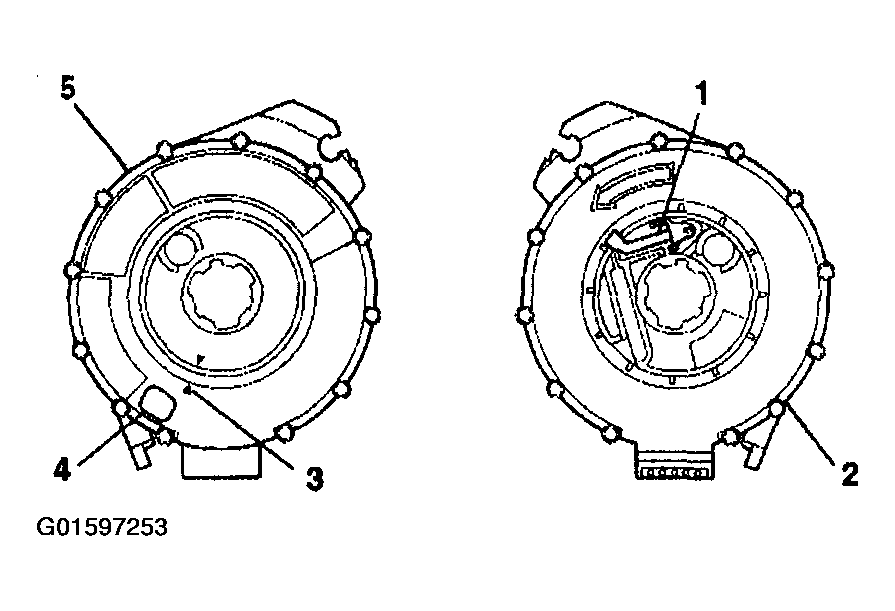

    Fig 2: Identifying SIR Coil Centering Window & Spring Service Lock
    G01597253Courtesy of GENERAL MOTORS CORP.
  3. If the front (4) of the SIR coil has a centering window (3) and the back side (1) has NO spring service lock, perform the following steps:
    1. Hold the coil with the face up.
    2. Rotate the coil hub clockwise until the coil ribbon stops.
    3. Rotate the coil hub slowly, counterclockwise until the centering window appears yellow and both arrows (2) line up. This is the CENTER position.
    4. While holding the coil hub in the CENTER position, align the coil with the horn tower and slide the coil onto the steering shaft assembly.

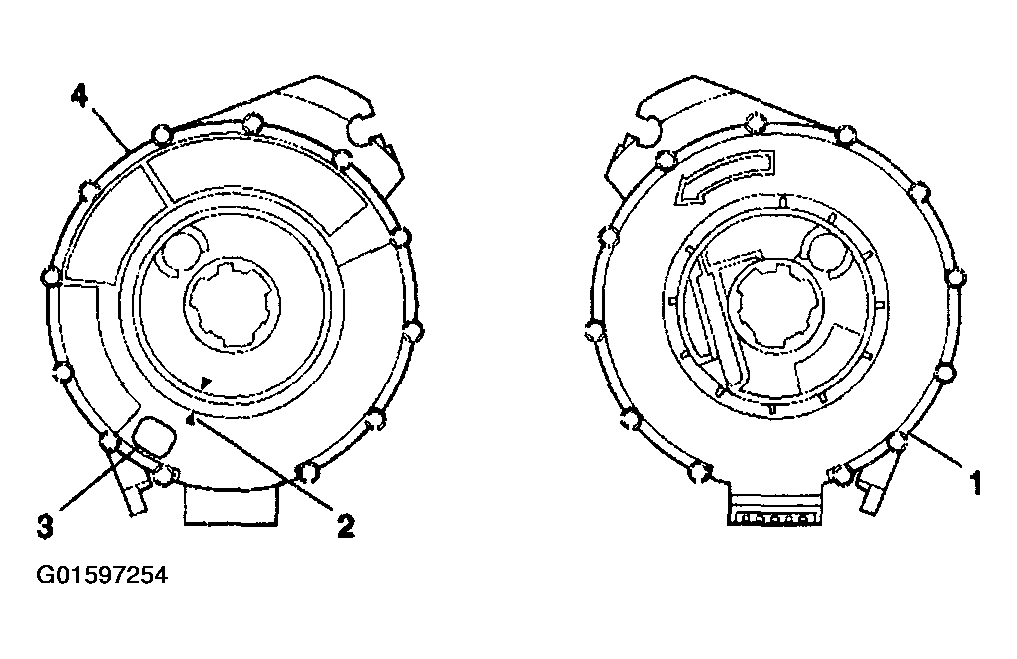

    Fig 3: Identifying SIR Coil Assembly Centering Window
    G01597254Courtesy of GENERAL MOTORS CORP.
  4. If no centering window is present on the front side (3) of the SIR coil, and a spring service lock (1) is on the back side (2), perform the following steps:
    1. Hold the coil with the back side up.
    2. While depressing the spring service lock, rotate the coil hub in the direction of the arrow (4) until the coil ribbon stops.
    3. Still pressing the spring service lock, rotate the coil hub in the opposite direction 2 1/2 revolutions.
    4. Release the spring service lock between the locking tabs. The SIR coil is now centered.
    5. Align the centered coil with the horn tower and slide the coil onto the steering shaft assembly.

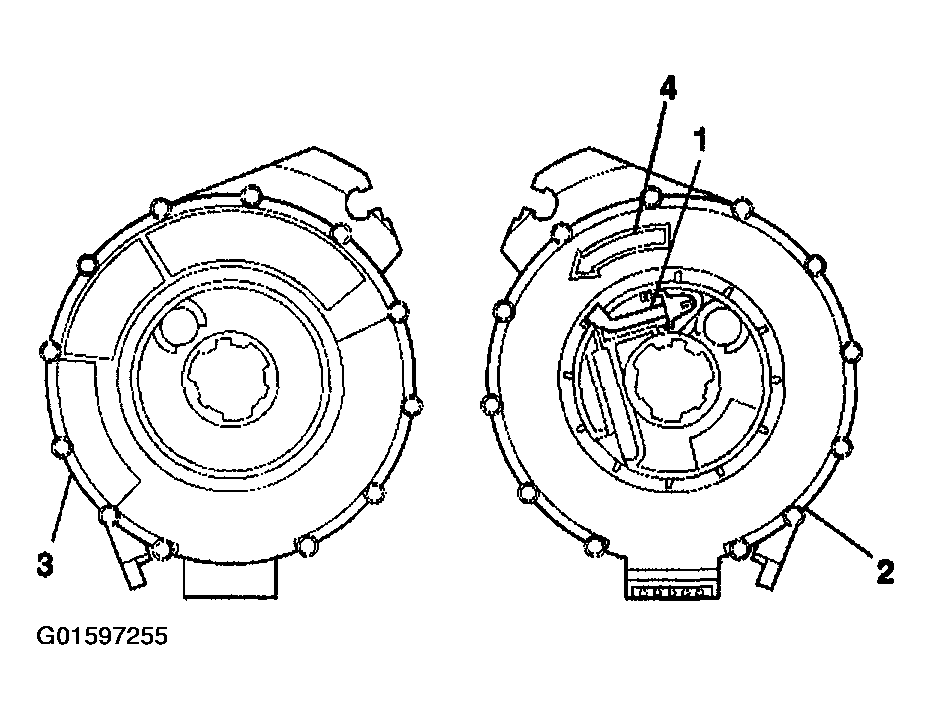

    Fig 4: Identifying SIR Coil Assembly Spring Service Lock
    G01597255Courtesy of GENERAL MOTORS CORP.
  5. If no centering window appears on the front side (2) of the SIR coil and no spring service lock exists on the back side (1), perform the following steps:
    1. Hold the coil with the face up.
    2. Rotate the coil hub in the direction of the arrow until the coil ribbon stops.
    3. Rotate the coil hub, slowly, counterclockwise, for 2 1/2 revolutions. This is the CENTER position.
    4. While maintaining the coil hub in the CENTER position, align the centered coil with the horn tower and slide the coil onto the steering shaft assembly.

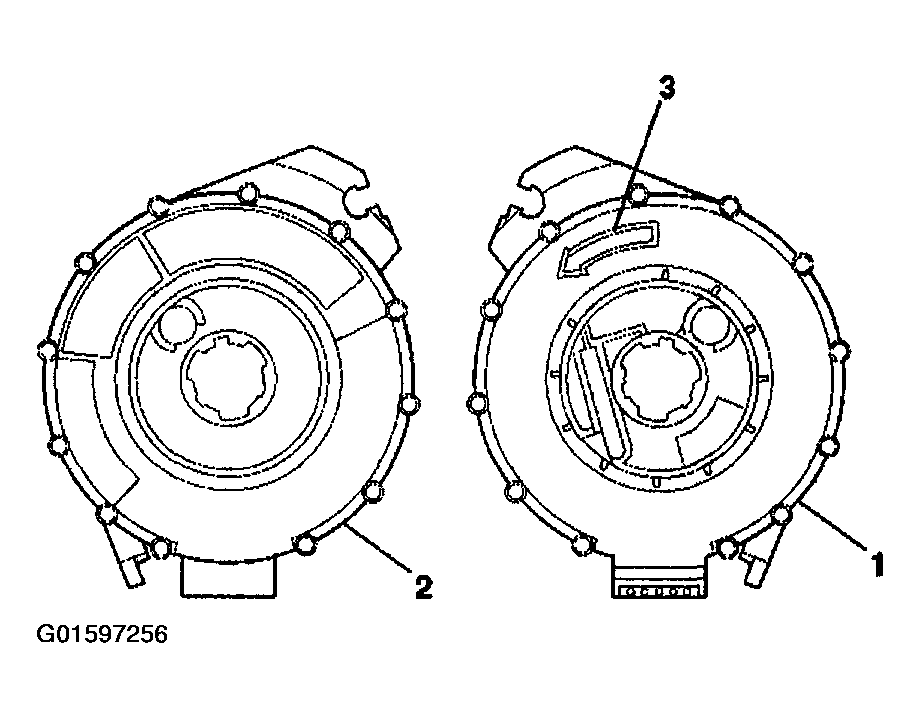

    Fig 5: Identifying SIR Coil Assembly
    G01597256Courtesy of GENERAL MOTORS CORP.
