Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
  2. Remove the turn signal cancel cam and upper bearing. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT   .
  3. Remove the ignition switch assembly. Refer to IGNITION SWITCH REPLACEMENT   .
  4. Remove 3 pan head tapping screws (2) from the ignition lock cylinder case assembly (1).

    Remove the ignition lock cylinder case from the steering column.

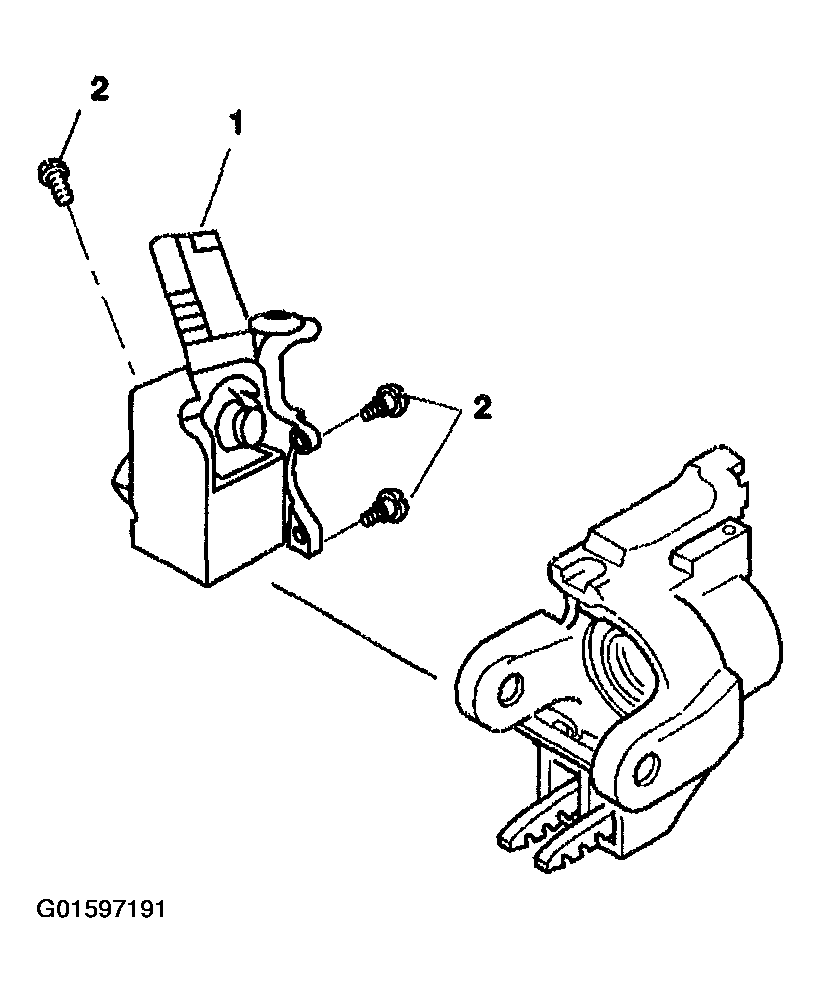

    Fig 1: Removing Ignition Lock Cylinder Case From Steering Column
    G01597191Courtesy of GENERAL MOTORS CORP.
