Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the ignition lock cylinder case assembly (1) with the steering column tilt head assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Secure the ignition lock cylinder case assembly (1) to the steering column using 3 pan head tapping screws (2).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  3. Install the ignition switch assembly. Refer to IGNITION SWITCH REPLACEMENT   .
  4. Install the turn signal cancel cam and upper bearing. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT   .
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.

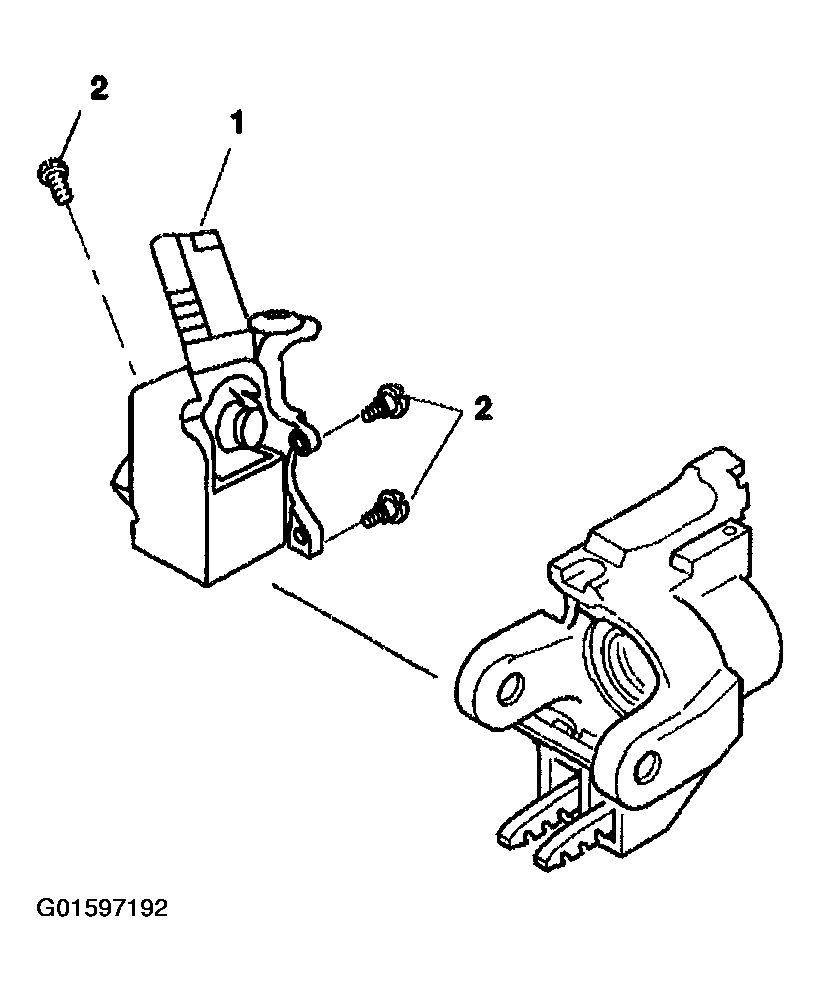

    Fig 1: Installing Ignition Lock Cylinder Case To Steering Column
    G01597192Courtesy of GENERAL MOTORS CORP.
