Steering Column Tilt Function Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

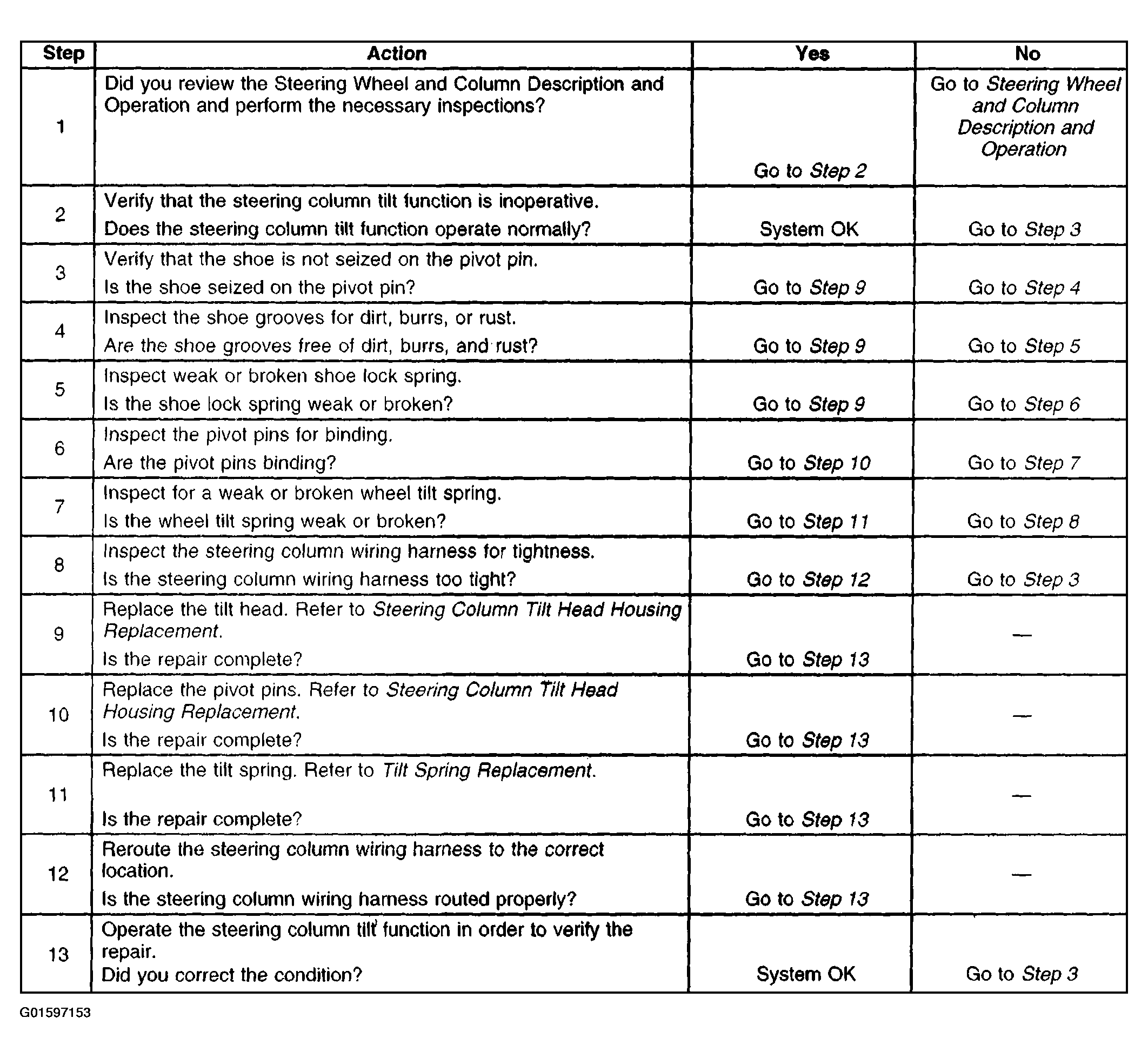

Fig 1: Symptom Diagnostic Procedure Chart - Steering Column Tilt Function Inoperative
G01597153Courtesy of GENERAL MOTORS CORP.
