Automatic Transmission Shift Lock Actuator

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

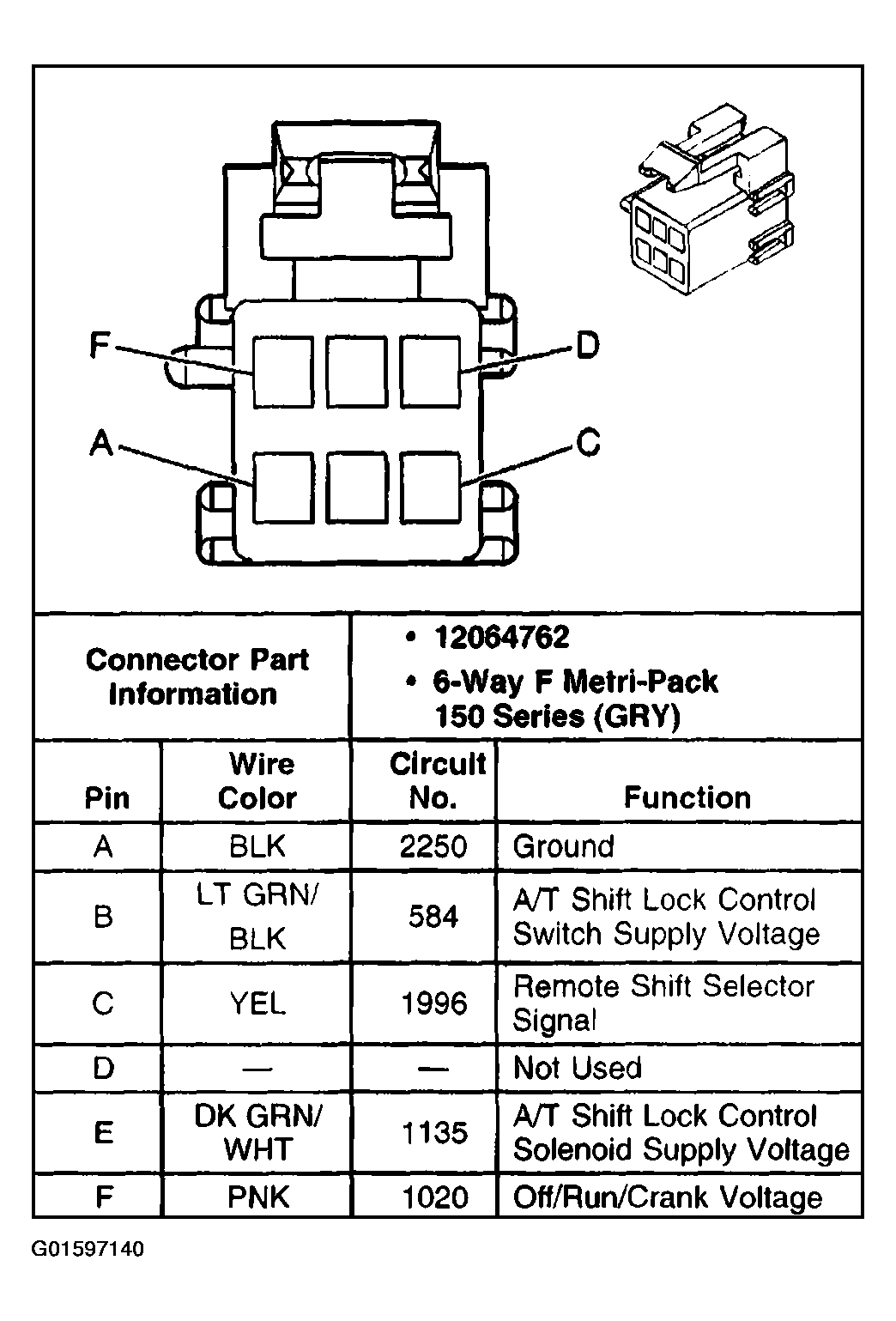

Fig 1: Identifying Automatic Transmission Shift Lock Actuator Connector & Pin Function Specifications
G01597140Courtesy of GENERAL MOTORS CORP.
