Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Remove the outer tie rod retaining nut.

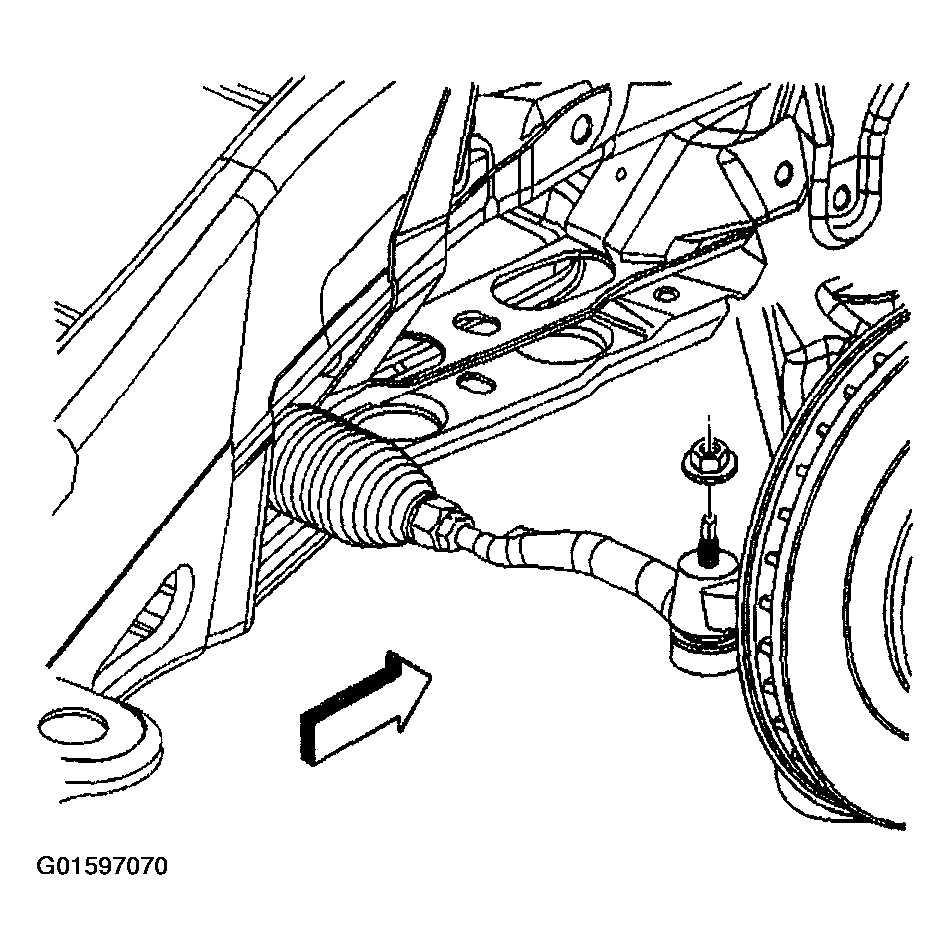

Fig 1: Removing Outer Tie Rod Retaining Nut
Courtesy of GENERAL MOTORS CORP.

NOTE: Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.
Disconnect the outer tie rod from the steering knuckle using J24319-B.

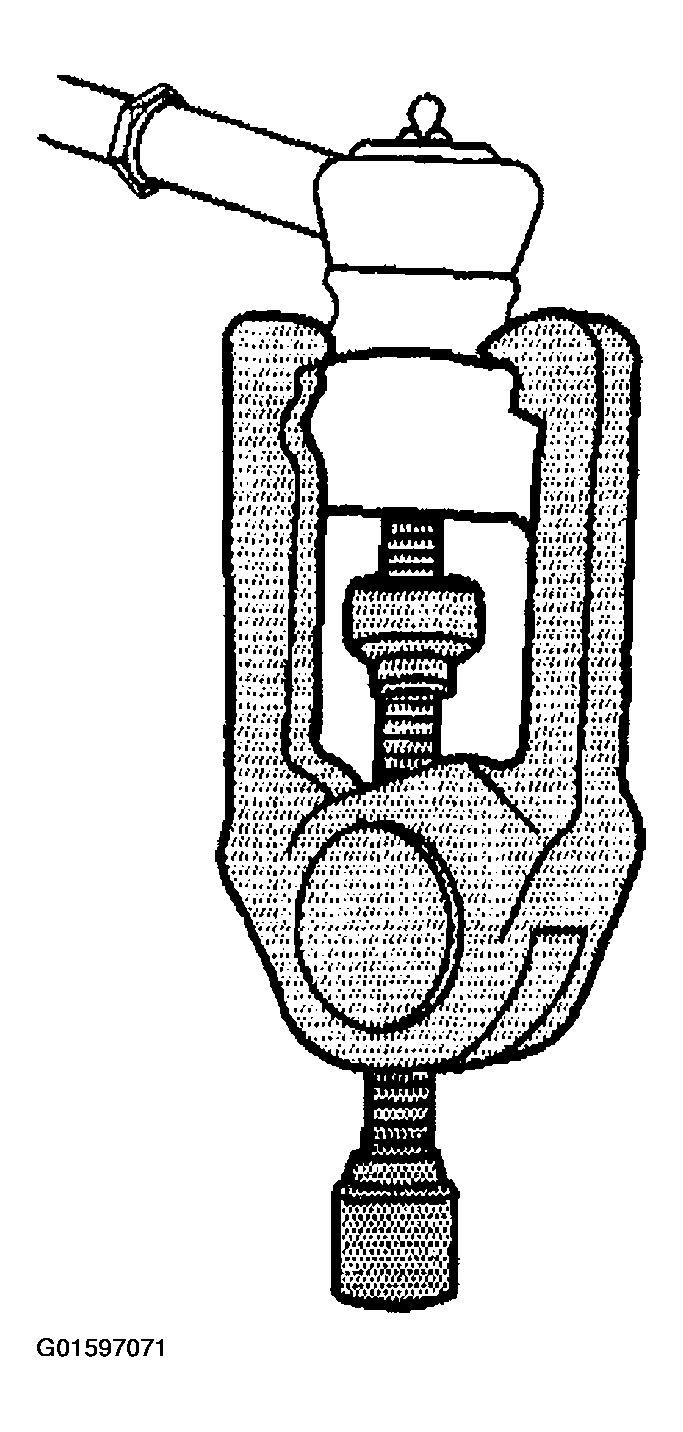

Fig 2: Disconnecting Outer Tie Rod From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Loosen the jam nut (1) and remove the outer tie rod (2) from the inner tie rod (3).
Do not reuse the jam nut.
Inspect the shaft for bent or damaged threads.
Clean the tapered surface of the steering knuckle.

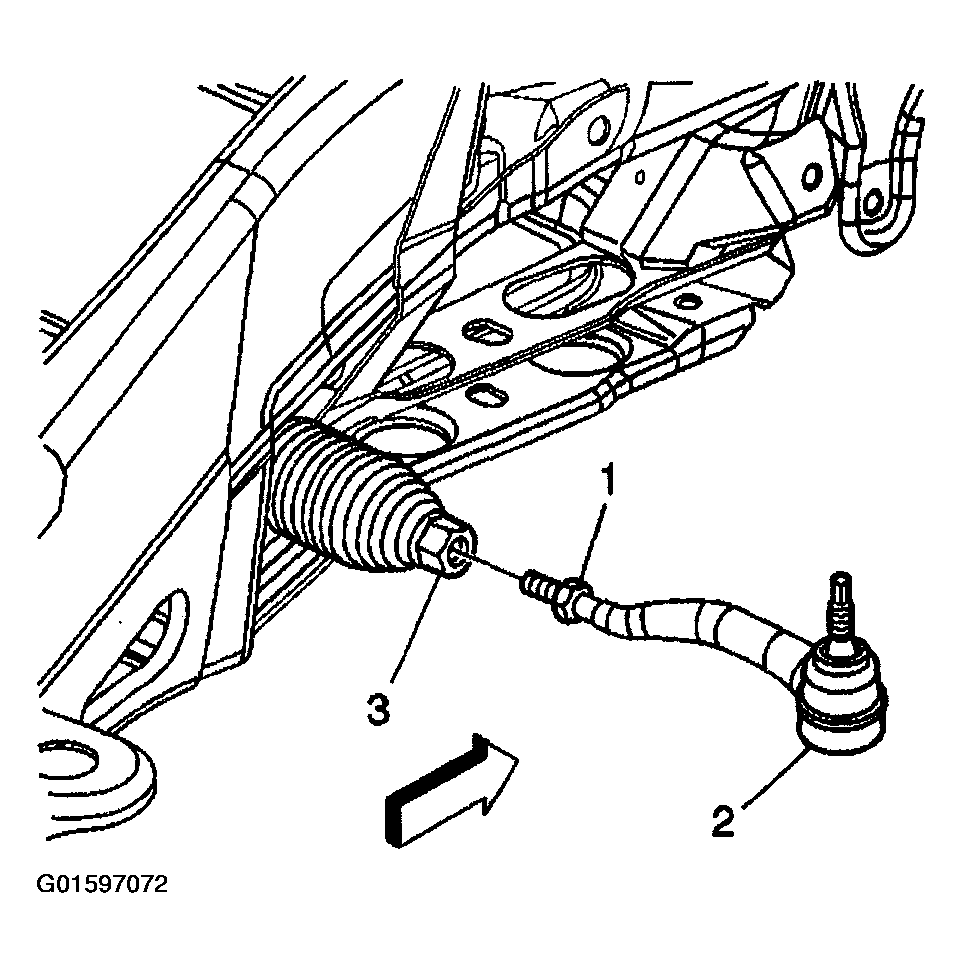

Fig 3: Removing Outer Tie Rod From Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
