Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Protect the boots from sharp tools and from the sharp edges of surrounding components.
  1. Remove the TORX® screw (1) from the cylinder line retaining plate (2) at the valve end.
  2. Remove the cylinder line retaining plate (2).

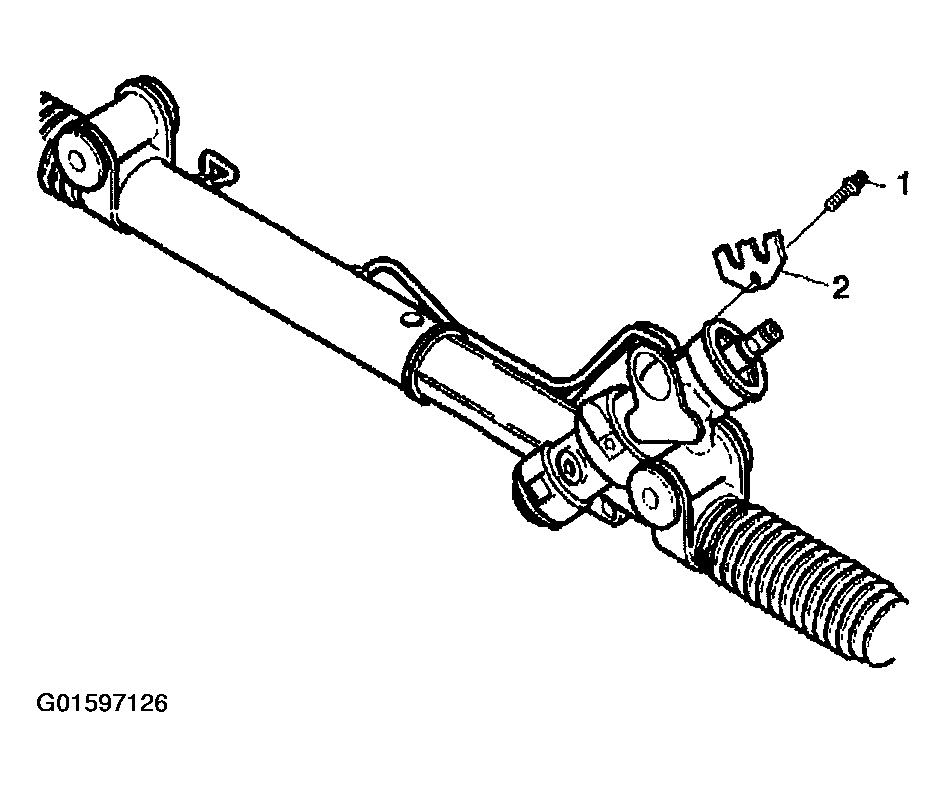

    Fig 1: Removing TORX Screw And Cylinder Line Retaining Plate
    G01597126Courtesy of GENERAL MOTORS CORP.
  3. Loosen both cylinder line nuts (3) on cylinder end of the gear assembly (1).
  4. Remove both cylinder line assemblies (2) from the rack and pinion gear assembly (1).
  5. Remove and discard the O-rings seals (4) from the valve end (5).

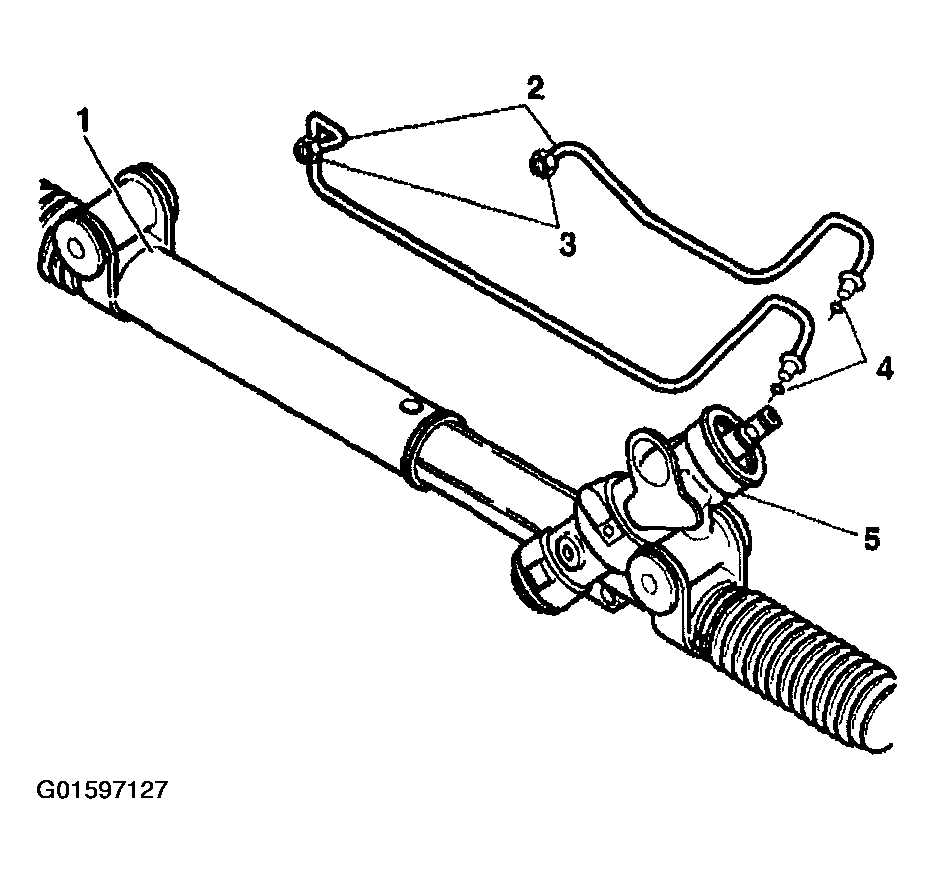

    Fig 2: Removing Cylinder Line Assemblies From Rack And Pinion Gear Assembly
    G01597127Courtesy of GENERAL MOTORS CORP.
