Disassembly Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the hydraulic pump (1) on a fixed, flat surface, with the shaft facing upward.
  2. Insert a screwdriver into the retaining clip tab (3).
  3. Using the screwdriver, force the retaining clip tab (3) outward.
  4. Slide the reservoir clip (4) away from the hydraulic pump assembly (1).
  5. Repeat the above steps to remove the second reservoir clip (4).
  6. Remove the reservoir (2) from the hydraulic pump housing (1).
  7. Remove the O-ring seal from the neck of the reservoir (2) or inside the hydraulic pump housing (1). Discard the O-ring seal.

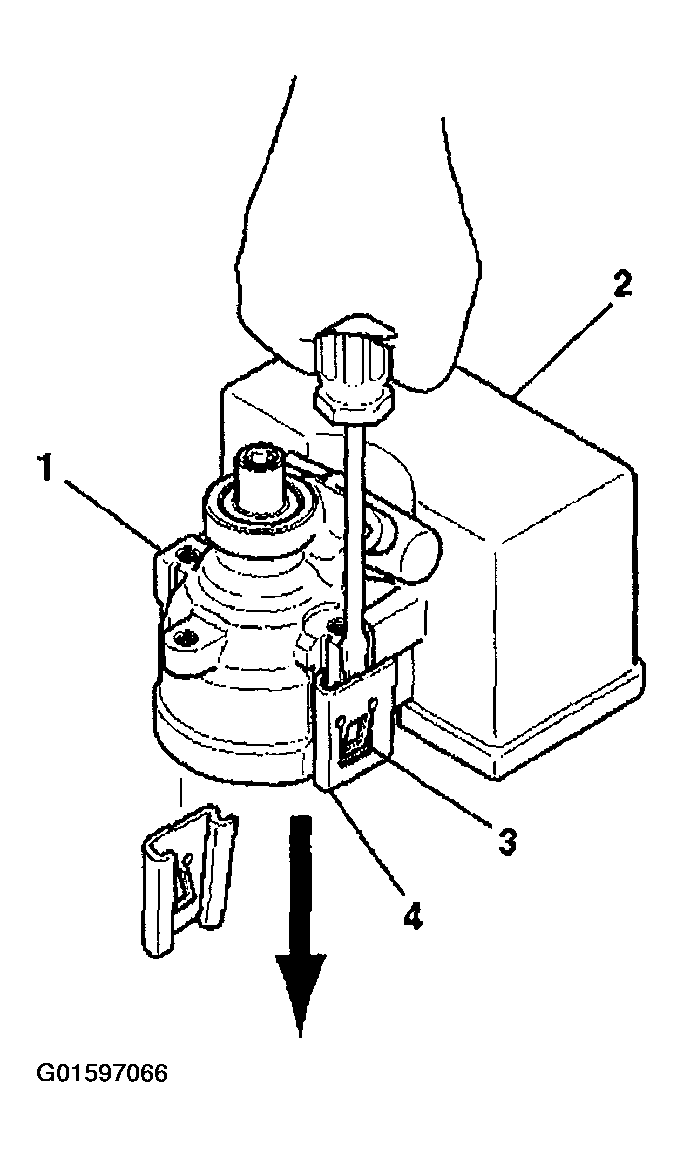

    Fig 1: Removing Reservoir Clip From Hydraulic Pump Assembly
    G01597066Courtesy of GENERAL MOTORS CORP.
