Assembly Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new O-ring seal with power steering fluid.
  2. Install the new O-ring seal onto the neck of the reservoir (2).
  3. Install the reservoir (2) onto the hydraulic pump assembly (1). Ensure the reservoir neck is completely engaged onto the hydraulic pump assembly (1).
  4. Align the feet of the reservoir with the sides of the hydraulic pump housing.
  5. Install the new reservoir retaining clips (4) (supplied with the pump). Ensure the retaining clip tabs (3) fully engage with the hydraulic pump housing (1).

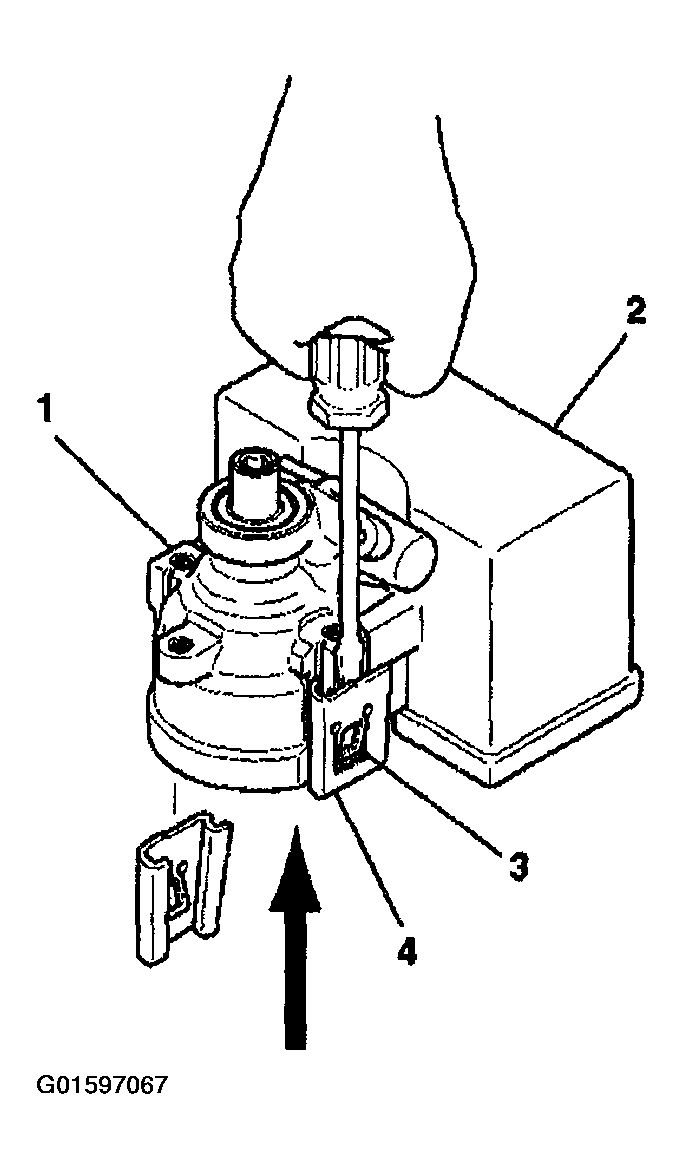

    Fig 1: Installing Reservoir Clip To Hydraulic Pump Assembly
    G01597067Courtesy of GENERAL MOTORS CORP.
