Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (4.2L)   or POWER STEERING PUMP REPLACEMENT (5.3L)   .
  2. Remove the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT  in Engine Mechanical - 4.2L.
  3. Remove the power steering pump bracket mounting bolts.
  4. Remove the power steering pump bracket.

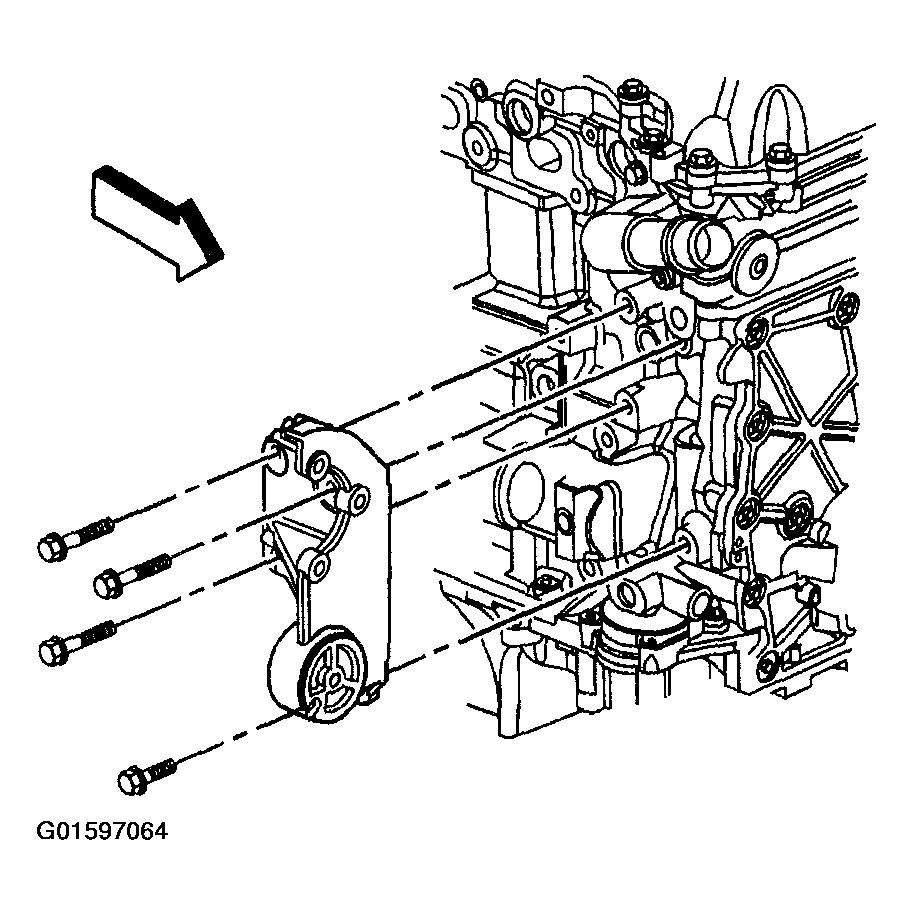

    Fig 1: Removing Power Steering Pump Bracket Mounting Bolts
    G01597064Courtesy of GENERAL MOTORS CORP.
