Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper radiator air intake baffle. Refer to AIR INTAKE BAFFLE REPLACEMENT - RADIATOR  in Body Front End.
  2. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  in Engine Mechanical 4.2L.
  3. Remove the power steering pump pulley using J 25034-C.

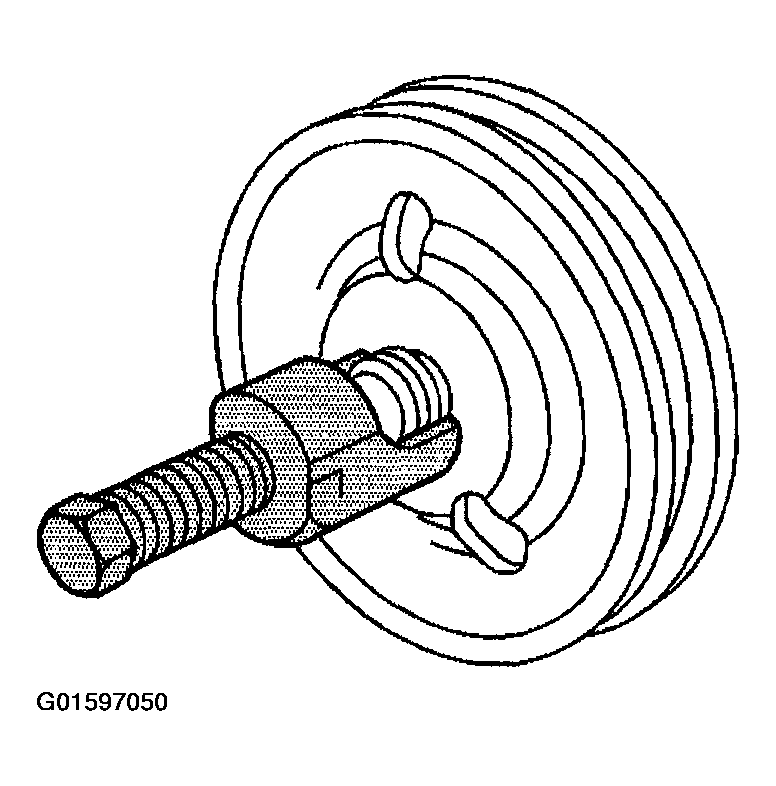

    Fig 1: Removing Power Steering Pump Pulley (4.2L)
    G01597050Courtesy of GENERAL MOTORS CORP.
