Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install drain pan under vehicle.
Disconnect the power steering pressure (1) and return hose (3) from the power steering pump (2).
Raise and support vehicle with suitable safety stands. Refer to JACKING AND LIFTING in General Information.

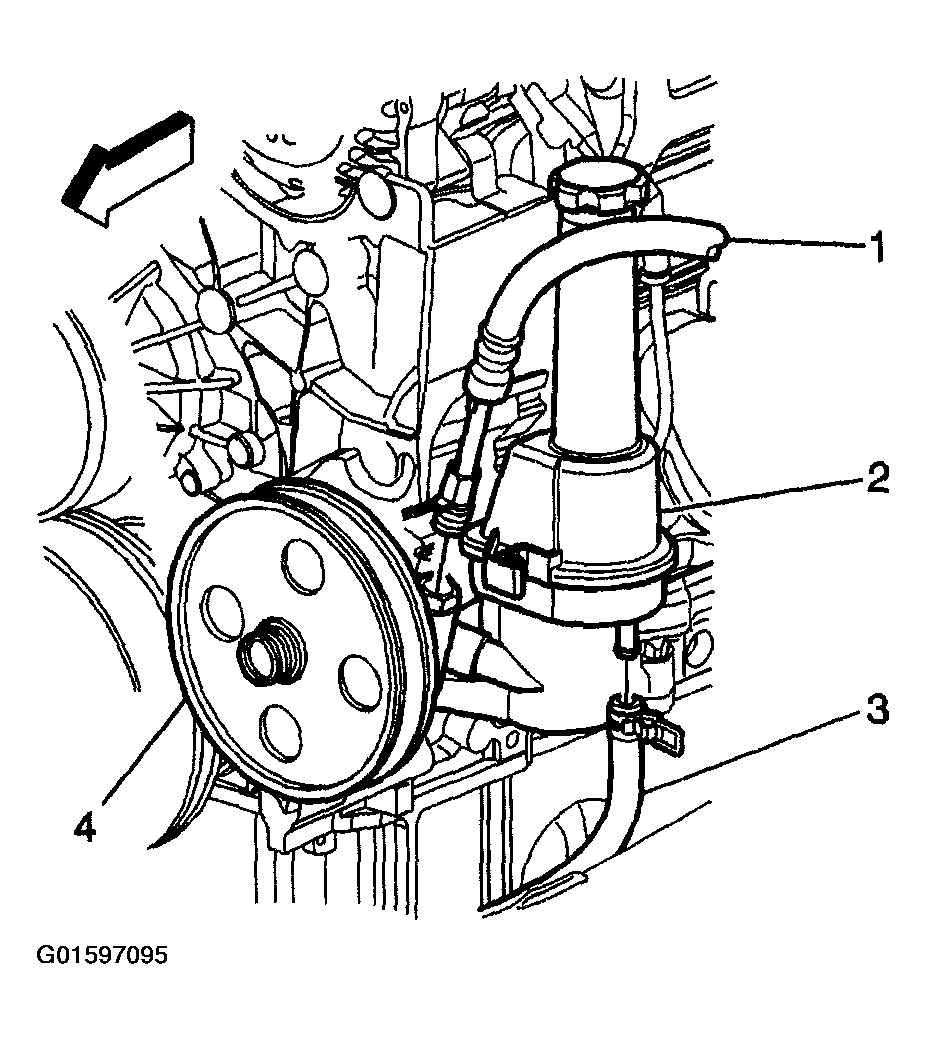

Fig 1: Disconnecting Power Steering Pressure And Return Hose From Power Steering Pump (5.3L)
Courtesy of GENERAL MOTORS CORP.
Disconnect the power steering hose assembly from the power steering cooler.
Lower the vehicle.
Remove the PCM from PCM mounting bracket and position out of the way. Refer to POWERTRAIN CONTROL MODULE in Engine Controls - 5.3L.

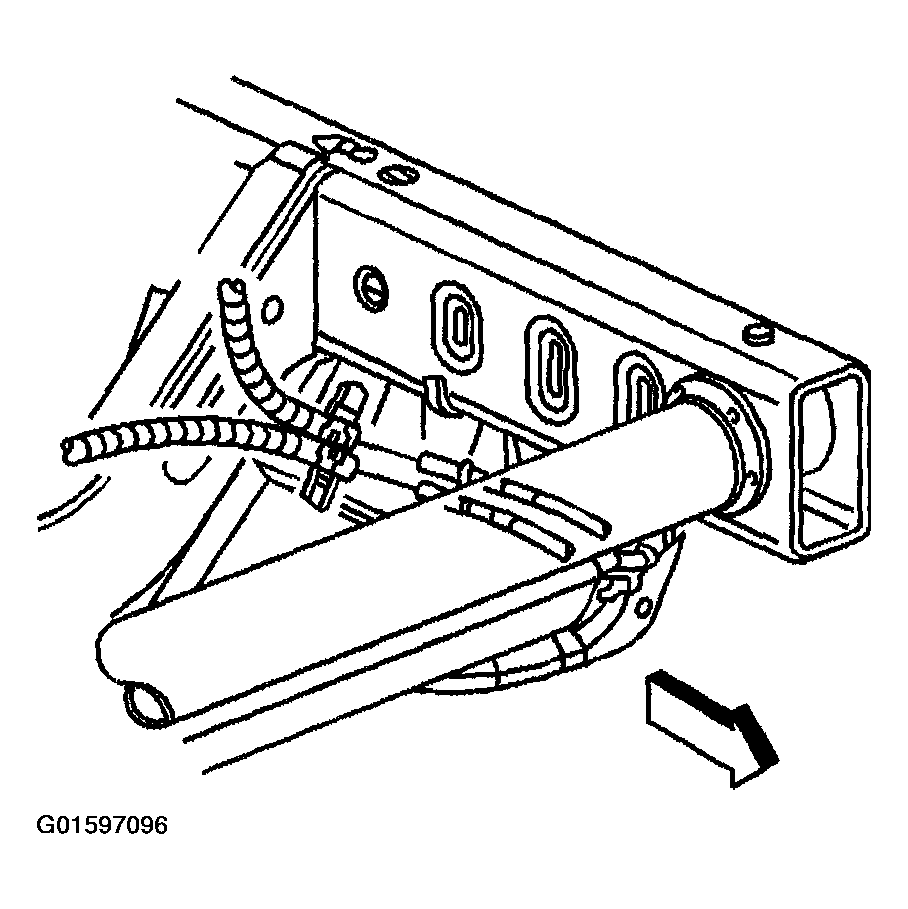

Fig 2: Disconnecting Power Steering Hose Assembly From Power Steering Cooler (5.3L)
Courtesy of GENERAL MOTORS CORP.
Raise the vehicle.
Remove power steering hose assembly (1) to power steering gear mounting bolt (2).
Disconnect the power steering hose assembly from the power steering gear (3).

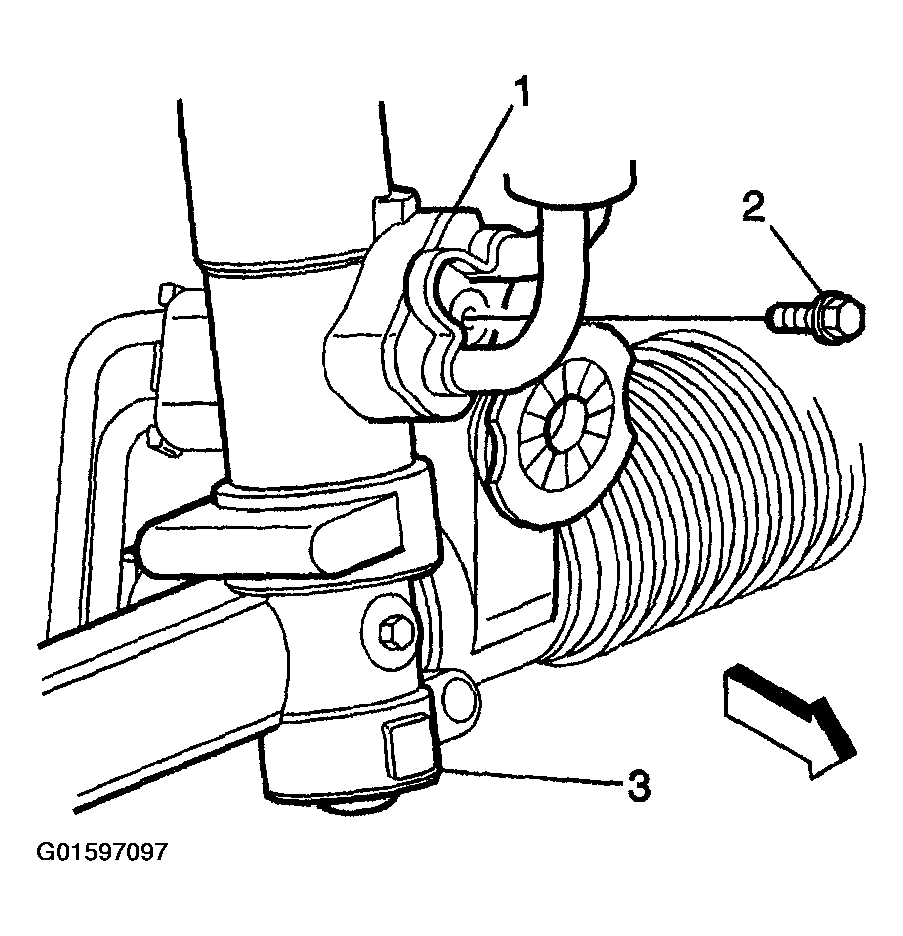

Fig 3: Removing Power Steering Gear Mounting Bolt (5.3L)
Courtesy of GENERAL MOTORS CORP.
Remove the power steering hose assembly (1) front bracket mounting bolt (3).
Disconnect the power steering pressure hose from retaining clip.
Remove the power steering hose assembly rear bracket mounting bolt (2).
Remove the power steering hose assembly from the vehicle.
