Power Steering Cooler Replacement (5.3L): Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING AND LIFTING - 2WD in General Information.
Place drain pan under vehicle.
Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET, GMC) or FASCIA REPLACEMENT - FRONT BUMPER (OLDSMOBILE) in Bumpers.
Disconnect the power steering cooler hoses from the power steering cooler.

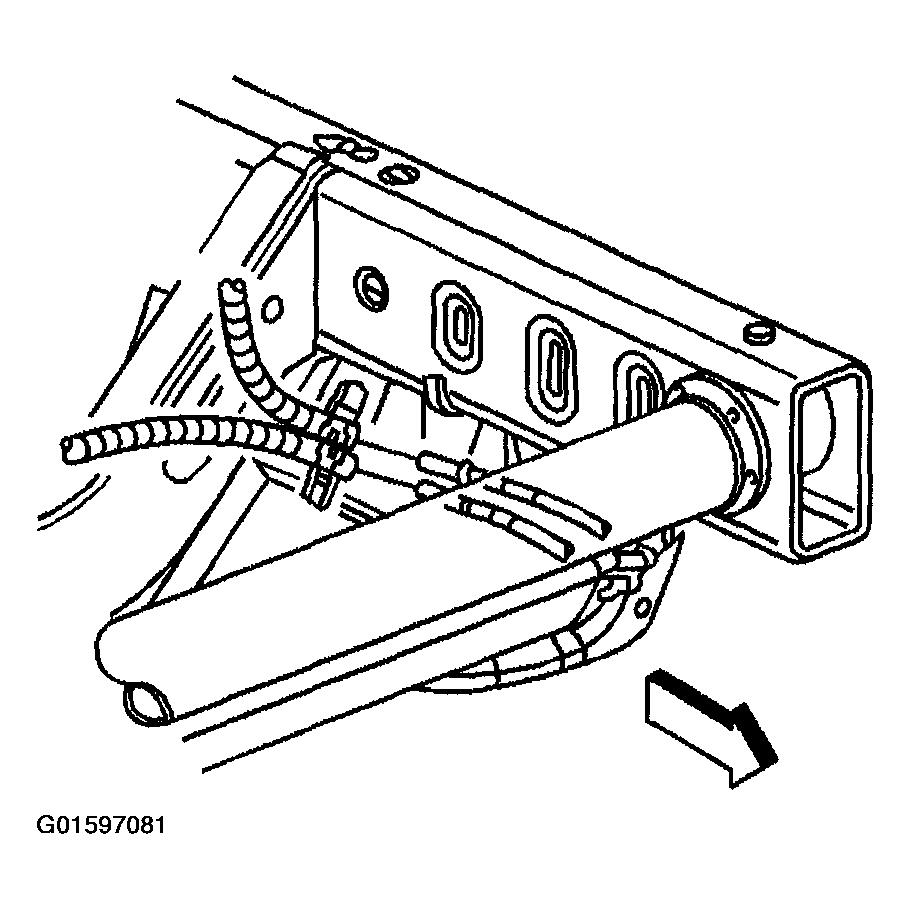

Fig 1: Disconnecting Power Steering Cooler Hoses From Power Steering Cooler (5.3L)
Courtesy of GENERAL MOTORS CORP.
Remove the power steering cooler mounting bolts.

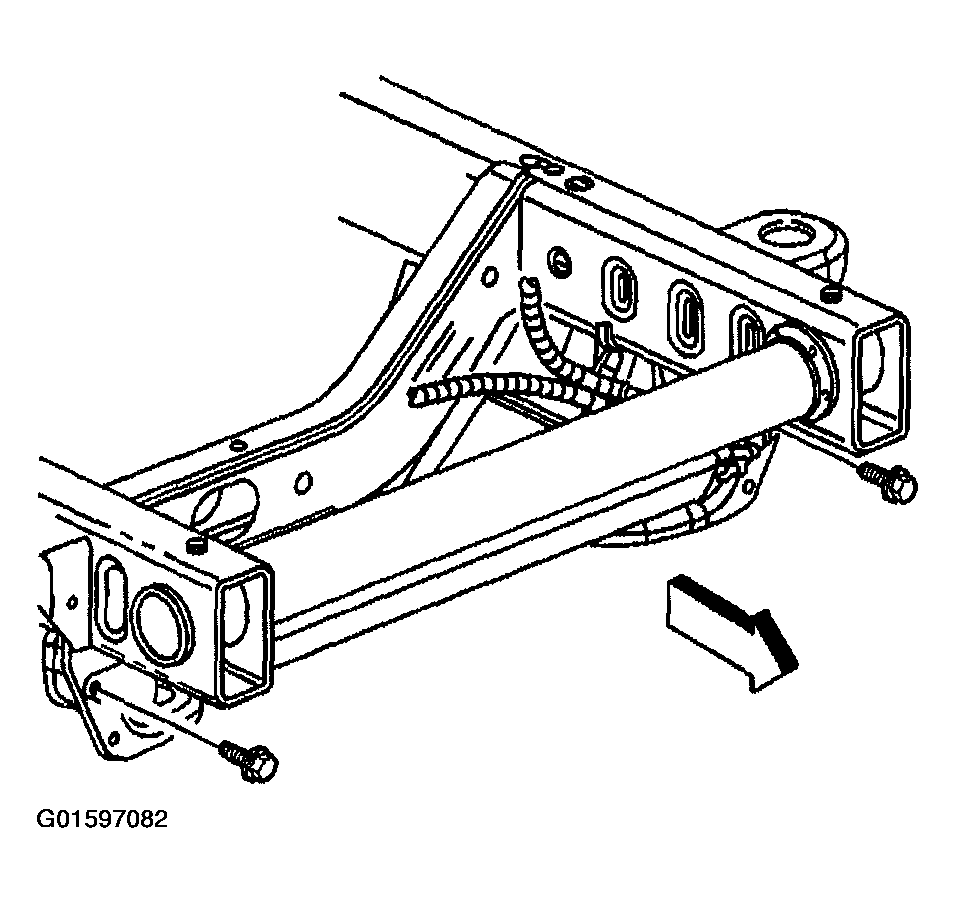

Fig 2: Removing Power Steering Cooler Mounting Bolts (5.3L)
Courtesy of GENERAL MOTORS CORP.
Remove the power steering cooler from the radiator support.

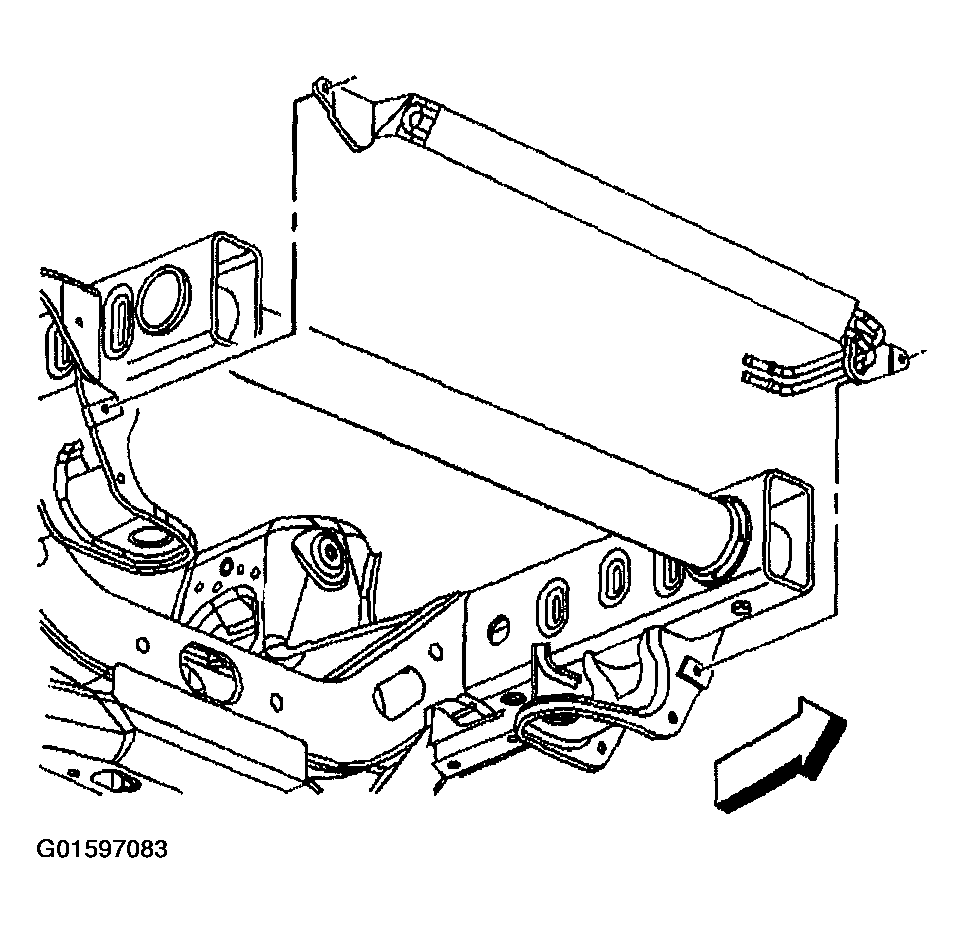

Fig 3: Removing Power Steering Cooler From Radiator Support (5.3L)
Courtesy of GENERAL MOTORS CORP.
