Power Steering Cooler Replacement (5.3L): Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering cooler to the radiator support.

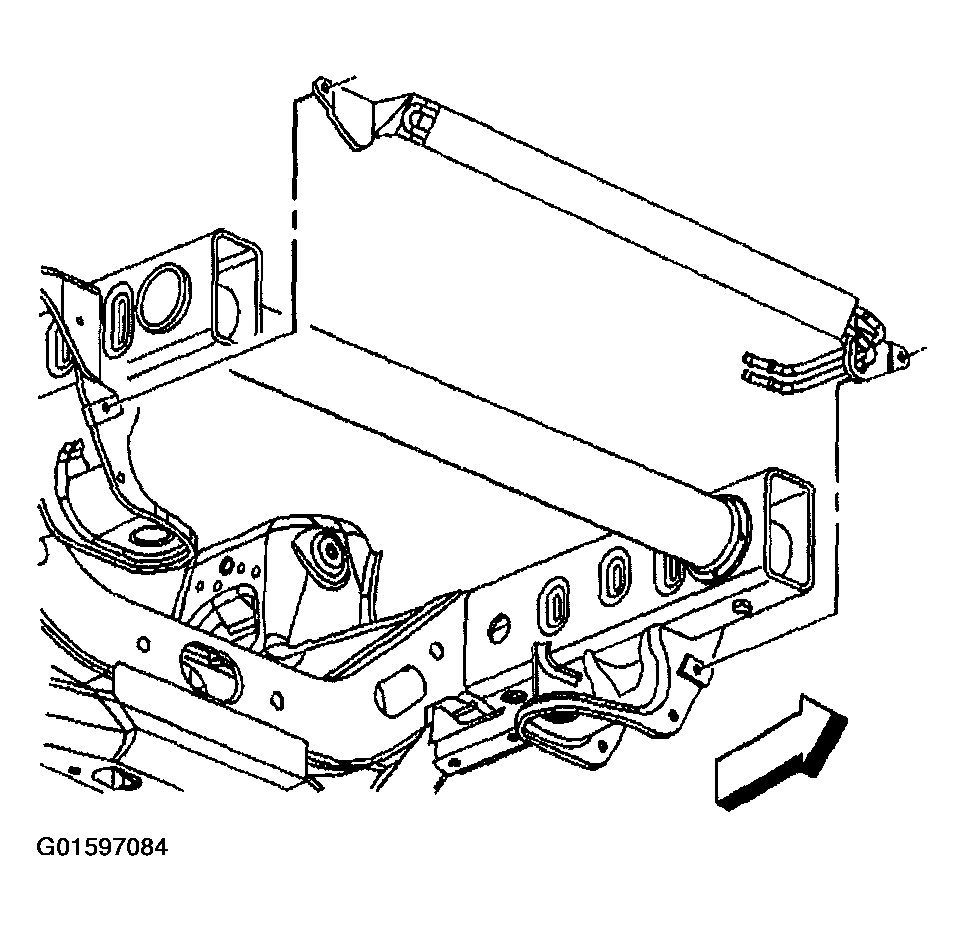

    Fig 1: Installing Power Steering Cooler To Radiator Support (5.3L)
    G01597084Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering cooler mounting bolts.

    Tighten

    Tighten the power steering cooler mounting to 20 N.m (15 lb ft).

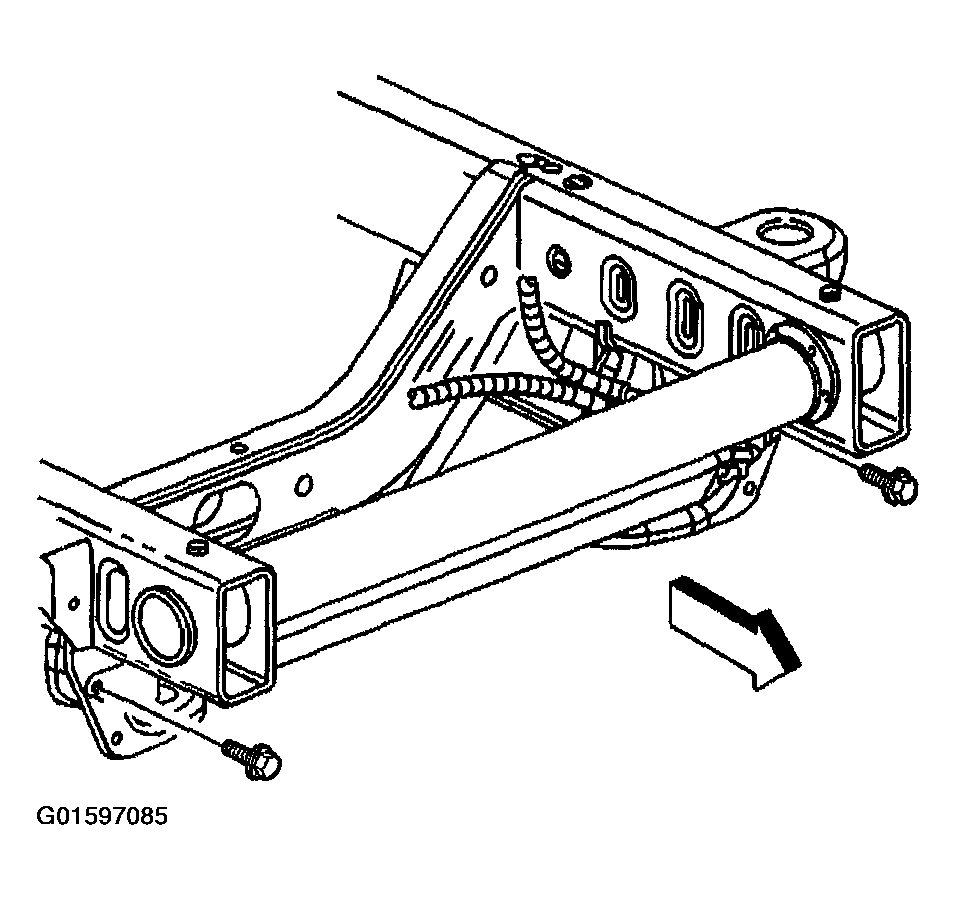

    Fig 2: Installing Power Steering Cooler Mounting Bolts (5.3L)
    G01597085Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering cooler hoses to the power steering cooler.
  4. Install the front facial. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET, GMC)  or FASCIA REPLACEMENT - FRONT BUMPER (OLDSMOBILE)  in Bumpers.
  5. Remove the drain pan from under the vehicle.
  6. Lower the vehicle.
  7. Start vehicle and inspect power steering fluid level.
  8. Add power steering fluid in needed.

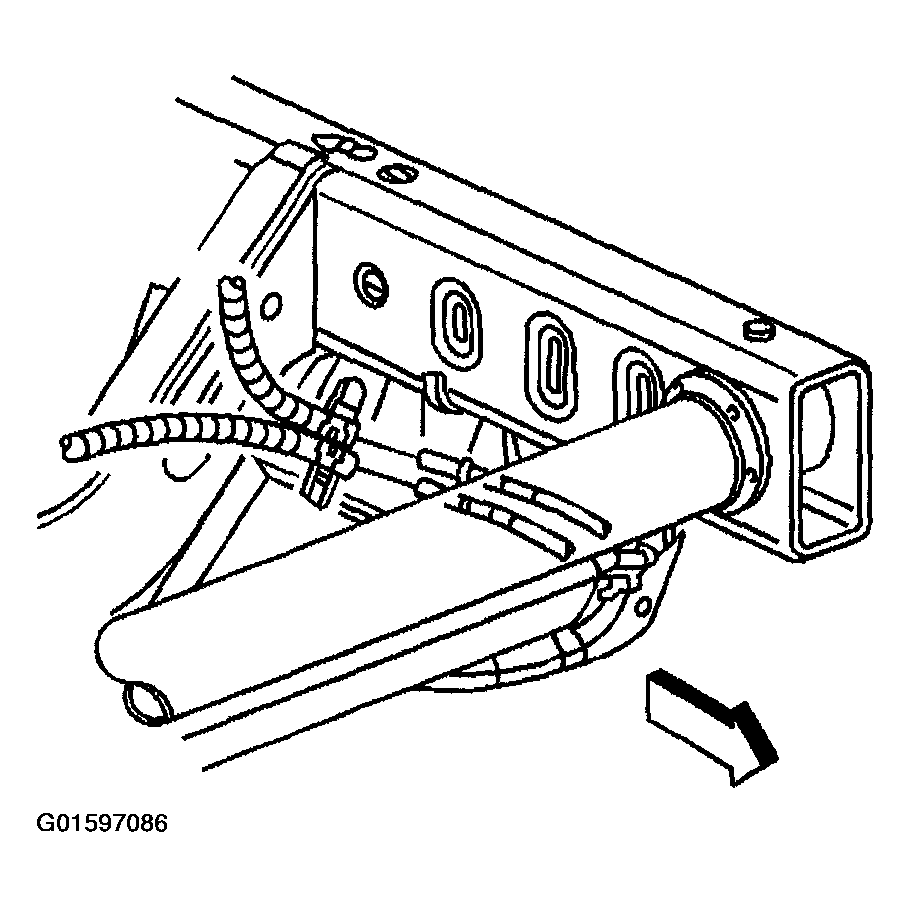

    Fig 3: Connecting Power Steering Cooler Hoses To Power Steering Cooler (5.3L)
    G01597086Courtesy of GENERAL MOTORS CORP.
