HVAC Schematics (Steering Wheel Controls)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

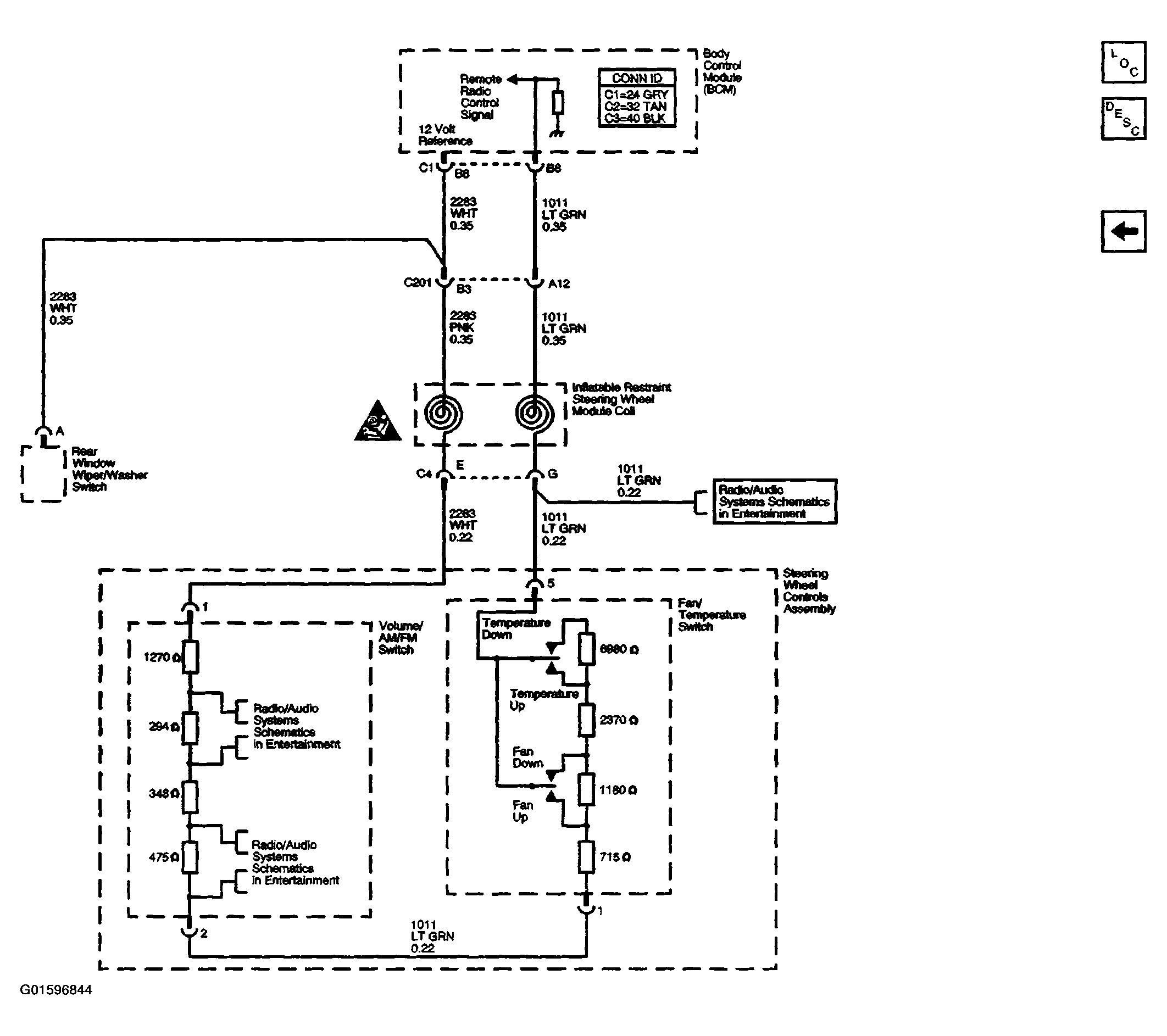

Fig 1: HVAC Wiring Schematic (Steering Wheel Controls)
G01596844Courtesy of GENERAL MOTORS CORP.
