HVAC Schematics (Module Power, Ground, Serial Data, Blower Motor, & Coolant Bypass Valve)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

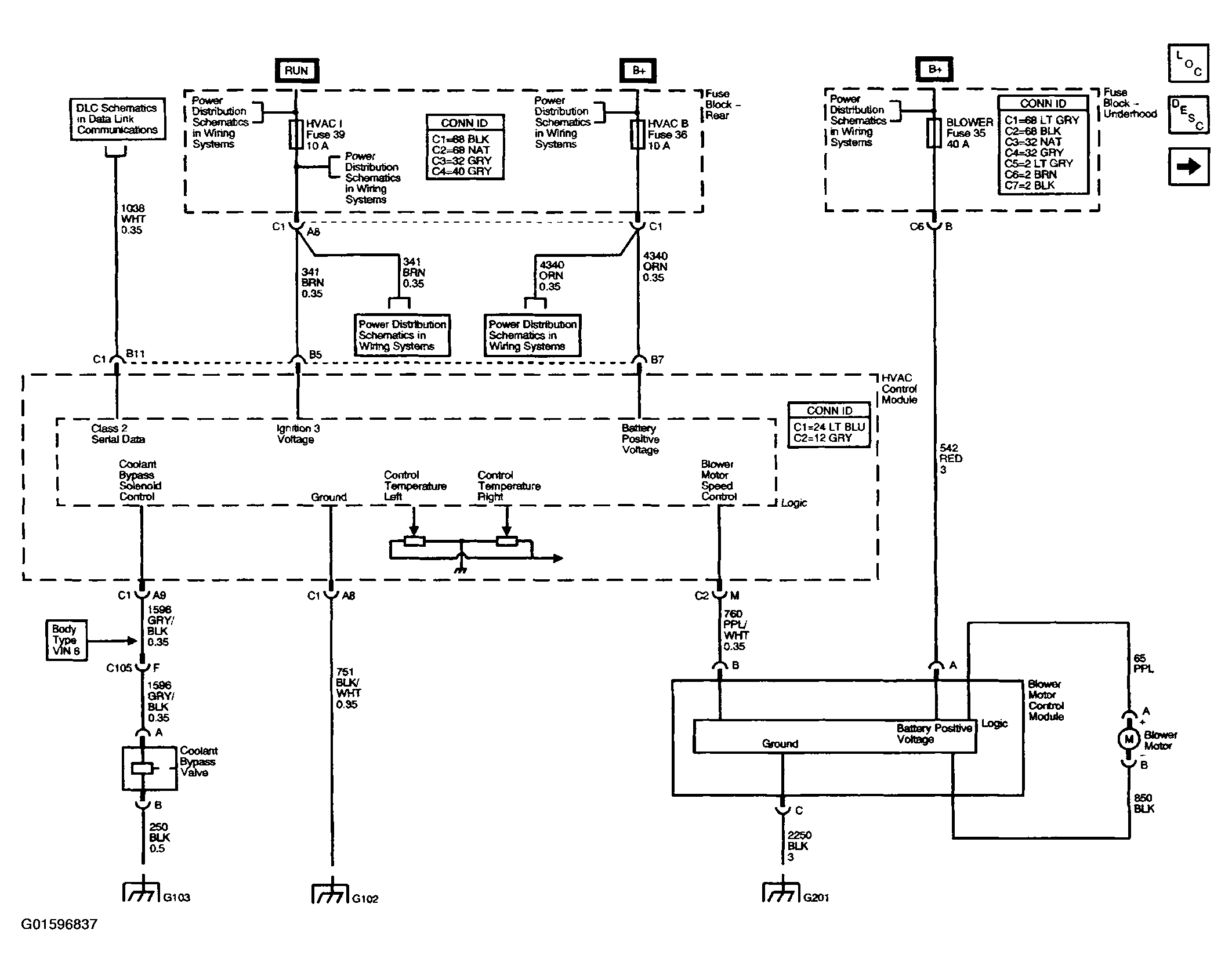

Fig 1: HVAC Wiring Schematic (Module Power, Ground, Serial Data, Blower Motor, & Coolant Bypass Valve)
G01596837Courtesy of GENERAL MOTORS CORP.
