HVAC Schematics (Ambient Light/Sunload Sensor)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

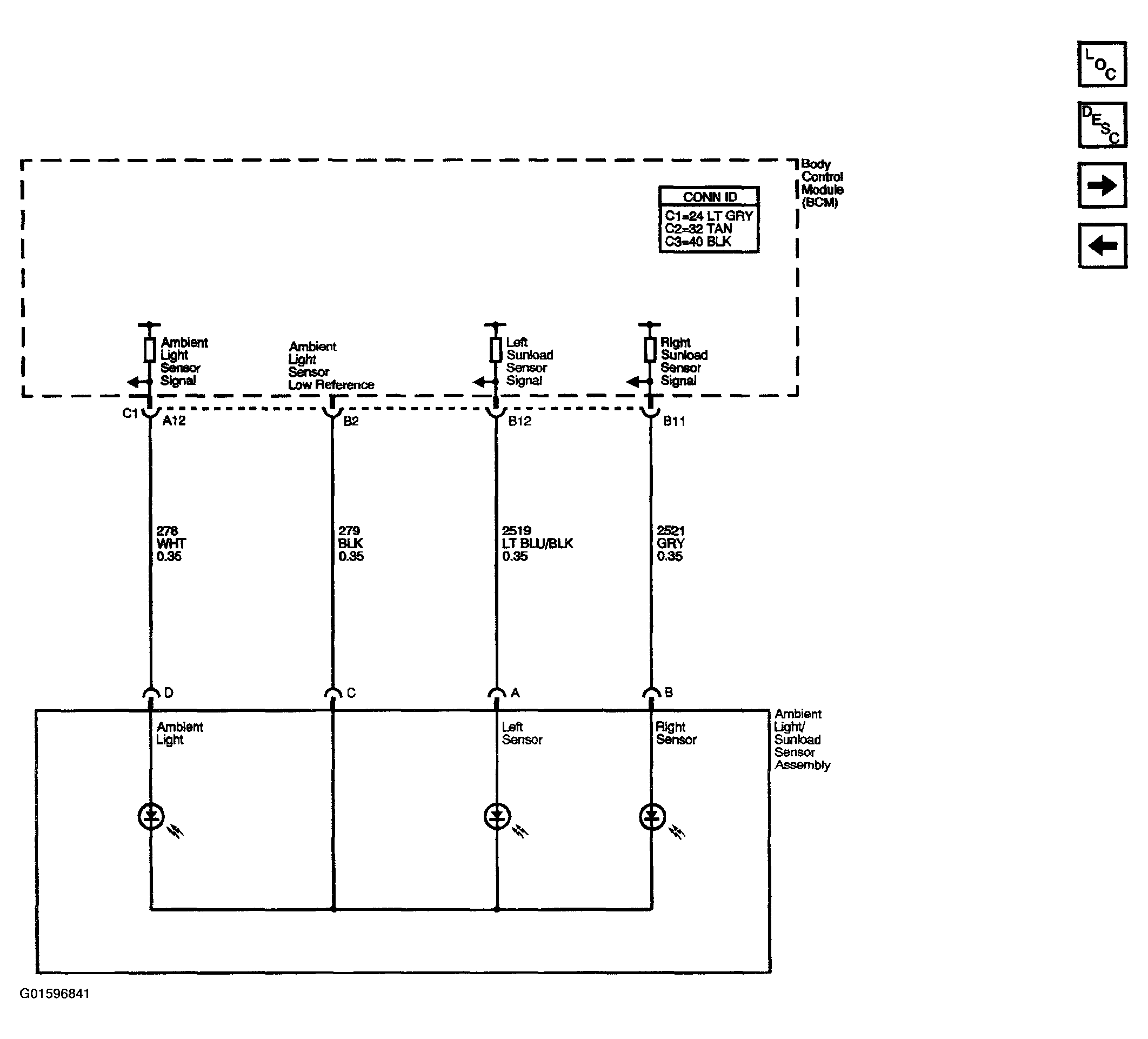

Fig 1: HVAC Wiring Schematic (Ambient Light/Sunload Sensor)
G01596841Courtesy of GENERAL MOTORS CORP.
