Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  in Heating, Ventilation and Air Conditioning.
  2. Remove the air inlet assembly.
  3. Remove the screws from the air inlet assembly.
  4. Remove the recirculation actuator screws.
  5. Remove the recirculation actuator.

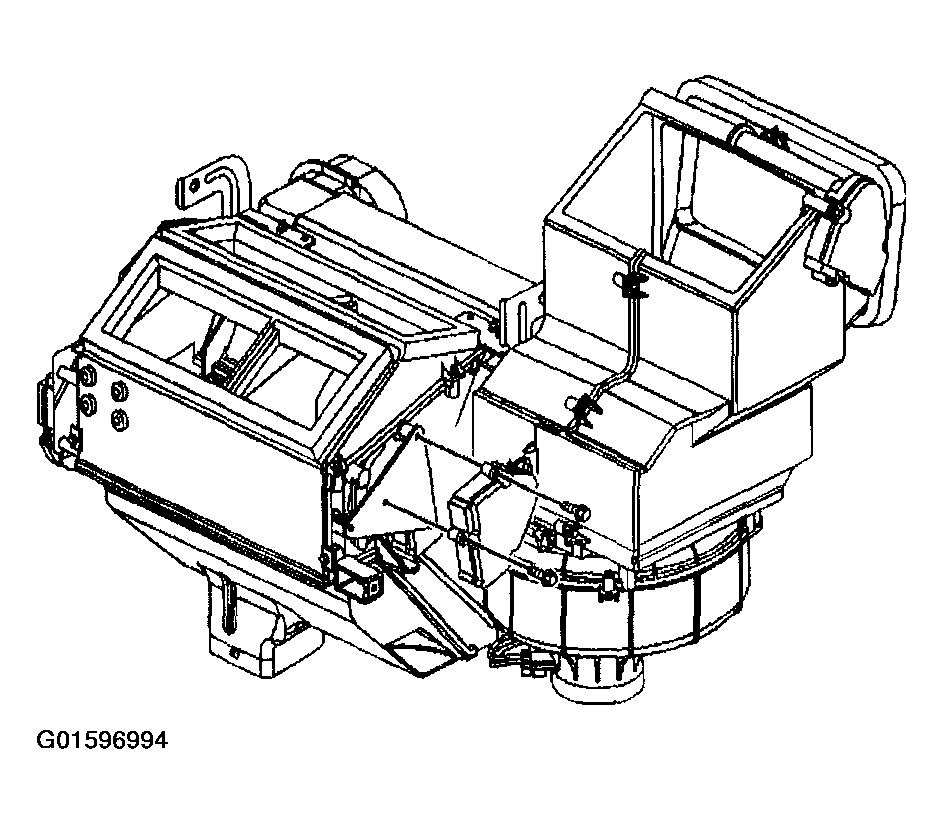

    Fig 1: View Of Recirculation Actuator
    G01596994Courtesy of GENERAL MOTORS CORP.
