Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT  in Instrument Panel, Gages, and Console.
  2. Remove the screw from the air outlet duct.
  3. Remove the air outlet duct from the console.
  4. Remove the rear mode actuator retaining screws.

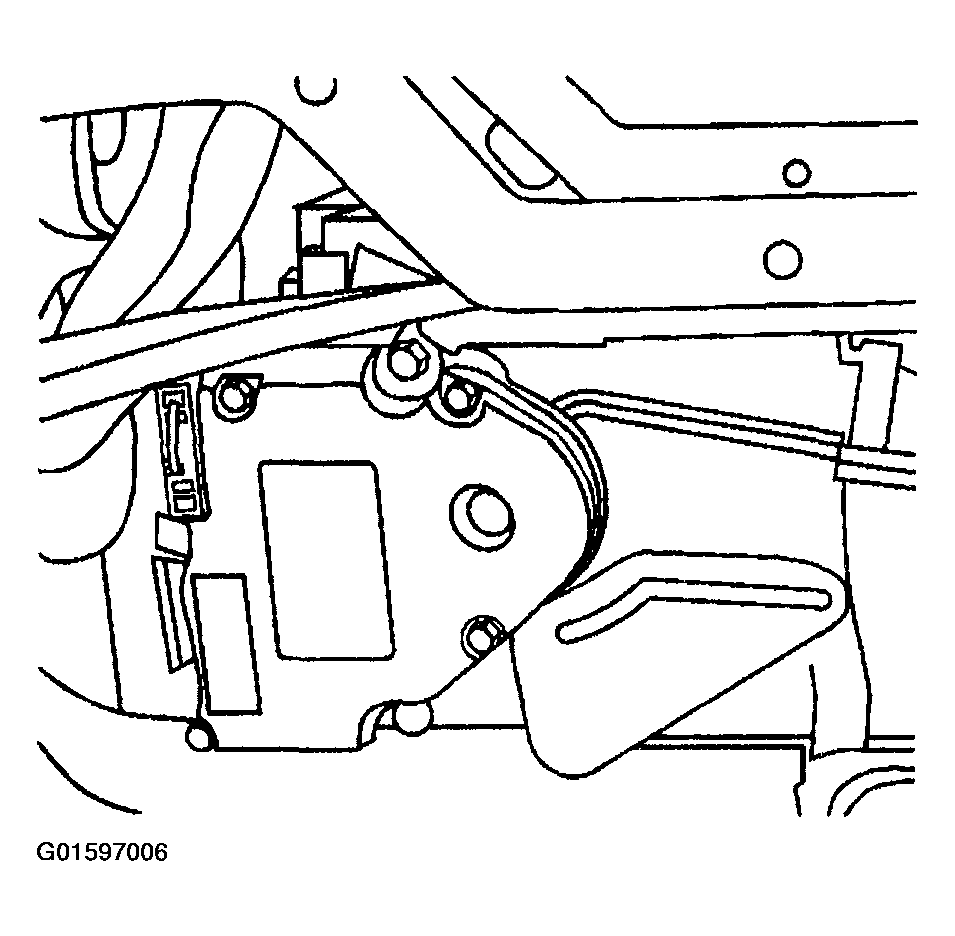

    Fig 1: Locating Rear Mode Actuator Retaining Screws
    G01597006Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear mode actuator.

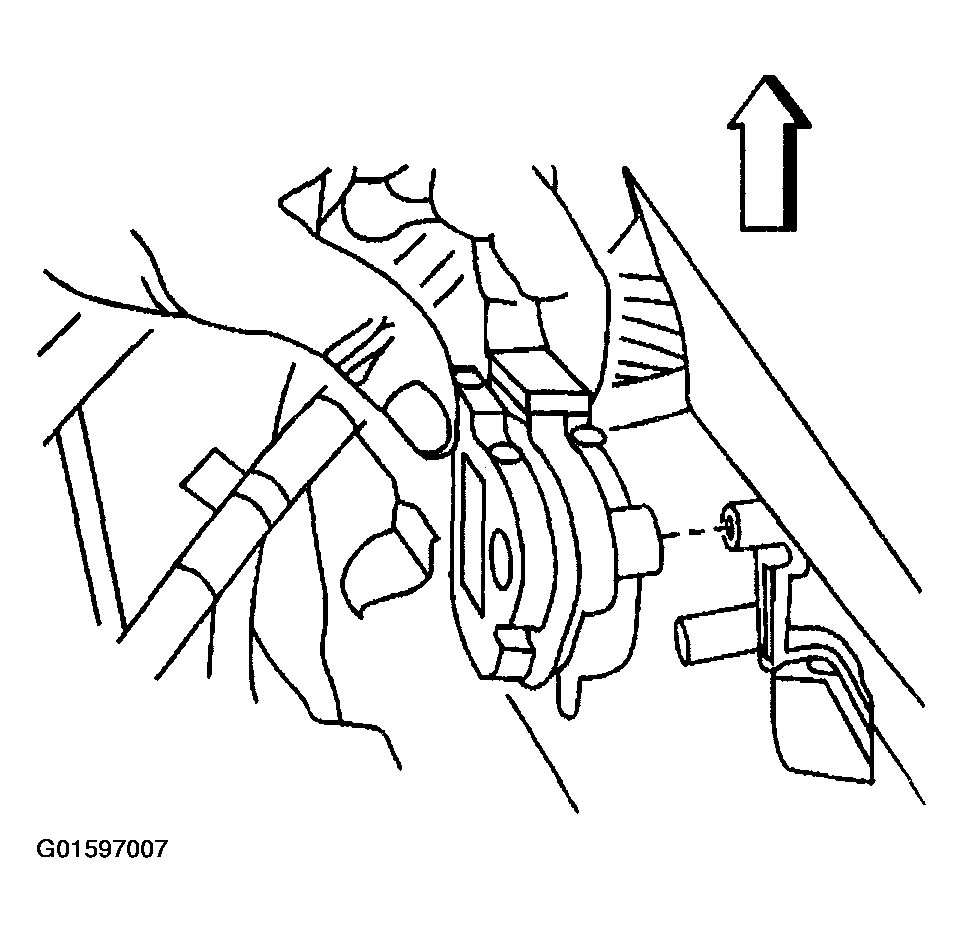

    Fig 2: Removing Rear Mode Actuator
    G01597007Courtesy of GENERAL MOTORS CORP.
