Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter trim panel. Refer to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.
  2. Disconnect the electrical connector from the mode actuator-auxiliary (1).
  3. Remove the mode actuator-auxiliary (1) from the HVAC module-auxiliary.
  4. Remove the retaining screws from the mode actuator-auxiliary.

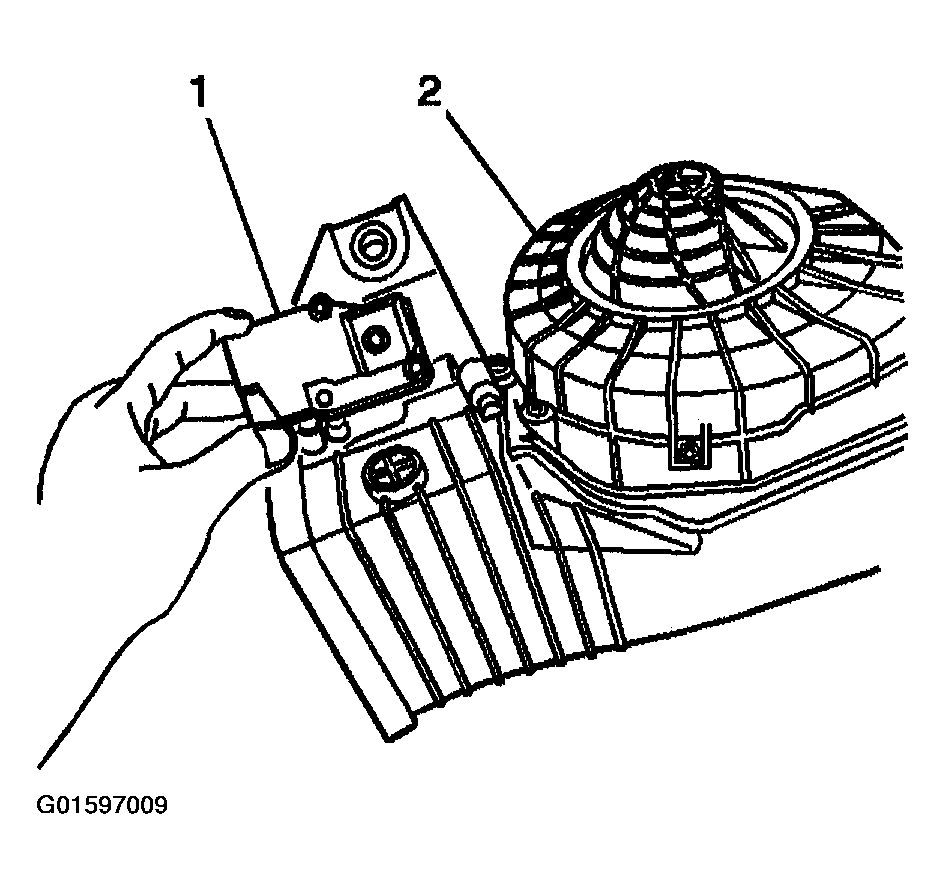

    Fig 1: Removing Mode Actuator-Auxiliary From HVAC Module-Auxiliary
    G01597009Courtesy of GENERAL MOTORS CORP.
